Automatic backwash valves for swimming pool filters, how do they work?
05.06.2023

Keeping a swimming pool clean and clear is an essential aspect of maintaining a healthy and enjoyable swimming environment. To achieve this, swimming pool filters play a vital role in removing debris, dirt, and contaminants from the water. Among the various components that contribute to the efficient operation of pool filters, automatic backwash valves are indispensable. In this article, we will explore how these valves work and their significance in maintaining the cleanliness of your swimming pool.

Understanding Automatic Backwash Valves:

Automatic backwash valves are devices integrated into swimming pool filtration systems that automate the process of cleaning the pool filter media. They are responsible for reversing the flow of water through the filter, dislodging accumulated dirt and debris, and flushing them out of the system. By utilizing these valves, pool owners can ensure optimal filter performance without the need for manual intervention.

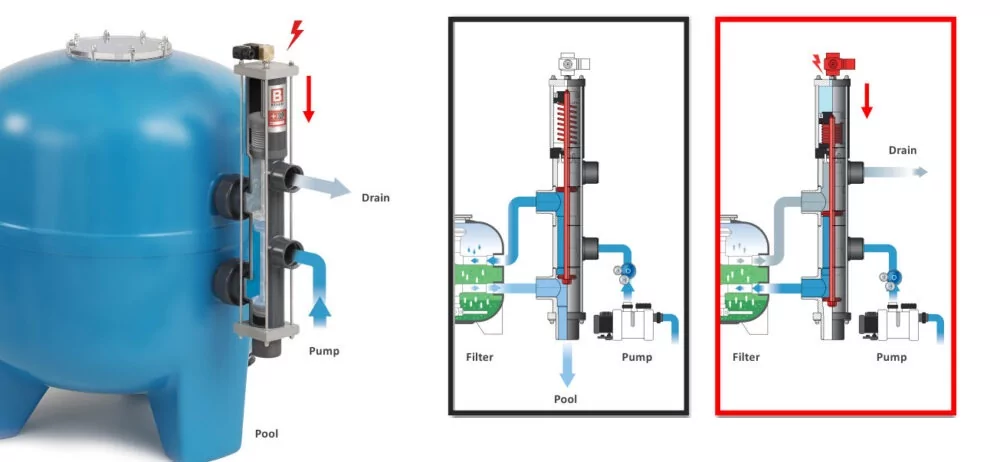

Backwash mechanism diagram

Automatic backwash Working Mechanism:

Filtration Phase: During the normal filtration phase, water from the swimming pool is pumped through the filter and passes through the filter media (e.g., sand, diatomaceous earth, or cartridge). The media effectively captures and removes impurities, allowing clean water to return to the pool. Backwash Phase: Over time, the filter media becomes clogged with trapped debris, which reduces its filtration efficiency. To address this, the automatic backwash valve initiates the backwash phase. This phase typically occurs based on a predetermined time schedule or when a certain pressure differential is reached. Valve Activation: Once the backwash phase is triggered, the automatic backwash valve diverts the flow of water in the reverse direction. This reversal causes the water to flow through the filter media in the opposite direction, dislodging the accumulated debris. Waste Discharge: As the water flows backward through the filter, the loosened debris and dirty water are directed out of the system through a waste line. This waste water is typically directed to a suitable drainage area, ensuring it does not contaminate the pool or surrounding environment. Rinse Phase: After the backwash phase, some residual debris may remain in the filter. To remove any remaining particulates and restore the filter media to its regular position, the automatic backwash valve initiates a rinse phase. This phase involves diverting water flow through the filter media again, but in the normal filtration direction. The rinsing process ensures that the filter media is thoroughly cleaned and ready for the next filtration cycle.

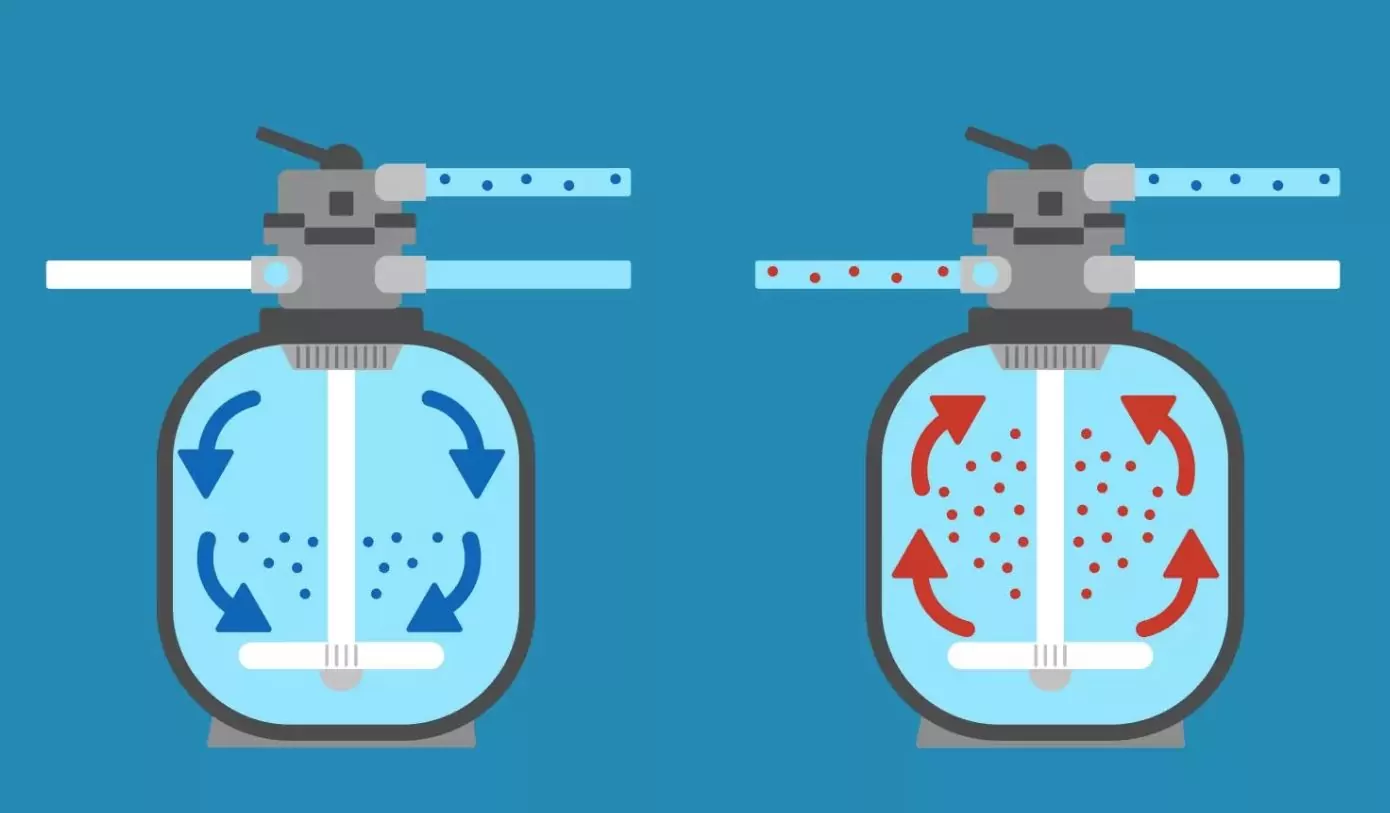

Filter backwash illustration

Automatic backwash valves are crucial components of swimming pool filtration systems.

Their ability to automate the backwashing process helps to maintain optimal filter performance by effectively removing accumulated dirt and debris. By incorporating these valves into your pool system, you can ensure that your pool remains clean and inviting, while minimizing the need for manual maintenance.

Regular maintenance and inspection of the automatic backwash valve are also essential to ensure its proper functioning and prolong its lifespan. With this knowledge, you can confidently embrace the convenience and efficiency that automatic backwash valves bring to your swimming pool maintenance routine.
