Aqua Industrial countercurrent system for pool 3 kW 64 m3/h 380 V, concrete/liner, stainless steel

Aqua Industrial countercurrent system for pool 3 kW 64 m3/h 380 V, concrete/liner, stainless steel

A counter current device is an excellent solution if pool dimensions doesn’t allow to swim through the whole length of the pool. Aqua Industrial countercurrent system provide the necessary, strong water stream for efficient swimming. The kit is suitable for installation both in the pool lined with liner, and with mosaics or tiles.

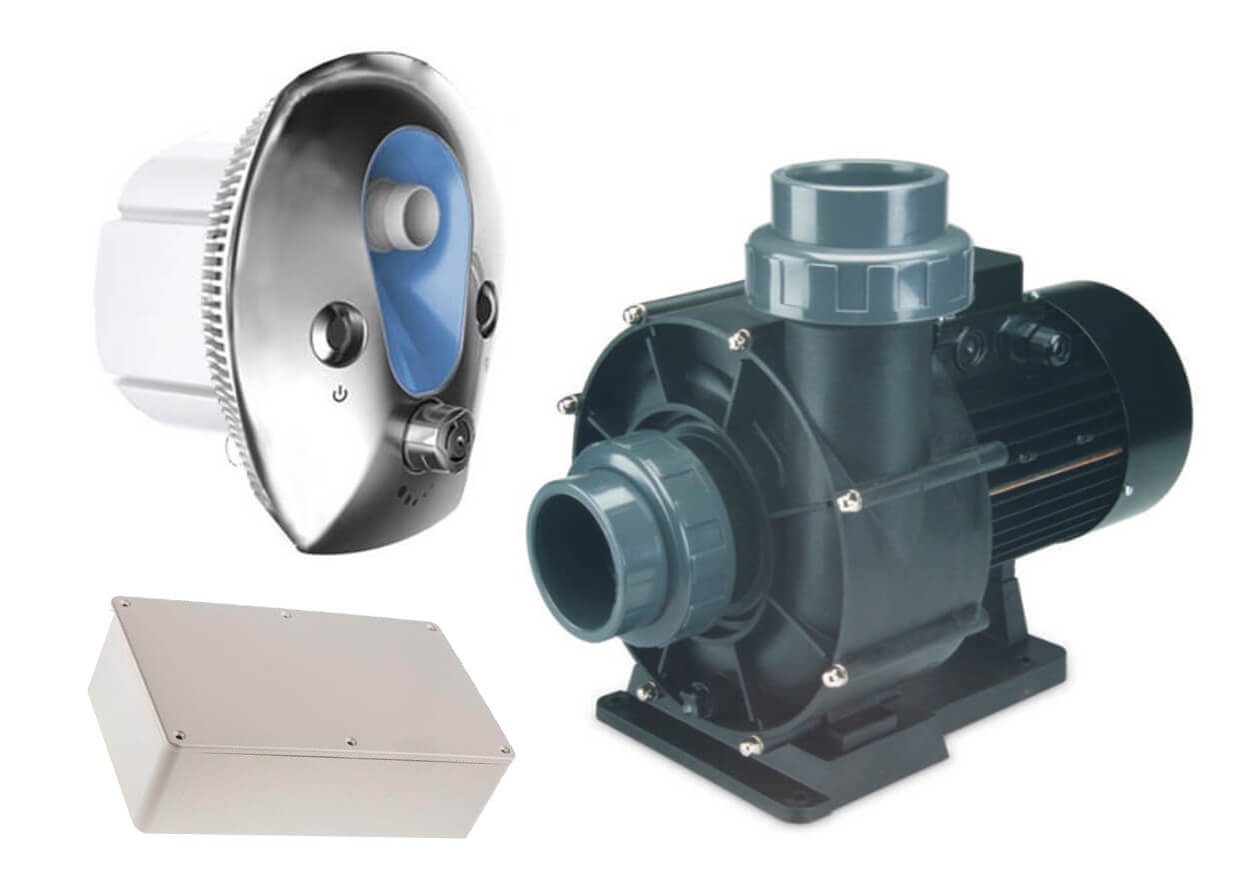

Aqua Industrial countercurrent system kit contains:

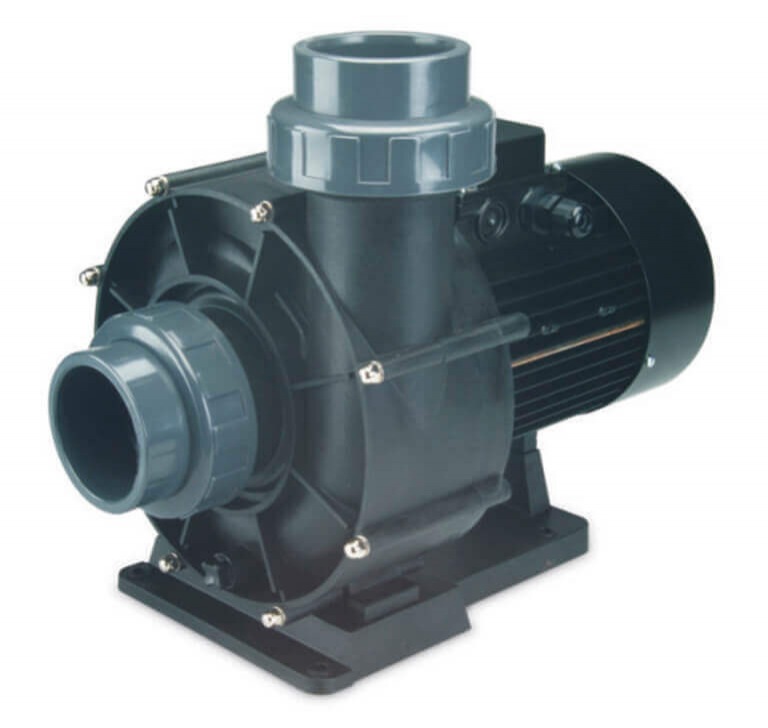

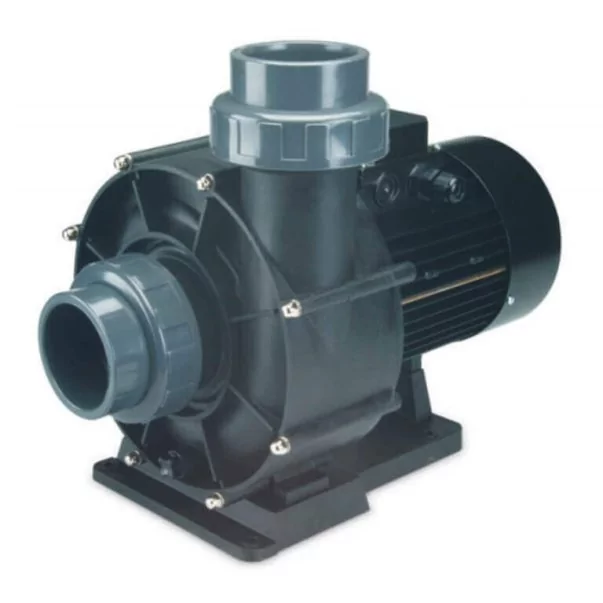

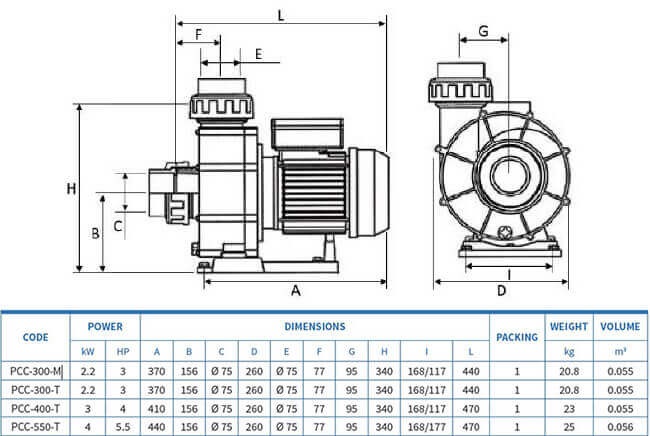

High capacity circulating pump PCC-300-T:

• Fibreglass reinforced polypropylene inflator casing resists pool chemicals to provide excellent sustainability.
• Noryl Turbine Assembly.
• AISI-316 rustproof spindle.

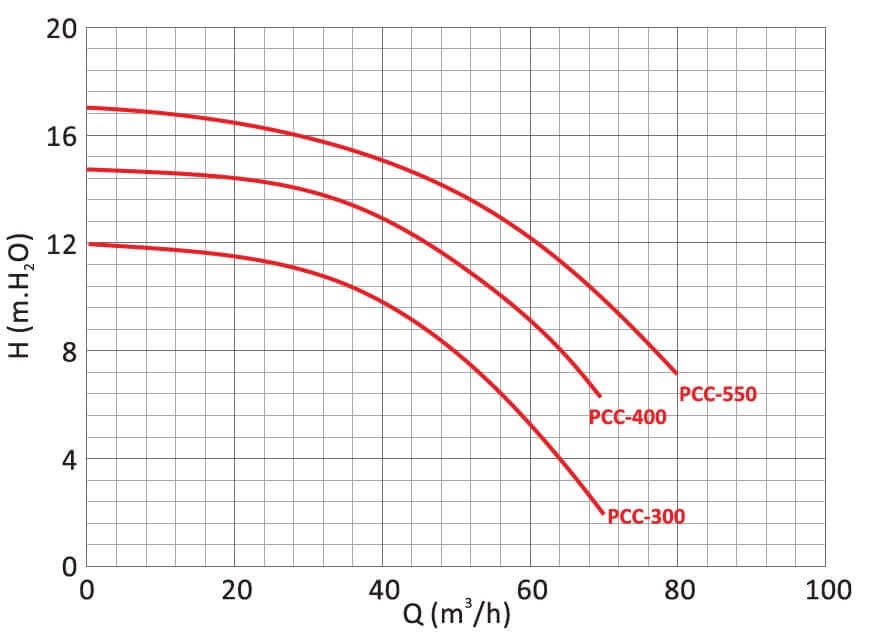

• Flow rate – 64 m3 per hour (h 8 m)

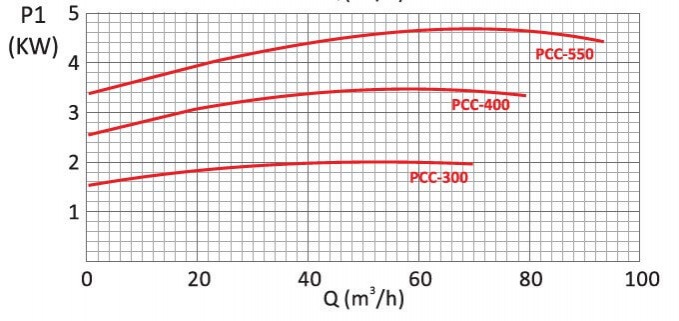

• Power consumption - 3 kW
• Connections – 75 mm. (unions are included)

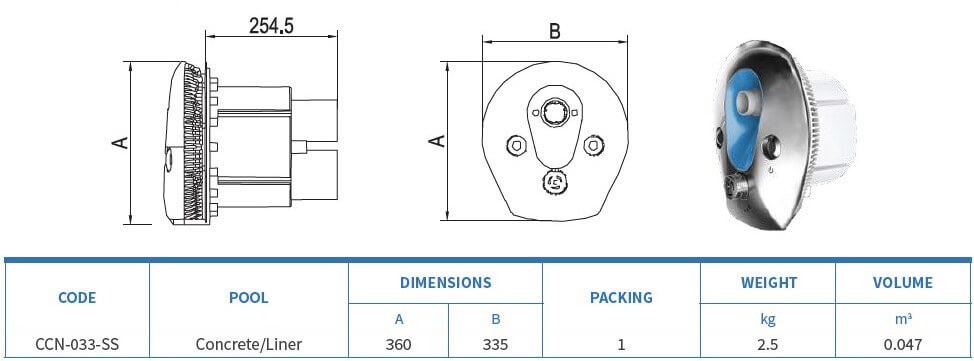

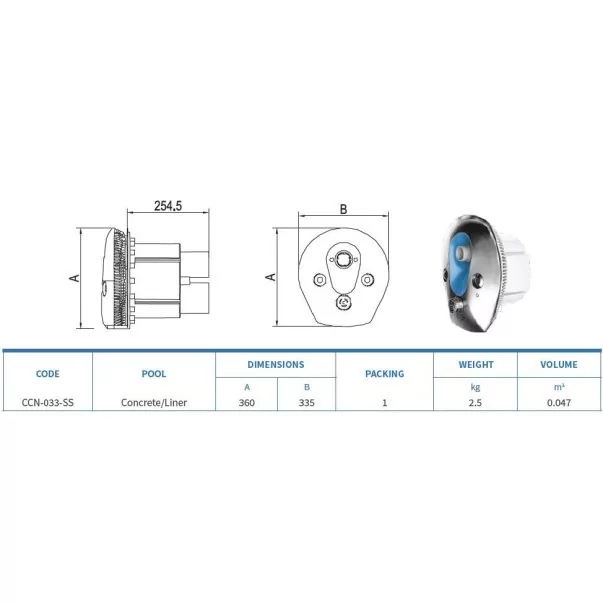

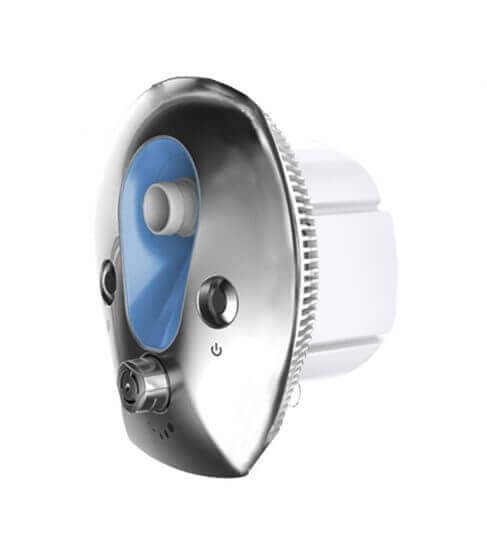

Counterflow nozzle CCN-033-SS made of stainless steel:

• Stainless steel rustproof nozzles are completely unchanged by UV and aggressive chemicals typically found in swimming pools
• Integrated pneumatic push-button to run the pump control box relay.
• Directional stream, venturi output
• Flow power regulator

Control box CCP-010-M

• Housed in a transparent waterproof case with pneumatic electro-knob.
• To provide total security when using the pump from water.
• Electrical protection required inclusive.

PVC valves, pipes and elbows – are not included.
