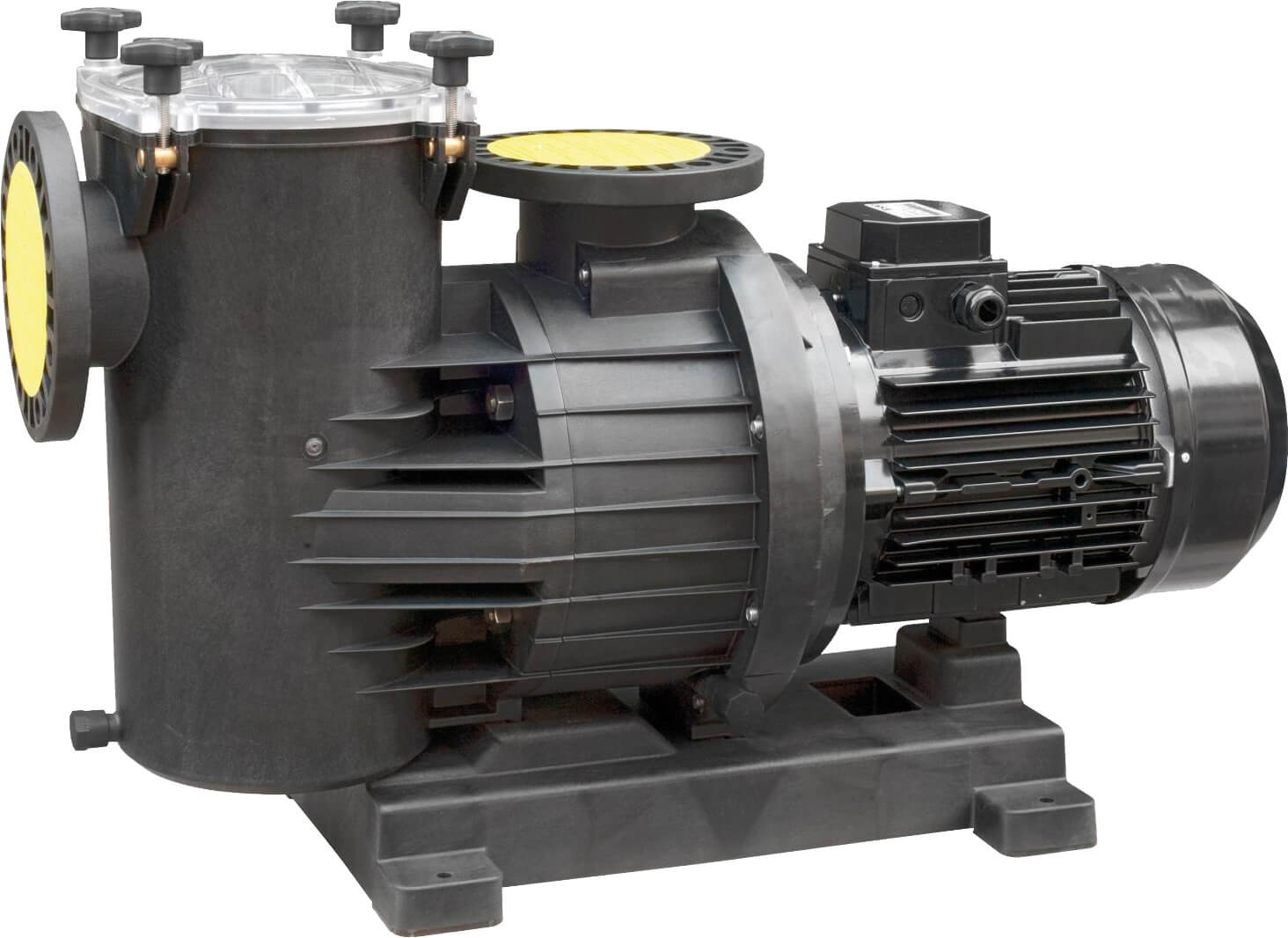

Aqua Industrial MAGNUS-4 550 104 m3/h 230-400 V pump for the swimming pool, noryl impeller, 5.5 HP

Aqua Industrial MAGNUS-4 550 104 m3/h 230-400 V pump for the swimming pool, noryl impeller

• Large-volume self-suction inflators available in 2 and 4-pole variants perfect for bigger percolation systems.
• Includes a large lateral vacuum clarifier with an incredible hydraulic capability guarantee great percolation efficiency.
• Thanks to its outstanding hydraulic efficiency, provides a very high filtering efficiency.
• Clarifier with polycarbonate lid for simple visualization of pre-filter cart contents.
• Includes standard connector flanges that are joined together with a wide base make the system particularly rugged.
• Clamps are not provided as standard (available on demand).
• Turbine comes in noryl.
• Pre-cleaner body, inflator body, volute, meter volute and polypropylene coating laden with glass fibre resistant to pool chemicals.
• Pre-filter basket made of poly-ethylene. Pre-cilter lid made of poly-carbonate with four-pin closure system.
• Mechanical gasket with ceramic and carbon. AISI - 316 rustproof (ready for seawater operation). Screw in AISI - 3116 rustproof. Shalt in AISI - 316 rustproof.
• Enclosed asynchronous engine has external ventilation. IP-55 coverage level. Class F isolation.
• Engine bearings lubricated for lifetime and selected to provide silent and long-lasting operation.

Technical details MAGNUS-4 550:

• Impeller in noryl
• Flow rate - 104 m3/h (H=8 m)
• Connection size – 110 mm
• Voltage – 230-400 V
• Power consumption – P1 5.54 kW/ P2 4 kW
• Max. water temp - +40 С
• Weight – 53.4 kg
• Noise level – 63 dB
