AstralPool Aster OC-1 filter with multiport side valve, Ø 600 mm, 14 m3/h

AstralPool Aster OC-1 filter with multiport side valve, Ø 600 mm, 14 m3/h

The filtration system of the pool eliminates the waste that microbiological organisms ingest. Sanitation, which maintains your pool looking pristine and inviting, is the second primary purpose of your pool system. Pool filtration is carried out to guarantee a healthy environment, uphold high standards of sanitation, and stop the spread of contagious aquatic diseases. The greatest pool filters can eliminate more than 99 percent of unwelcome particles, considerably enhancing the quality of the water.

Clean water is returned to the pool by reverse nozzles after the pump pumps water into the filter, which filters out dirt and debris. Pool filters maintain a clean, clear pool while also producing more chlorine and fostering a healthier swimming experience by eliminating dirt and debris from the water.

The AstralPool Aster OC-1 filter features a multiport side valve and is constructed from white laminated polyester and fiberglass materials. It is exceptionally dependable and requires little upkeep, so it works well in any pool. Its unique design complements its shape and white colors, making it extremely versatile. It has a quick-release cover for filter upkeep, a valve for switching operating modes, and a drain plug and filter stand in the lower part. The filter housing is made of laminated polyester and reinforced with fiberglass.

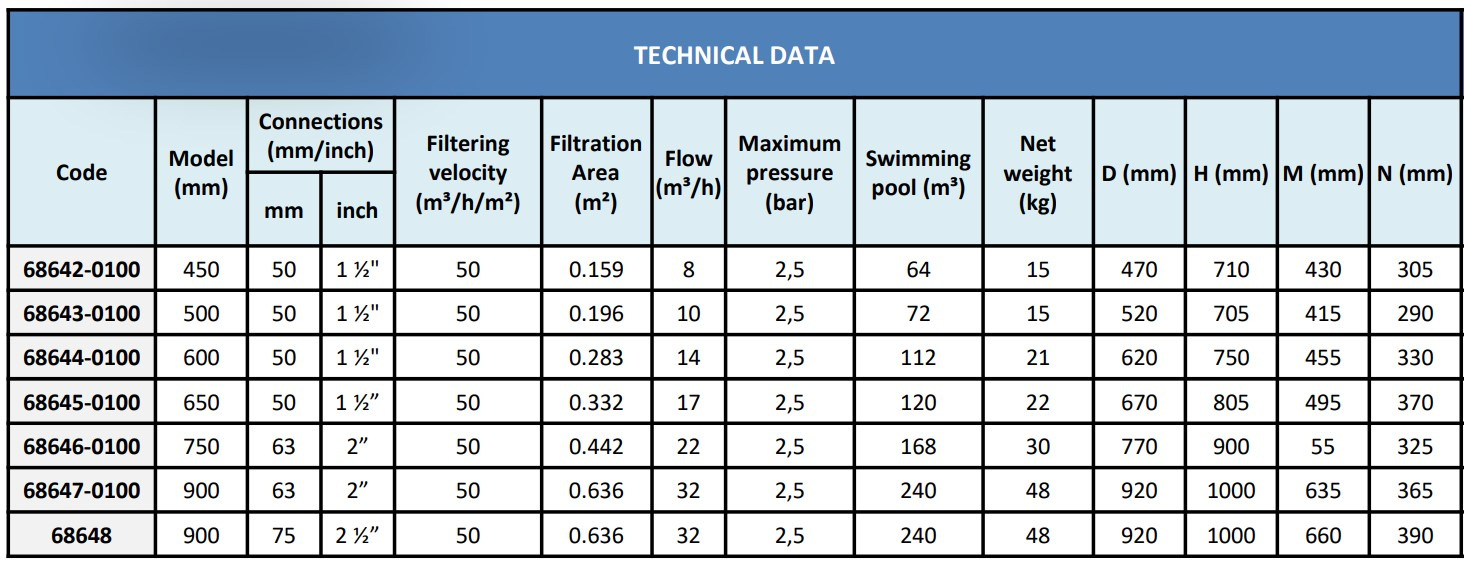

Product Specifications:

• Laminated polyester and fiberglass filter

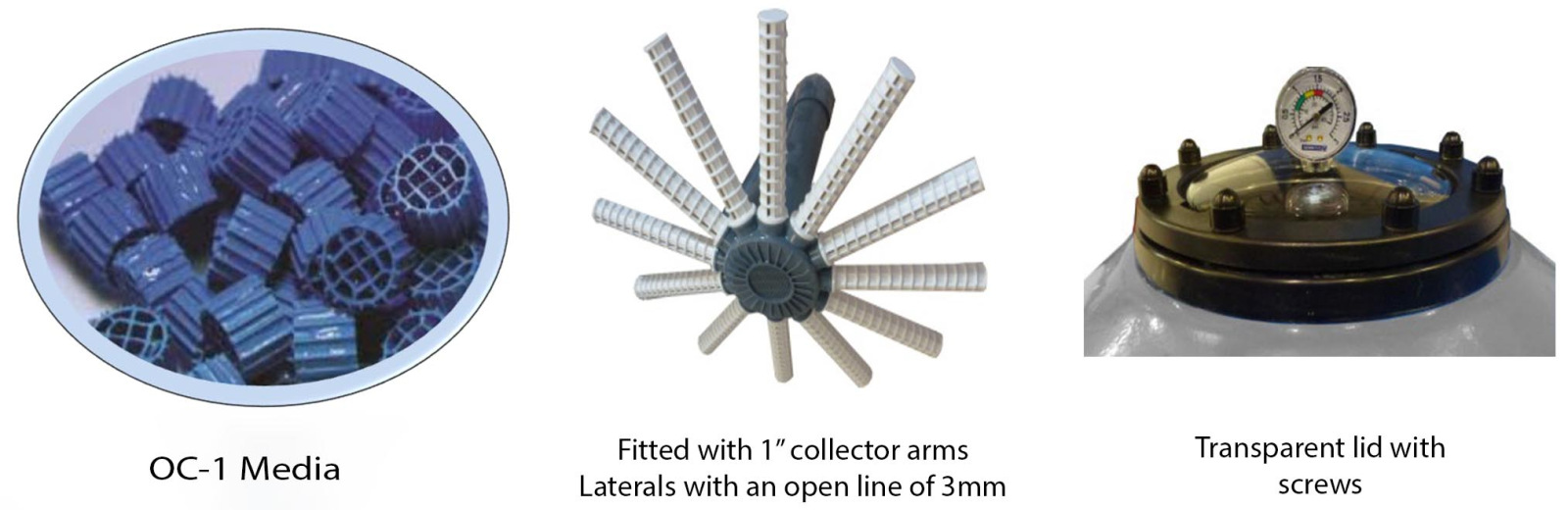

• Fitted for OC-1 media
• Color: White
• Connections: 1 ½ “
• Flow Rate: 14 m³/h
• Pool Volume: 112 m³
• ¼ “ air and water drain
• Transparent lid with screws
• Filtration speed: 50 m³/h/m²
• Working pressure: 2.5 Kg/cm²
• Side-mount 6-way multiport valve with filter, backwash, rinse, recirculate, waste and closed
• Internals with special laterals with an open line of 3 mm
• Rotating diffuser for an easy filled of the filtration media

Recommendations:

• Together with filtration, the pool water also needs to be chemically treated. Each procedure depends on the other.
• Pump preference should correspond to the flow rate capacity of the filter for optimum efficacy.
