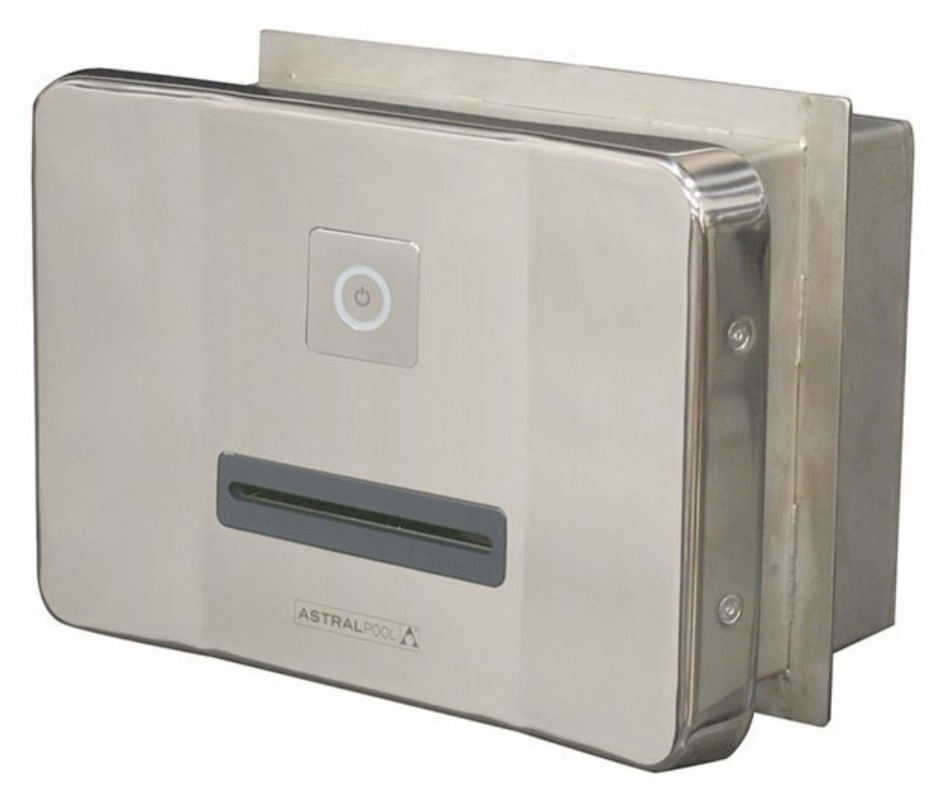

AstralPool Basic ND countercurrent kit for concrete pool, AISI – 316L

AstralPool Basic ND countercurrent kit for concrete pool, AISI – 316L

Every spa’s nozzle or jet is one of its most vital elements. While being modest, they are what make your spa experience unique. A strong water stream produced by jets gives off a pleasant massage that eases tension and helps muscles relax.

Countercurrent systems may have one or two nozzles, with double jet systems forming a wider jet that impacts shoulders to the left and right. This makes the float easier to hold in the stream and more stable.

AstralPool Basic ND countercurrent kit is manufactured in AISI-316 stainless steel polished in accordance with EN-13451 regulation. It has multi-directional water-air return nozzle and a suction capacity of 60 m3/h

Product Specifications:

• 316L S.S. Return inlet (air-water)
• 316L S.S. illuminated ON-OFF piezoelectric push button
• 316L S.S. Suction grille, 30 m3/h capacity (2 units)
• 5.5 HP pump. 3 – 400 V
• Flow rate of 50 m3/h.
• Power regulator panel.
• Fluid's maximum speed: output ECC = 12 m/s, 1 m = 2,4 m/s, 1,5 m = 1,7 m/s, and 2 m = 1,5 m/s

Recommendations:

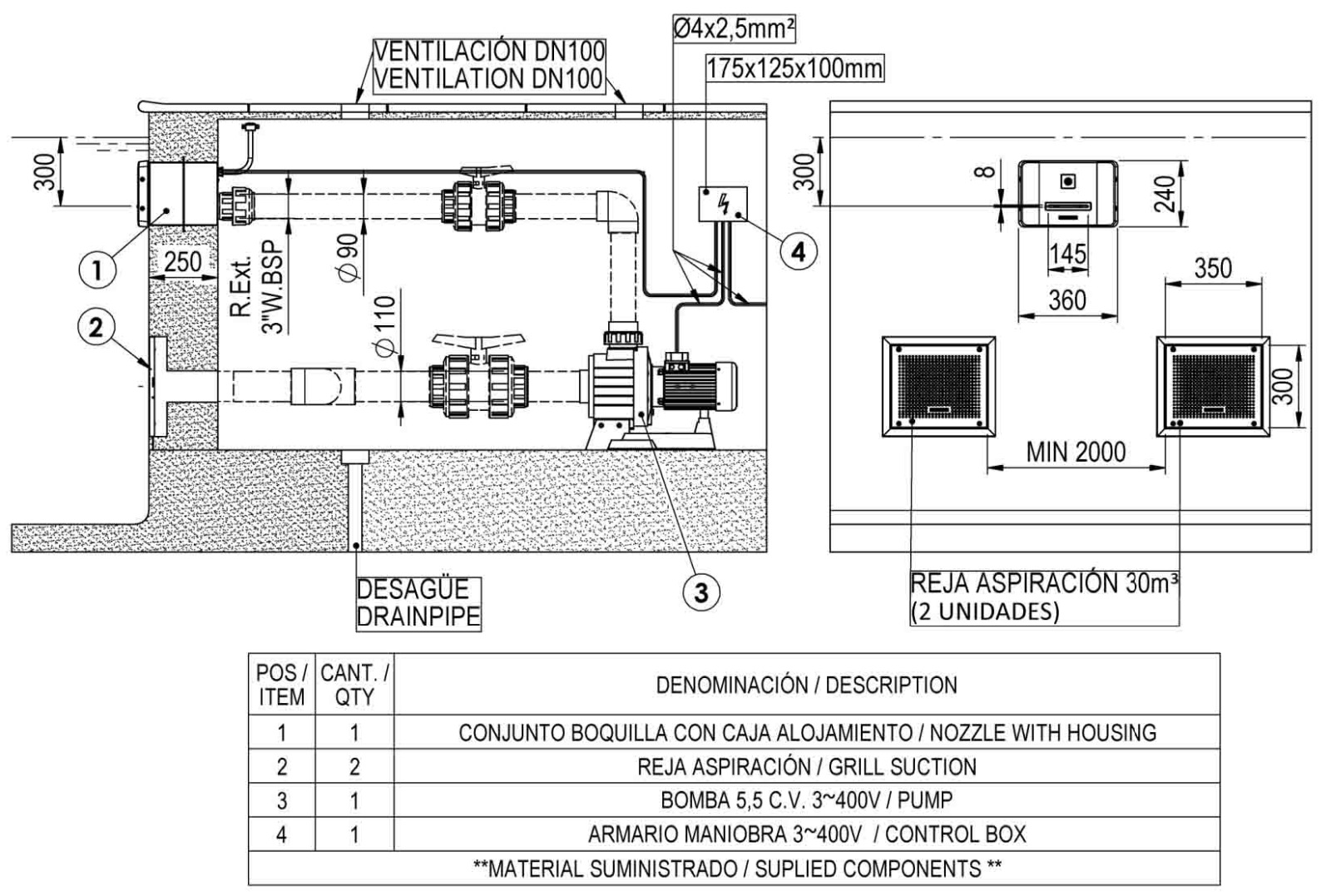

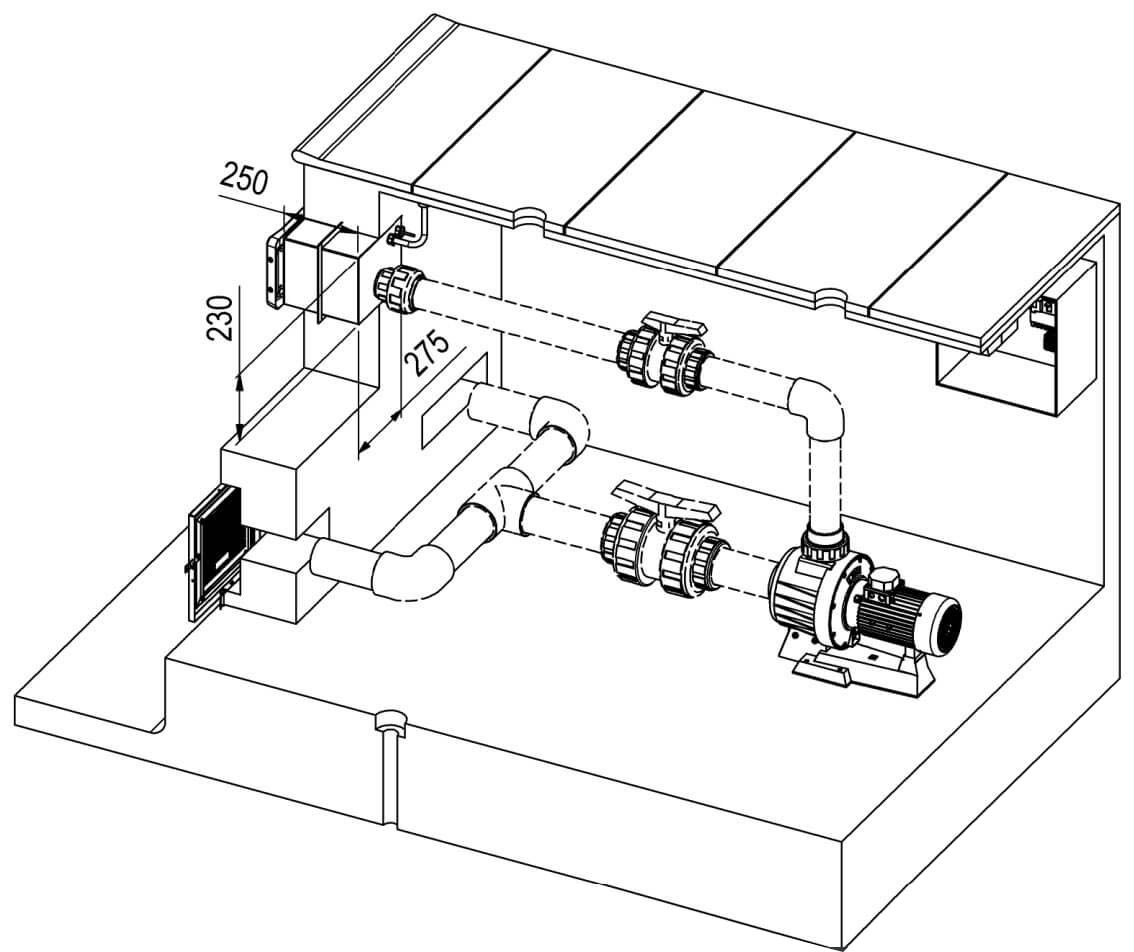

• It is essential that a pump is installed below water, in an accessible place, so that it can be controlled and maintained easily.
• The placement of this device between the housing case and the pump must not be more than 20 meters.
• A handrail can be an optional accessory, but it is essential to your personal safety.
