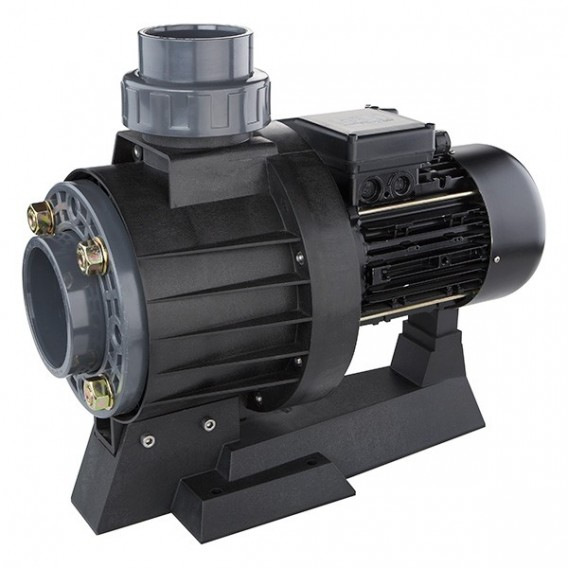

AstralPool CCIV 200M 1.5 kW, 28 m3/h pump for water attractions and fountains, 2 HP Photo №1
AstralPool CCIV 200M 1.5 kW, 28 m3/h pump for water attractions and fountains, 2 HP Photo №2
AstralPool CCIV 200M 1.5 kW, 28 m3/h pump for water attractions and fountains, 2 HP Photo №3
Code: 28566

AstralPool CCIV 200M 1.5 kW, 28 m3/h pump for water attractions and fountains, 2 HP

Code: 28566
AstralPool
Pool lining
universal
Flow rate, m3/h
23
Power, kW
1,5
Phase
single

AstralPool CCIV 200M 1.5 kW, 28 m3/h pump for water attractions and fountains

With its completely integrated countercurrent solutions, AstralPool enables users to utilize a simple-to-install system. Due to its compact form and simply adjustable equipment, users can facilitate installation even in a short space.

The AstralPool Horizontal Drive pump is specifically made for use with backdraft equipment for swimming pools. It has a dual-insulated motor shaft and is made out of plastic. The suction and discharge connections of the pump should be larger to provide the higher flow performance needed for this kind of machinery.
Water-contacting metal parts are made of stainless steel AISI-316.

Product Specifications

  • Manufactured from plastic.
  • Motor shaft with dual insulation.
  • 1,5 kW power
  • Single phase 230 V 50 H
  • Max water temp 35° Celsius
  • IP-55 Motor Protection.

Required to purchase a separate accessory for the assembly, as it is not included with the kit:

  • PVC valve Ø 63 mm (code 02458)
  • PVC elbow 90 °C Ø 63 mm (code 01717)
  • Conical reduction Ø 90-75 x 63 mm (code 01993)
  • PVC elbow 90 °C Ø 75 mm (code 01718)
  • PVC valve Ø 75 mm (code 02459)
  • Conical reduction Ø 110-90 x 75 mm (code 01993)

Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
Brand
AstralPool
Type
pump
Pool lining
universal
Mounting
integrated unit
Flow rate, m3/h
23
Power, kW
1,5
Phase
single
Nozzle material
ABS plastic
Connections, mm
110 / 90
