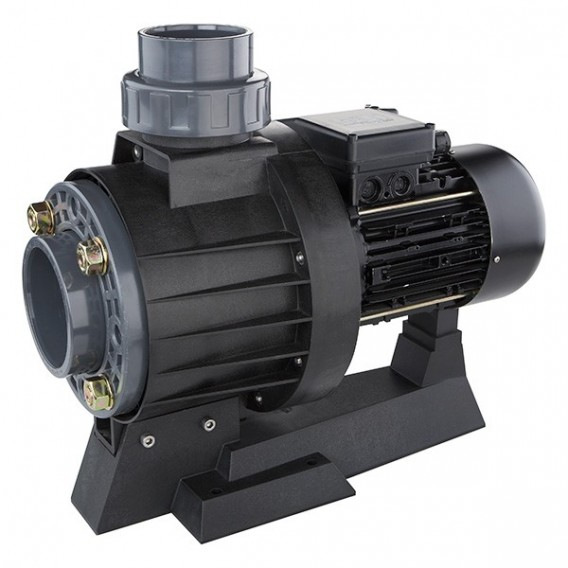

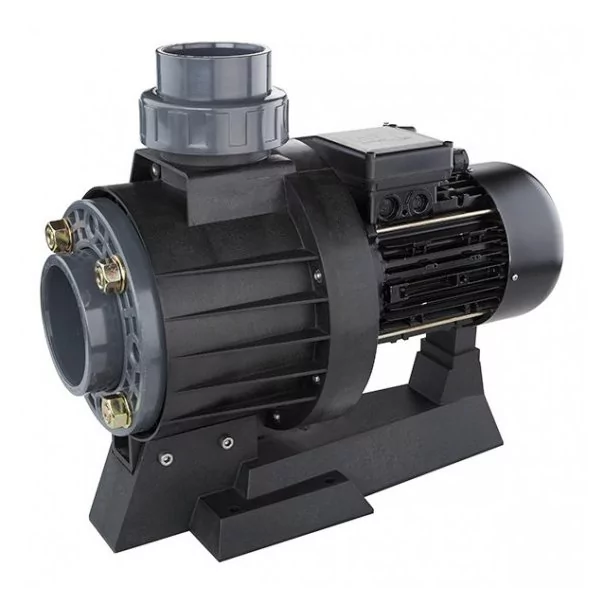

AstralPool CCIV 450T 3,3 kW, 62 m3/h pump for water attractions and fountains, 4.5 HP

AstralPool CCIV 450T 3,3 kW, 62 m3/h pump for water attractions and fountains

With its completely integrated countercurrent solutions, AstralPool enables users to utilize a simple-to-install system. Due to its compact form and simply adjustable equipment, users can facilitate installation even in a short space.

The AstralPool Horizontal Drive pump is specifically made for use with backdraft equipment for swimming pools. It has a dual-insulated motor shaft and is made out of plastic. The suction and discharge connections of the pump should be larger to provide the higher flow performance needed for this kind of machinery.

All the pump's water-contact metal parts are constructed of AISI-316 stainless steel.

Products Specifications:

• Manufactured from plastic.
• Motor shaft with dual insulation.
• 3,3 kW power
• Tri-phase 230 V 50 H
• Max water temp 35° Celsius
• IP-54 Motor Protection.

Recommendations:

Required to purchase a separate accessory for the assembly, as it is not included with the kit:

• PVC valve Ø 63 mm (code 02458)
• PVC elbow 90 °C Ø 63 mm (code 01717)
• Conical reduction Ø 90-75 x 63 mm (code 01993)
• PVC elbow 90 °C Ø 75 mm (code 01718)
• PVC valve Ø 75 mm (code 02459)
• Conical reduction Ø 110-90 x 75 mm (code 01993)
