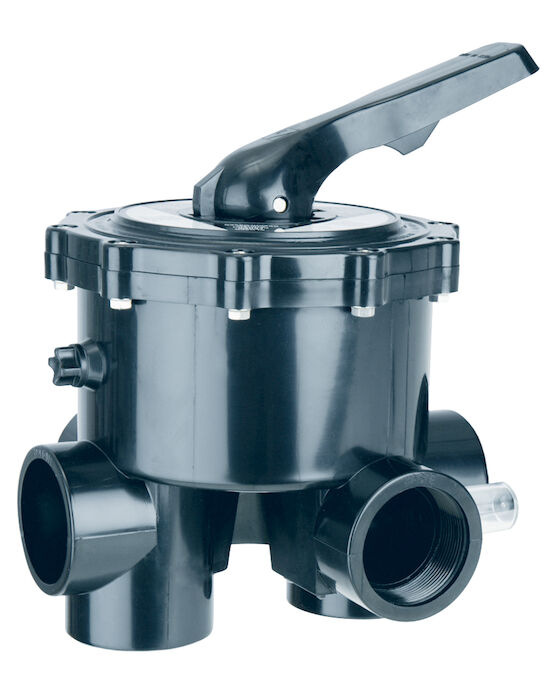

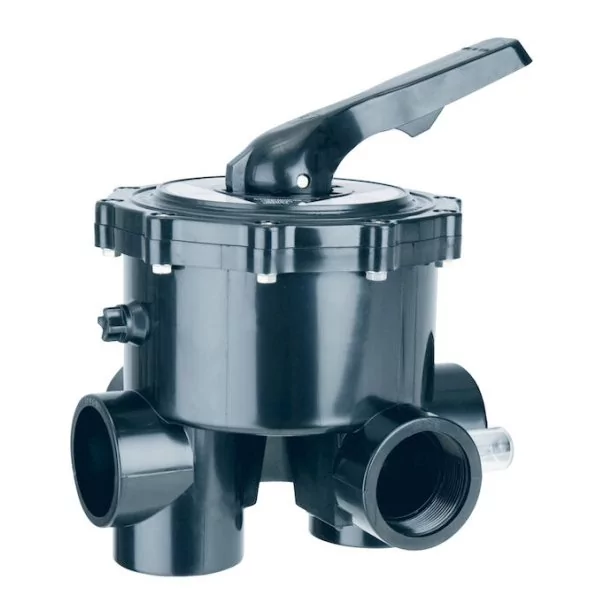

AstralPool Classic multiport valve, Configuration 3, 2"

AstralPool Classic multiport valve, Configuration 3, 2"

A classic multiport valve is an essential component of any pool or spa filtration system. It is a manual valve that is used to control the flow of water in and out of the filter. The valve has multiple ports or channels, which can be switched or rotated to allow water to flow in different directions.

The design of the multiport valve is both functional and practical. It is made of high-quality materials and is designed to offer a wide range of connection possibilities to any installation. The valve ensures perfect water-tightness, preventing leaks or water loss, and comfortable handling for easy use.

The multiport valve has six channels, each of which carries out different functions in an hydraulic circuit.

Functions of AstralPool Classic multiport valve:

• Filtration function is used to filter the water from the pool or spa, removing any dirt or debris.
• Backwashing function is used to clean the filter by reversing the flow of water, flushing out any accumulated dirt or debris.
• Rinse function is used to flush out any remaining dirt or debris after backwashing.
• Waste function is used to direct water to a waste line, bypassing the filter, and removing any debris or dirt from the system.
• Recirculation function is used to circulate water without filtering it.
• Closed function is used to shut off the valve completely, preventing any water from flowing through it.

In summary, the classic multiport valve is an essential component of any pool or spa filtration system. Its functional design offers a wide range of possibilities for connection to any installation, ensuring perfect water-tightness and comfortable handling. With its six channels, the valve can carry out different functions in an hydraulic circuit, making it a versatile and indispensable component for any pool or spa owner.
