AstralPool swimming pool filtration kit, D650 mm, 11 m3/h, 0,82 kW with massage pump and water exchanger

The spa water is constantly being polluted by dirt from the air, the weather, the bathers, and the surrounding area, which makes the water muddy and provides food for bacteria and algae. As such, the filtration system must be used to remove them.

The filter keeps the water clear and sparkling while collecting the residual dirt and foreign substances. It is essential to use the correct filter for your spa because it has to operate in optimal circumstances and filter the entire spa volume at least once every day.

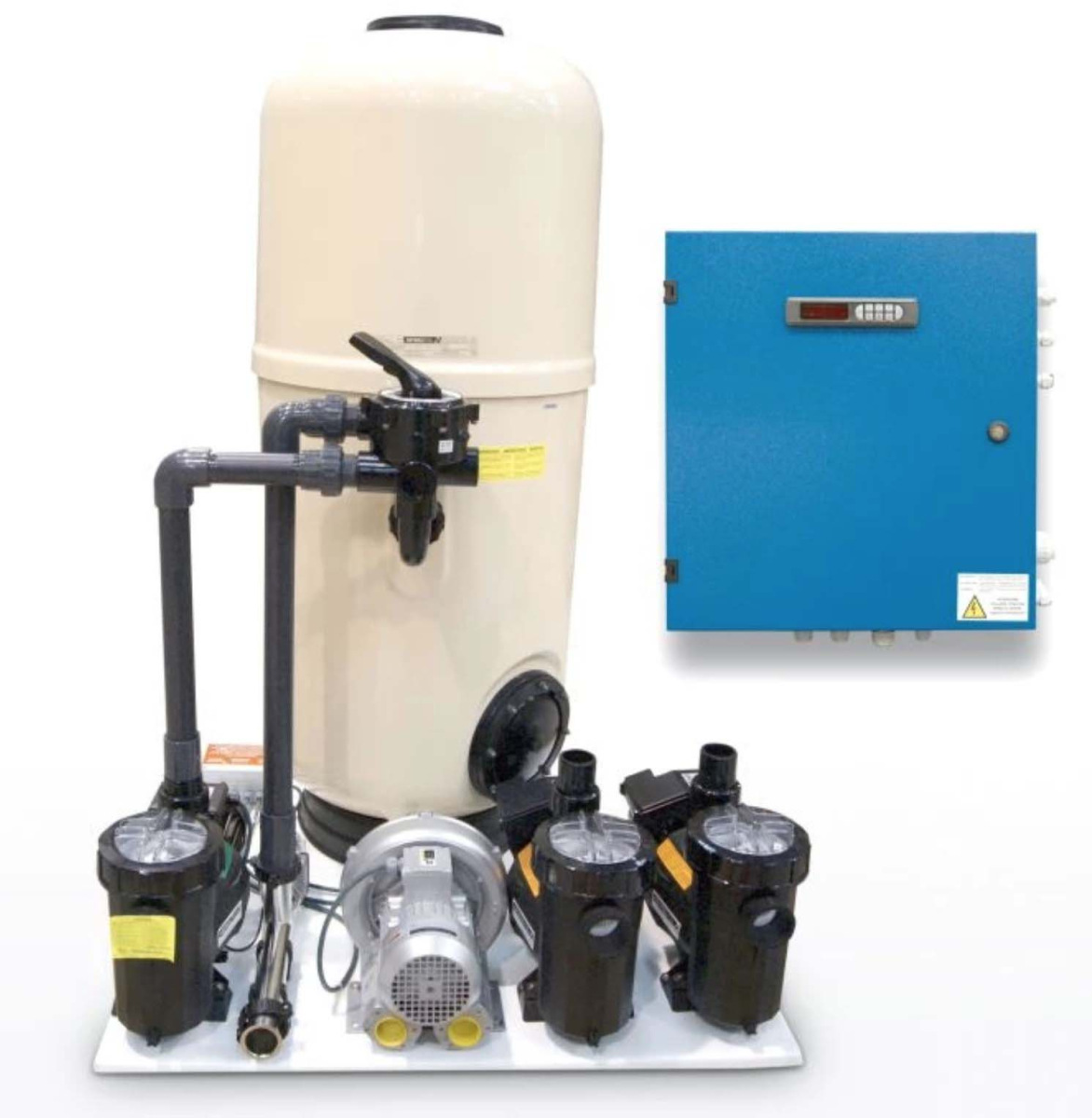

AstralPool filtration kit for spa is pre-assembled for filtration, heating and massage. This is intended for the Mirage 40 hot tub, Formentera, Coliseum, and Olympia models.

Product Specifications:

• Filter: Ø 650
• Filtration pump: 0,82 kW
• Massage pump: 2 x 1.81 kW 1 x 2.70 kW
• Air blower 1.3 kW
• Average heater power is 6kW.
• Buttons: piezoelectric
• Power requirement low amp (W): 18.1 A
• Voltage: 400V III + N
• Ozonator: optional
• Aut. dosage + cotrol pH and chlorine: optional
• Water / water heat exchanger 20 kW: included

Recommendation:

• Requires a separate purchase of connection pipes of pump to filter and filter to heater

The equipment must function in pool water that has the following elements:

• Water temperature: Between 35 - 36 °C
• pH Level: Between 6.8 and 7.6
• Free Chlorine: < 3 mg/l >

To ensure a proper management of the electronic signals, the distance between the components should not exceed the following:

• Electronic push buttons - Electronic Board : 15 m
• Spa-Hydraulic kit (Pumps) : 7 m
• Balance Tank (Capacitive level sensors) - Electronic Board: 15 m
• Heater (Temperature sensor) - Electronic Board : 6 m
• Solenoid Valve - Electronic Board : 20 m
