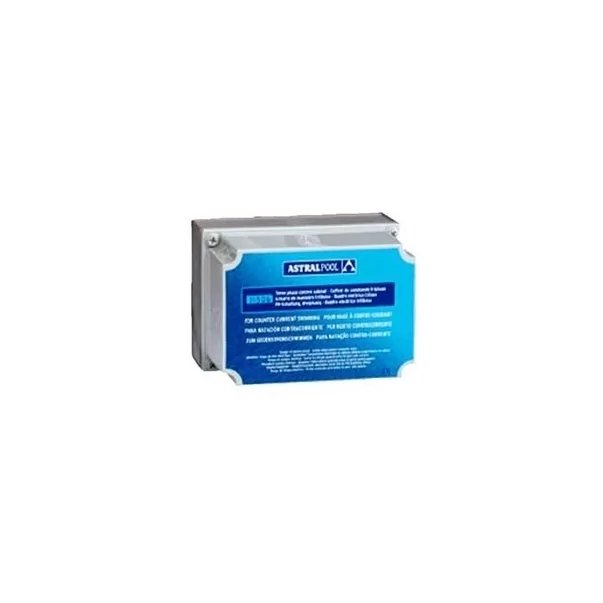

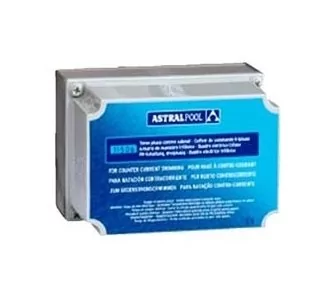

AstralPool countercurrent control box, single model, 1,5 kW

AstralPool countercurrent control box, single model, 1,5 kW

With its completely integrated countercurrent solutions, AstralPool enables users to utilize a simple-to-install system. Due to its compact form and simply adjustable equipment, users can facilitate installation even in a short space.

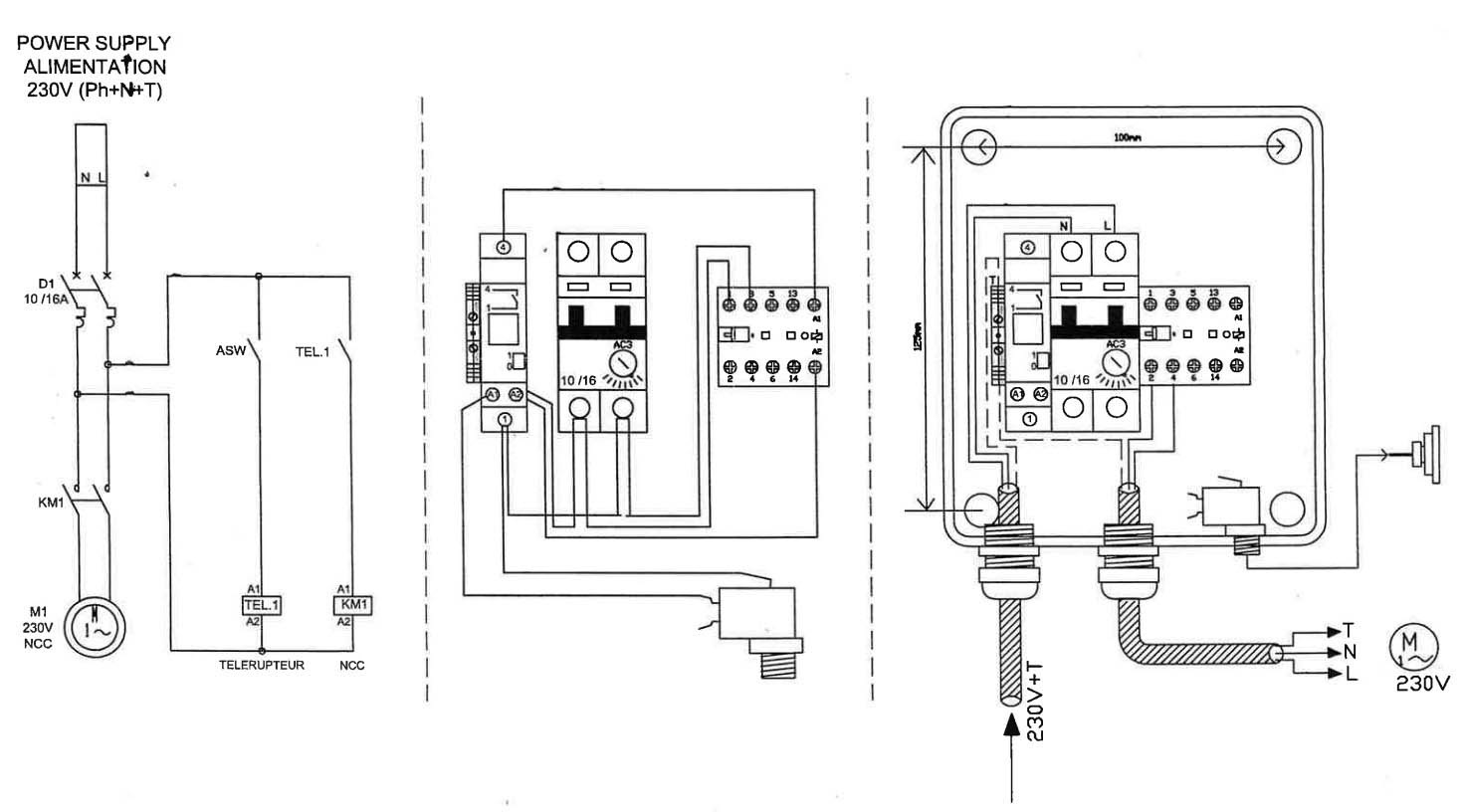

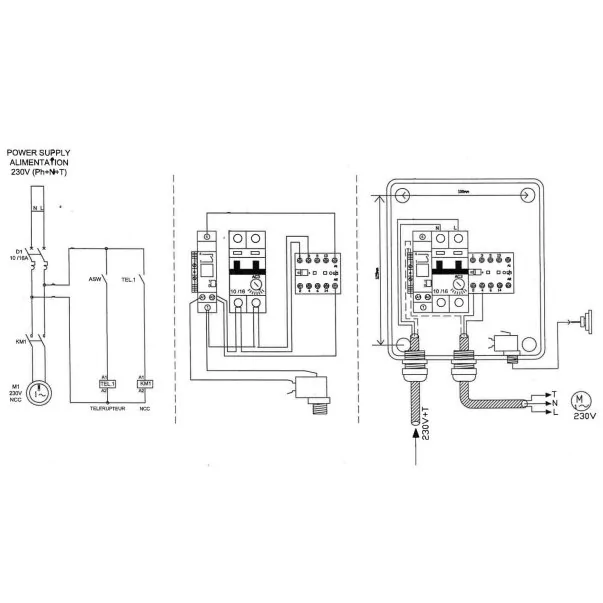

The AstralPool countercurrent control boxes is specifically created as electro-pneumatic command box for the counter-current swimming device. The pump is operated through the nozzle assembly's knobs.

Product Specifications:

• Electro-pneumatic control
• Controlled through nozzle assembly
• 1,5 kW power
• Single phase 230 V 50 H
• Thermal relay Remote control switch

Recommendations:

• It is essential that a pump is installed below water, in an accessible place, so that it can be controlled and maintained easily.
• The placement of this device between the housing case and the pump must not be more than 20 meters.
