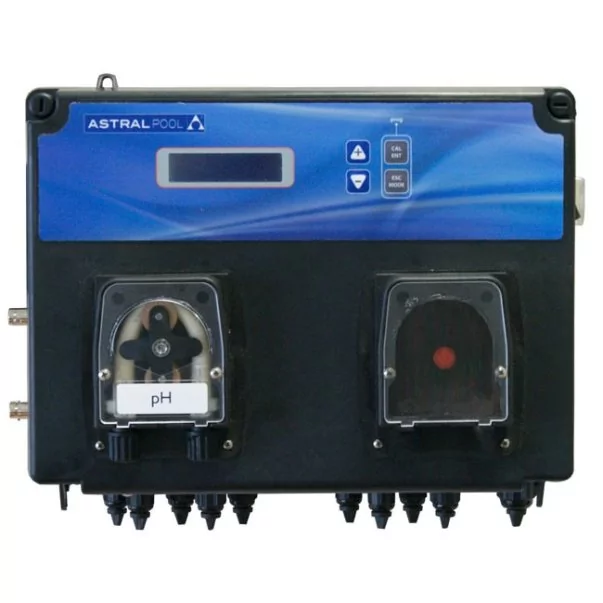

AstralPool double pH-EV plus dosing pump with PT100 sensor

The AstralPool SPA pH-EV Basic Control Plus is a compact and efficient dosing device designed specifically for effortless control of pH and ORP levels in home spas and pools.

It offers convenient automation and is compatible with both salt chlorinators and chlorine tablets. With a relay output, it enables the chlorinator while effectively regulating pH levels using a peristaltic pump.

The device comes complete with all the necessary components for easy installation.

Versatile control options depending on the connected device, allowing for ON-OFF or proportional settings, which are perfect for solenoid valves.

The AstralPool SPA pH-EV Basic Control Plus ensures a hassle-free and precise pH and ORP control system, making it an essential addition to any residential pool or spa.

Technical features of double pH-EV plus dosing pump with PT100 sensor

The AstralPool double pH-EV plus dosing pump with PT100 sensor offers a range of technical features for automatic pH or redox control and dosing.

Dosing pump includes Pt100 temperature readings

• Measurement Range: It can measure pH levels within the range of 0 to 14 and redox (ORP) levels within the range of 0 to 100 mV.
• Installation Kit: The control system includes a comprehensive installation kit that consists of a pH and redox sensor, sensor holder, standard solutions for calibration, suction and blow pipes, and suction and blow-pipe fittings.
• Durable Casing: The system is housed in an ABS casing that provides protection with an IP65 rating. This ensures resistance against dust and water ingress.
• Digital Screen: The control unit features a digital screen that displays pH, redox (ORP), and temperature readings (optional Pt100). This allows for easy monitoring and analysis of water conditions.
• Remote On-Off Input: The system has a remote on-off input that operates on 230 VAC. This feature keeps the display illuminated during calibration and programming processes.
• Chemical Product Level Inlet: The control unit includes a chemical product level inlet, which enables the introduction of chemicals for pH or redox adjustment.
• Alarm Relay: It is equipped with an alarm relay that can be configured to provide notifications or alerts based on specific conditions or events.
