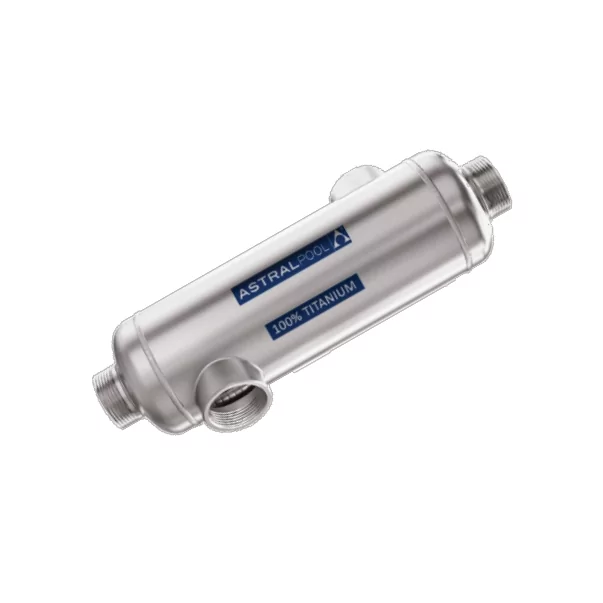

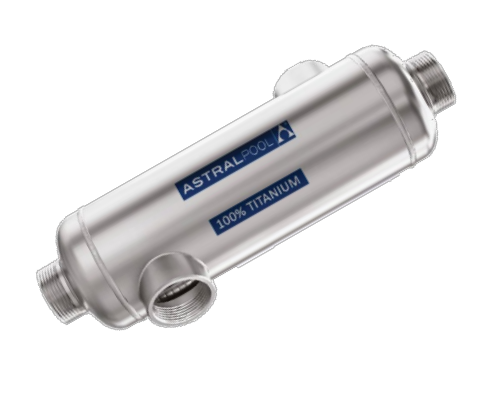

AstralPool EVO titanium waterheat exchanger for pool, 140 kW
Description
Tech Specs
Reviews (1)
Shipping
Easy Returns

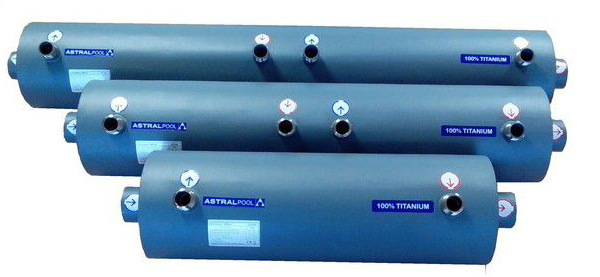

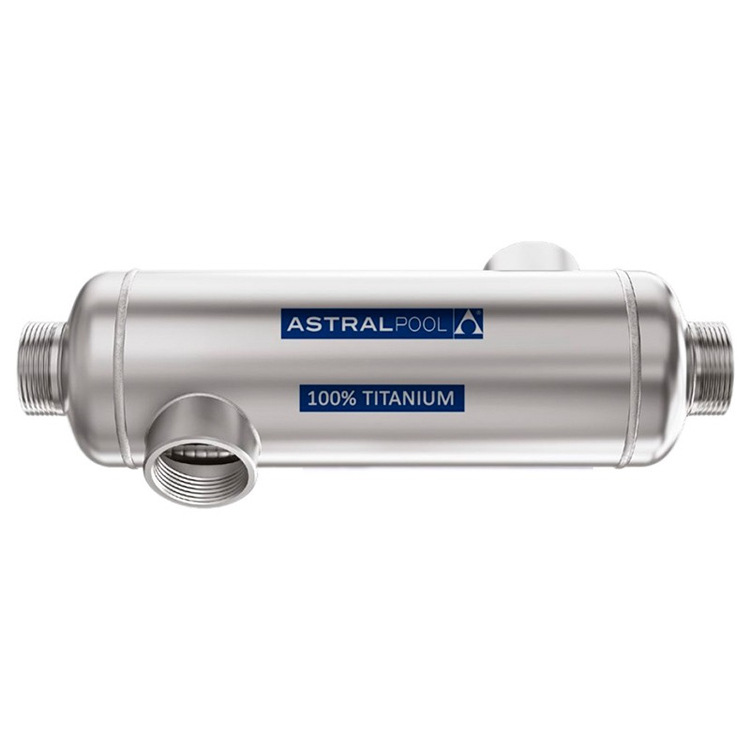

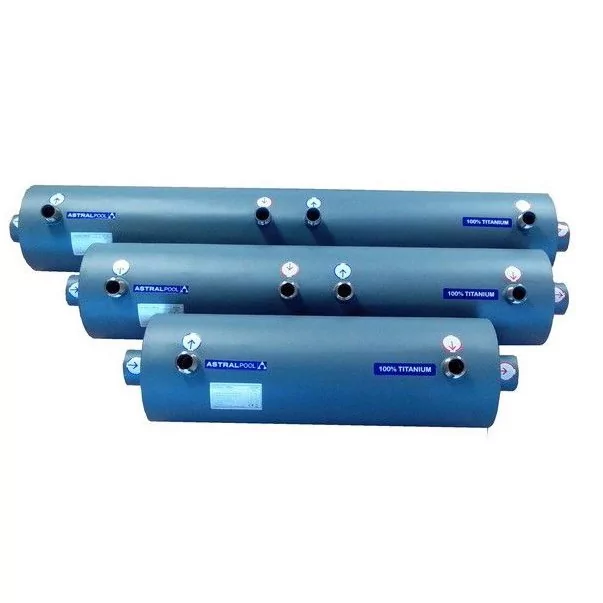

AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №1
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №2
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №3
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №4
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №5
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №6
AstralPool EVO titanium waterheat exchanger for pool, 140 kW Photo №7
Code: 71611

AstralPool EVO titanium waterheat exchanger for pool, 140 kW

Code: 71611
AstralPool
Power, kW
140
Recommended pool volume, m3
20

AstralPool EVO titanium waterheat exchanger, 140 kW

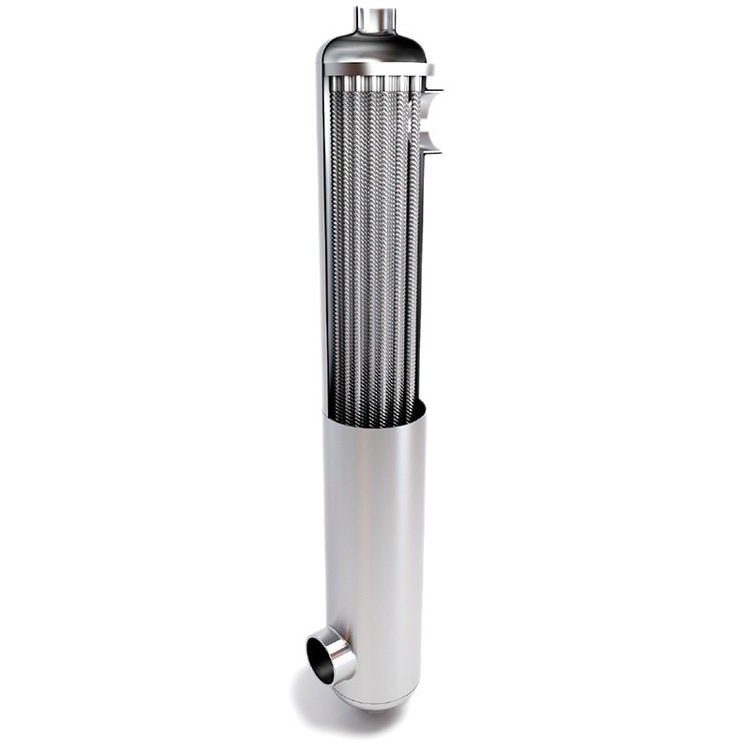

A heat exchanger enables the transfer of heat from one gas or liquid to another gas or liquid without the requirement for direct contact or mixing between the two fluids. Heat exchangers' basic purpose is to transfer heat without also transferring the fluid that carries that heat.

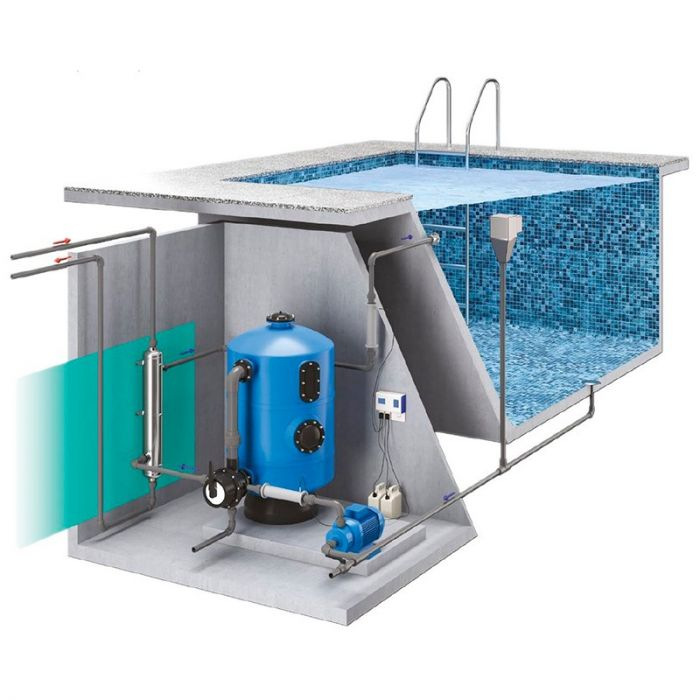

Pool water is heated by heat exchangers that use hot water from boilers or solar-heated water circuits. It is the transfer of heat between the utilized media and the exchanger materials that is known as conduction.

AstralPool waterheat exchanger are suitable for raising the water temperature in swimming pools and SPAS. The primary circuit, which is a warm area, and the secondary circuit, which is a cold area that we want to warm, are able to exchange heat.

Product specifications:

  • Power: 140kW
  • Heater: 7,0 m3h
  • Loss of water pressure from boiler: 0.040 bar
  • Swimming pool m3h: 20
  • Pool connection: G 1 ½ “
  • Pool water pressure dropping: 0.316

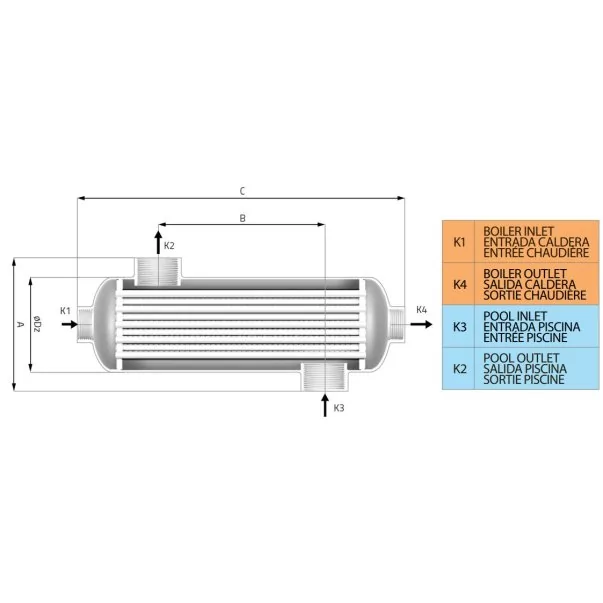

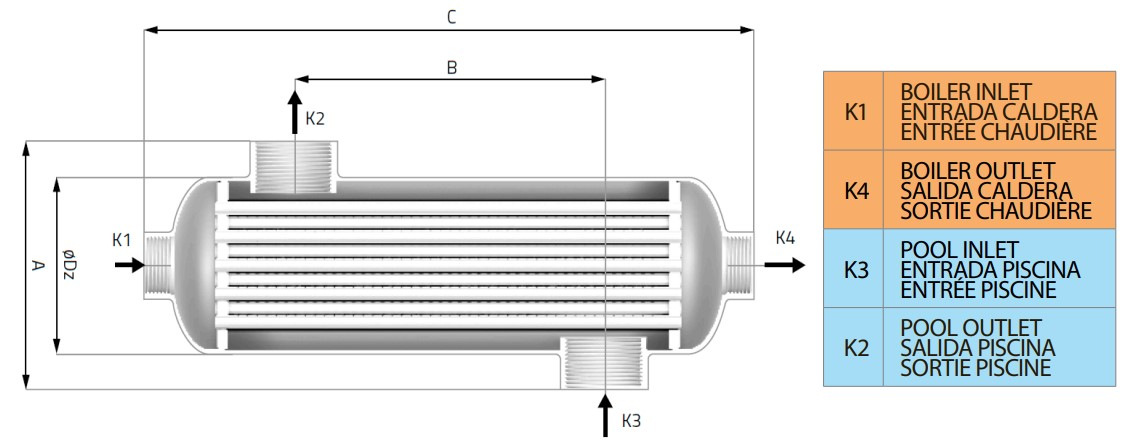

  • Dimension: 457 x 270

Exchanger Materials:

  • Secondary Titanium Housing for Pool Water
  • Titanium coil (primary, water for boiler)
  • Primary working pressure: 10 bar
  • Secondary working pressure: 3 bar

On my indirect water tank, I installed 2 of these in series because I have a radiant heating system. They achieved far more than I had anticipated with the outside wood boiler. Due to the well water, I purchased these because I did not want to utilize plate heat exchangers for fear of them becoming clogged with well debris. They were excellent value.
Jimmy 03.05.2023
Response
Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
Brand
AstralPool
Type
Pool heat exchanger
Power, kW
140
Maximum flow rate, m3/h
7,0
Working pressure, bar
10
Dimensions, mm
457 x 270
Recommended pool volume, m3
20
Casing material
Titan
Tube/ spiral material
Titan
