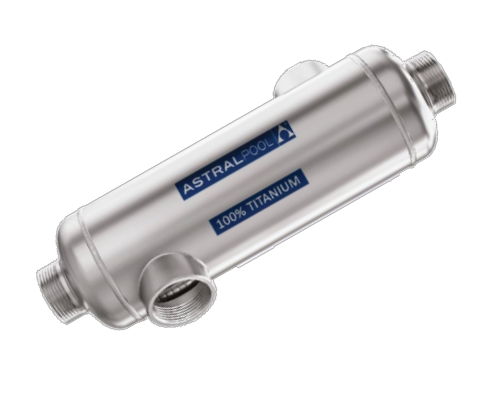

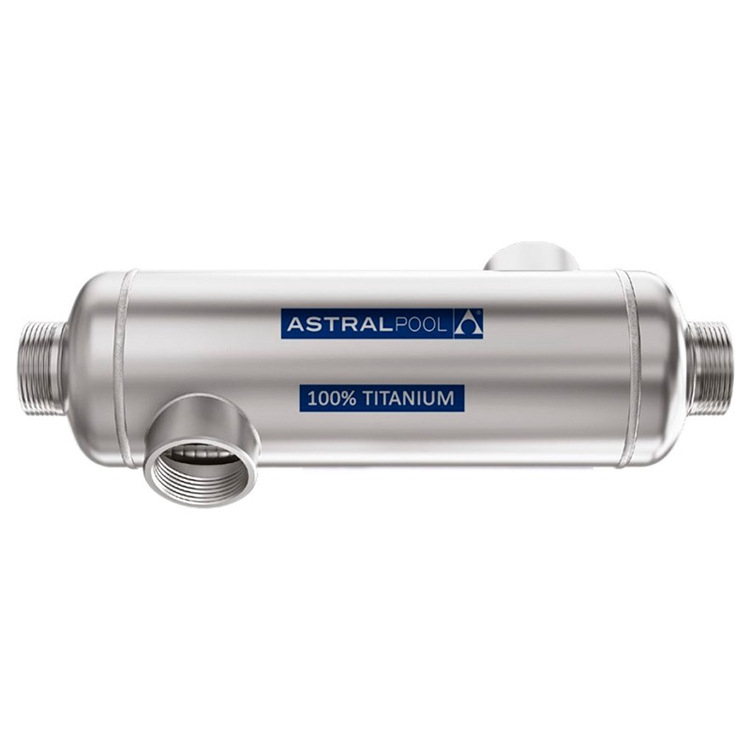

AstralPool EVO titanium waterheat exchanger for pool, 450 kW

AstralPool EVO titanium waterheat exchanger, 450 kW

A heat exchanger enables the transfer of heat from one gas or liquid to another gas or liquid without the requirement for direct contact or mixing between the two fluids. Heat exchangers' basic purpose is to transfer heat without also transferring the fluid that carries that heat.

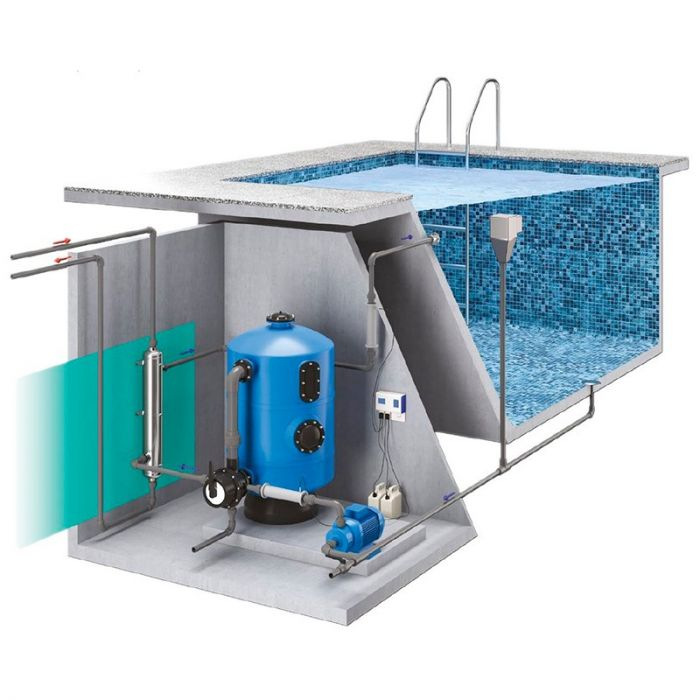

Pool water is heated by heat exchangers that use hot water from boilers or solar-heated water circuits. It is the transfer of heat between the utilized media and the exchanger materials that is known as conduction.

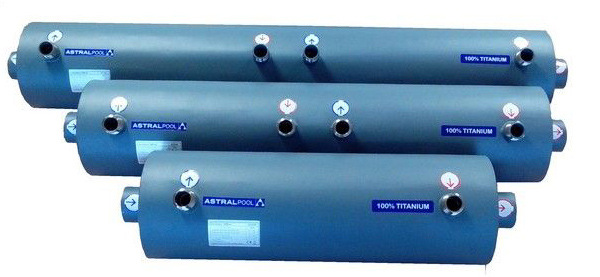

AstralPool waterheat exchanger are suitable for raising the water temperature in swimming pools and SPAS. The primary circuit, which is a warm area, and the secondary circuit, which is a cold area that we want to warm, are able to exchange heat.

Product specifications:

• Power: 450kW
• Heater: 16 m3h
• Loss of water pressure from boiler: 0.470 bar
• Heater Connection: G 1 ½ “
• Swimming pool m3h: 21
• Pool connection: G 1 ½ “
• Pool water pressure dropping: 0.860

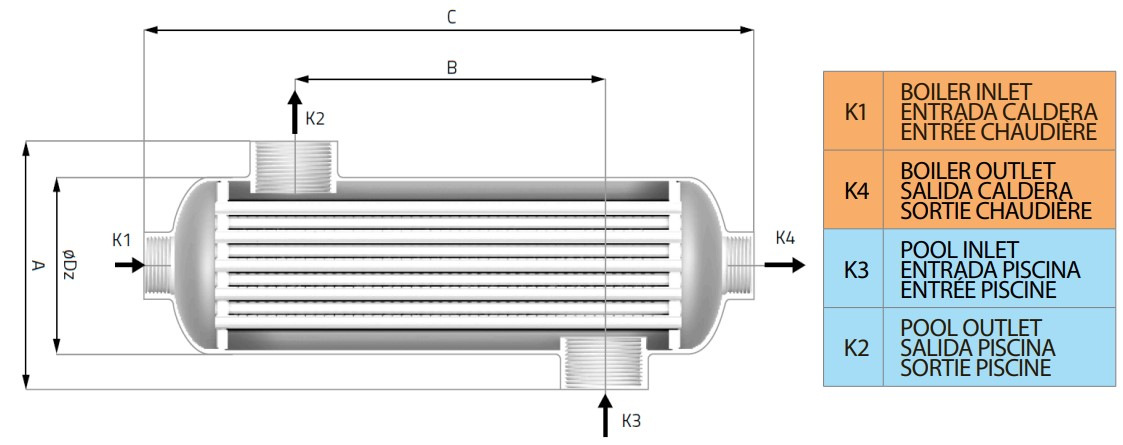

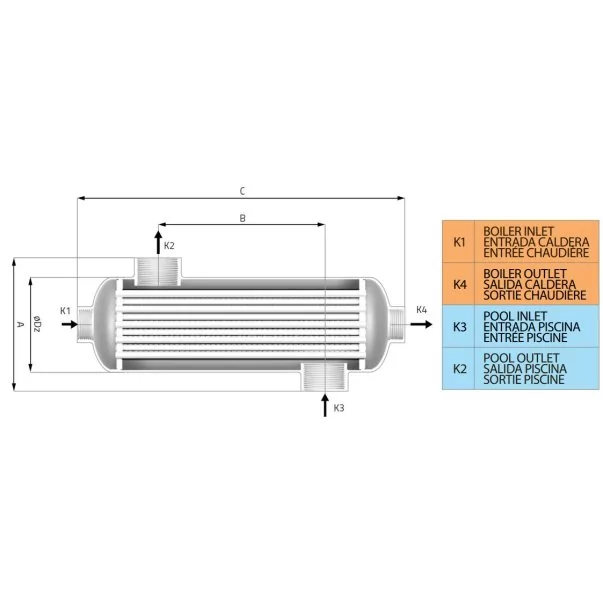

• Dimension: 1107 x 920

Exchanger Materials:

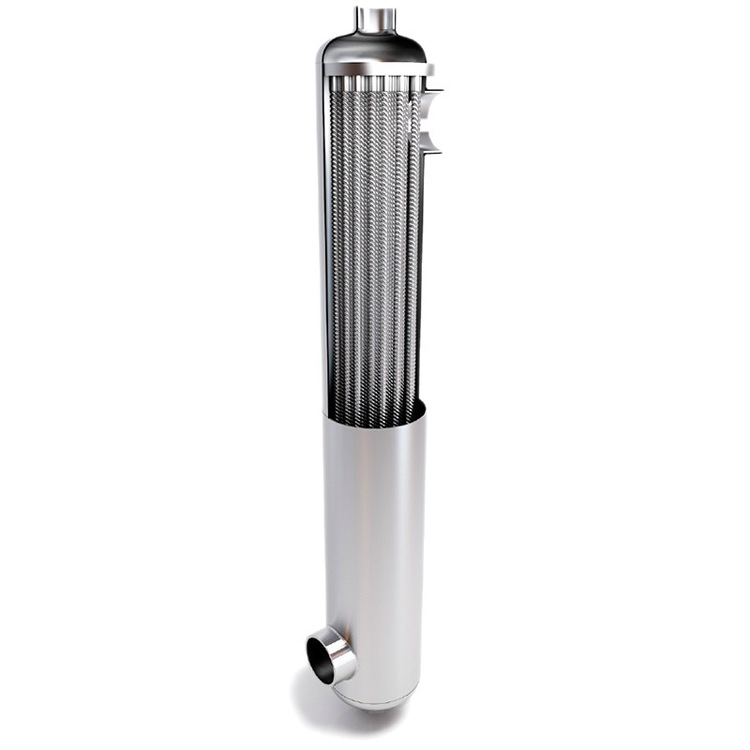

• Secondary Titanium Housing for Pool Water
• Titanium coil (primary, water for boiler)
• Primary working pressure: 10 bar
• Secondary working pressure: 3 bar
