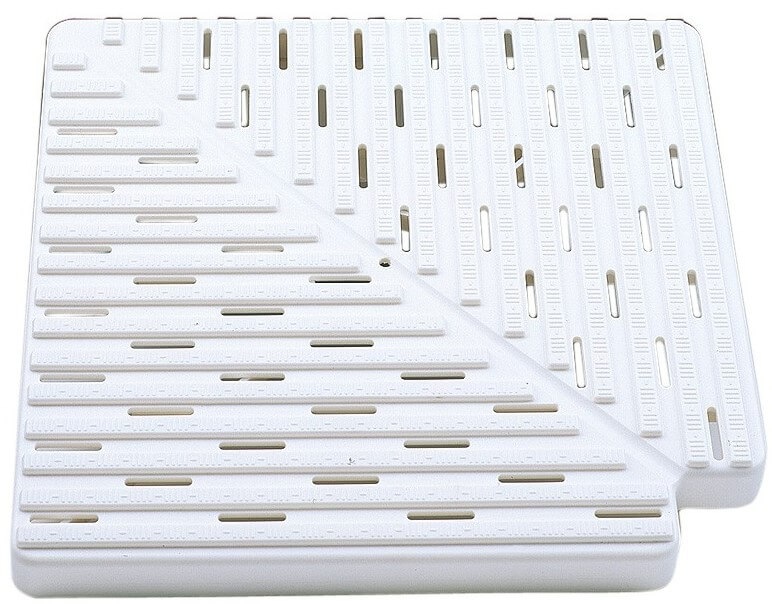

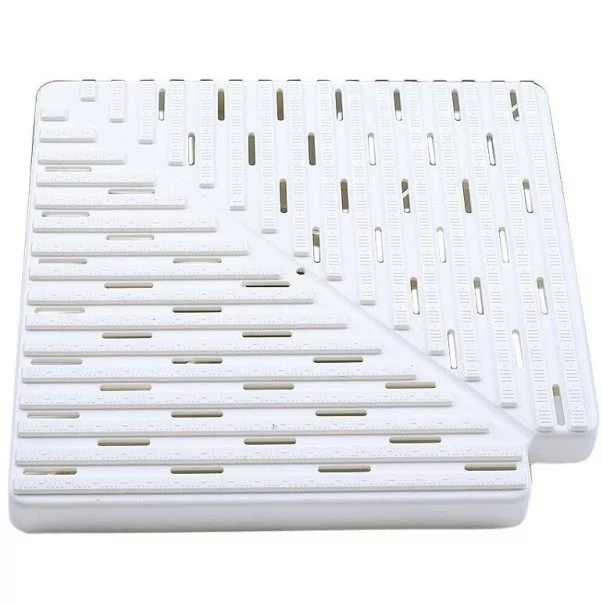

AstralPool overflow corner grating 90° angle for swimming pool, 335 mm

AstralPool overflow corner grating 90° angle for swimming pool, 335 mm

Modern overflow grating gives the pool's edge a great finishing touch and a perfect overflow mechanism. The drain that runs alongside the swimming pools is likewise covered with it. They are made of high-quality plastics.

The pool gratings prevent falls into the pool drain, and ensure that the water that is overflowing is directed down the drain. With such an overflow pool, the water is stored in a "storage tank" instead of being pulled in by the skimmer. After that, the water is filtered and returned to the pool through a range of return inlets (floor & multi-flow).

Product Specifications:

• Manufactured from injection-moulded copolymer polypropylene plastic.
• Modules are joined together by adjusting their connection
• Non-slip texture in compliance with ISO standards
• UV rays protected
• Can be assembled easily and quickly

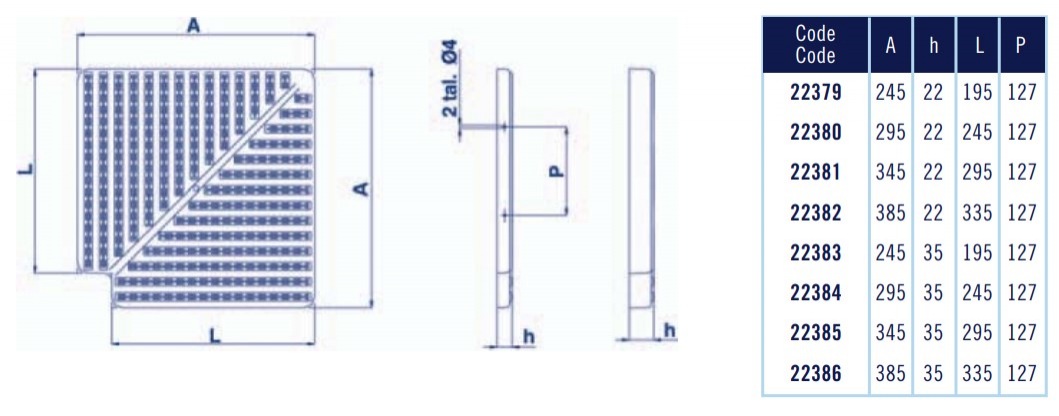

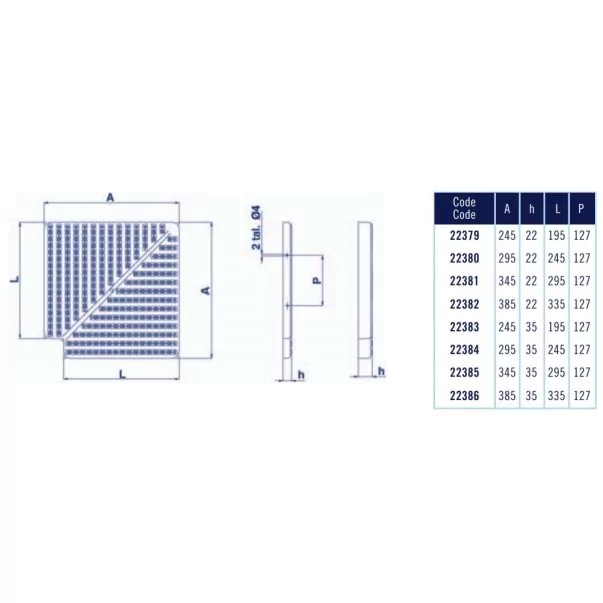

• Supplied in widths of 195 mm, 245 mm, 295 mm, and 335 with heights of 22 mm.
• Proportions created to properly suit width and depth without the use of alignment profile
• Supports swimming pools, both private and public, with overflow canals.

Recommendation:

It is essential to create the overflow channel 5 mm larger than the grating in order to facilitate adaptation and prevent potential dilations.
