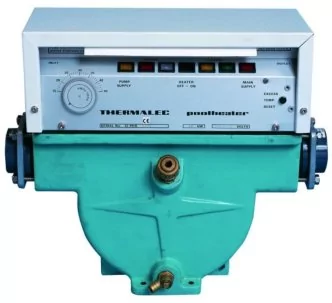

Atecpool Thermalec titanium electric heater for swimming pool and spa, 9 kW

Atecpool Thermalec titanium electric heater for pool and spa, 9 kW

The THR TITANIUM series is constructed using titanium components to precisely meet the requirements frequently linked with Thermalec® heaters, and it conforms with all applicable electrical safety laws.

It efficiently eliminates heat from the environment while limiting the accumulation of scale and silt thanks to its characteristic spiral movement. By avoiding direct contact with the elements and delivering cooler water from the filter pump, it has a longer lifespan.  The air that the pump creates flows harmlessly around the sides of the baffles and over the top of the heating components.

The pool is controlled to within 1 °C by a control thermostat that is placed to detect the temperature of incoming water. Your pool or spa can be heated year-round using Thermalec heaters when combined with other heating systems.

Product specifications:

• Water inlet/outlet: Socked for mm or 2” NB pipe
• Water connections: uPVC socket
• Maximum operating temperature: 52 °C heater outlet
• Maximum Operating pressure: 2,0 bar
• Maximum ambient temperature: 40 °C
• Pool temperature control range: 15 °C to 45 °C
• Element holding plate: uPVC
• Heater elements: Titanium sheath
• Electrical enclosure: powder coated steel
• Load: 9 kW
• Power supply: 230V / 1ph/ 50Hz
