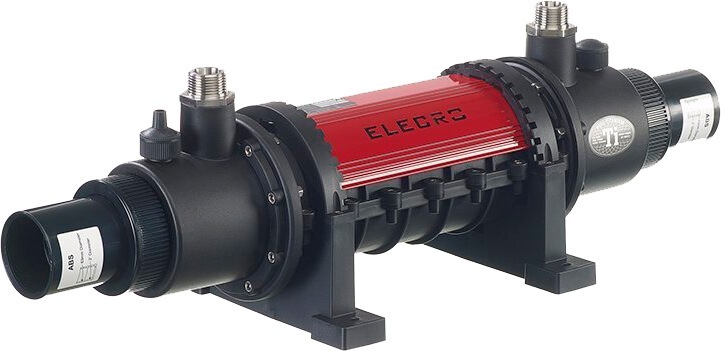

Elecro SST 95 kW heat exchanger for pool

Elecro SST 95 kW heat exchanger for swimming pools

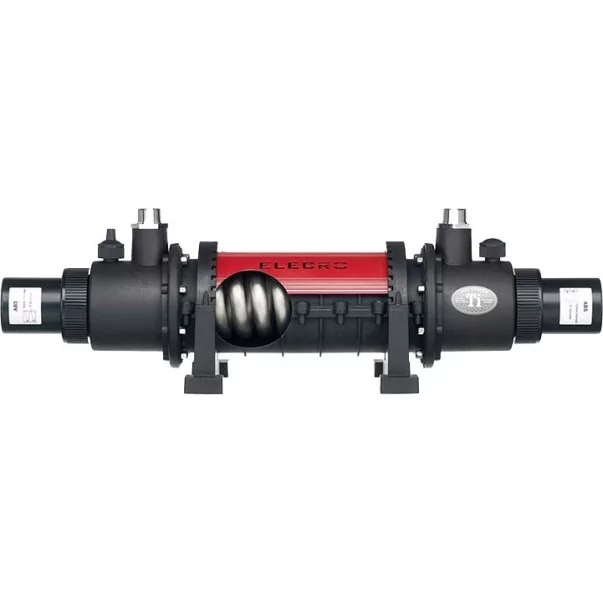

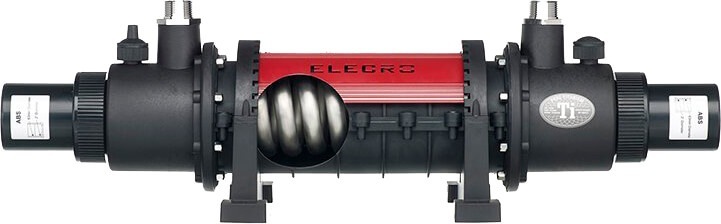

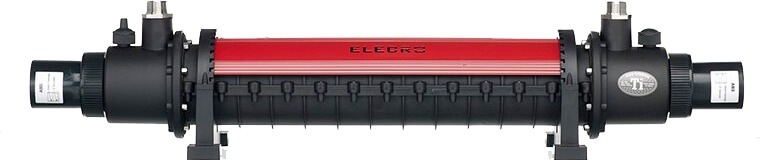

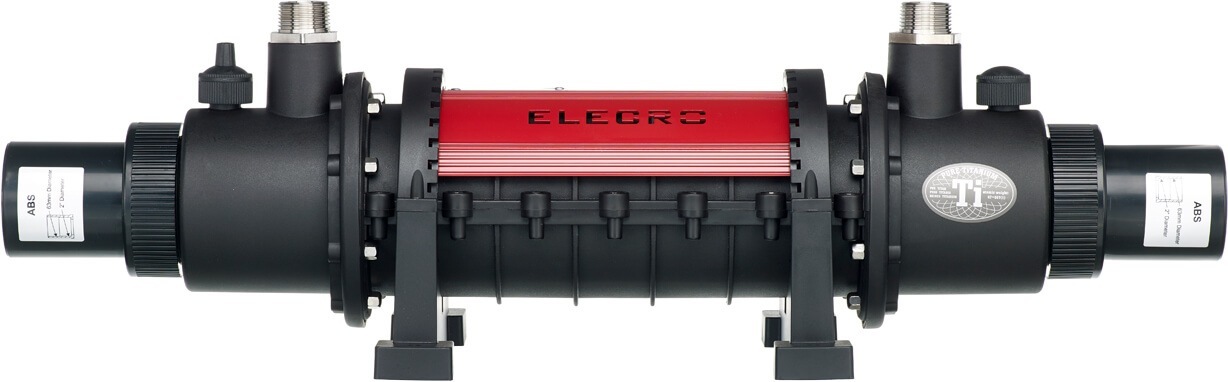

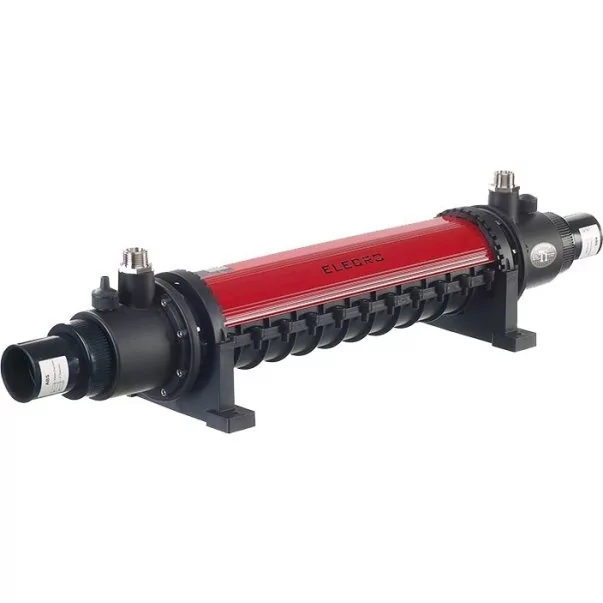

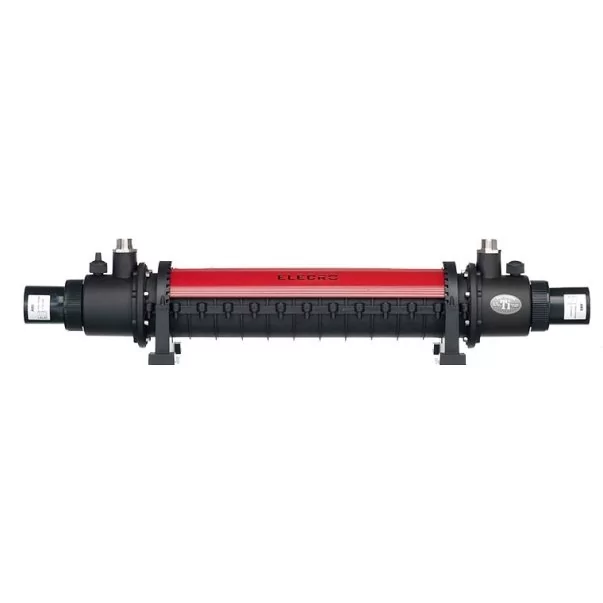

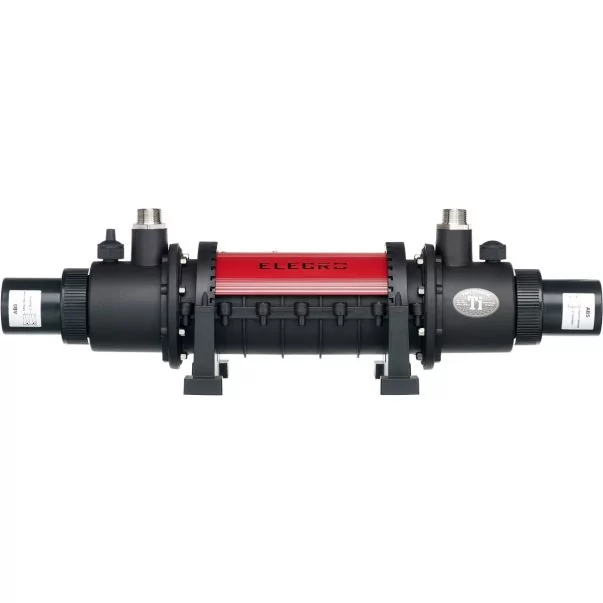

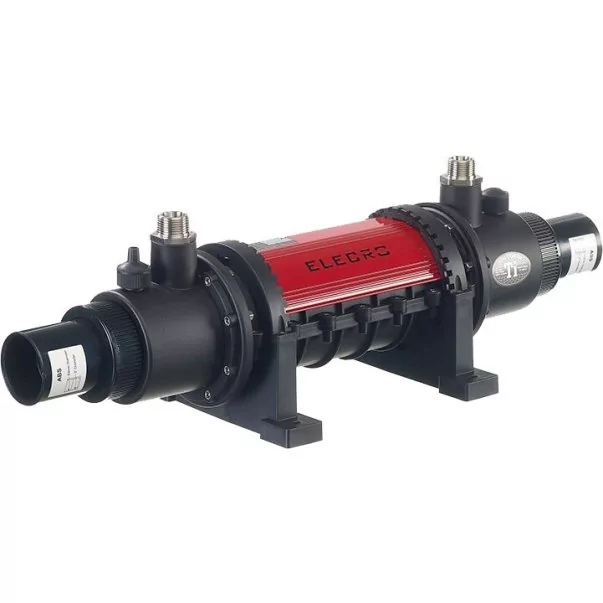

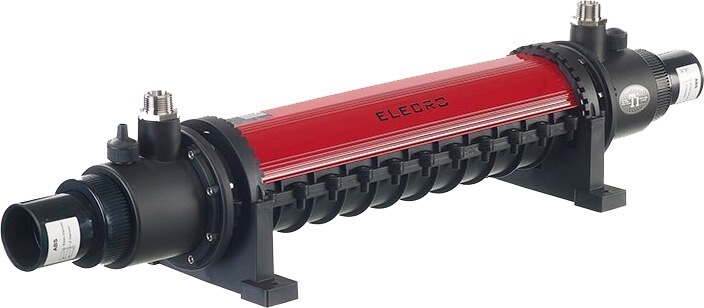

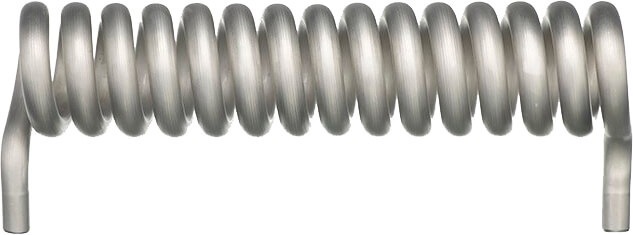

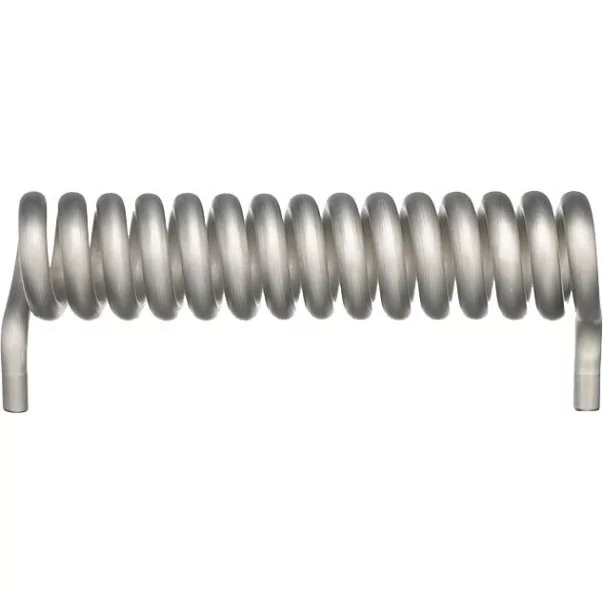

The Elecro SST is a tubular spiral heat exchanger. The model is equipped with a rigid shell, which makes it extremely efficient in high-pressure applications.

The materials used in the manufacturing process give the unit a high COP and a long service life.

The unit is protected against moderate mechanical damage, elevated temperatures, corrosion, and UV rays.

Complete with built-in space for flow sensor and thermostat.

The heat exchanger can be used with the most powerful heat sources. This is possible because the pressure in the primary circuit can reach 30 bar without damaging the installation.

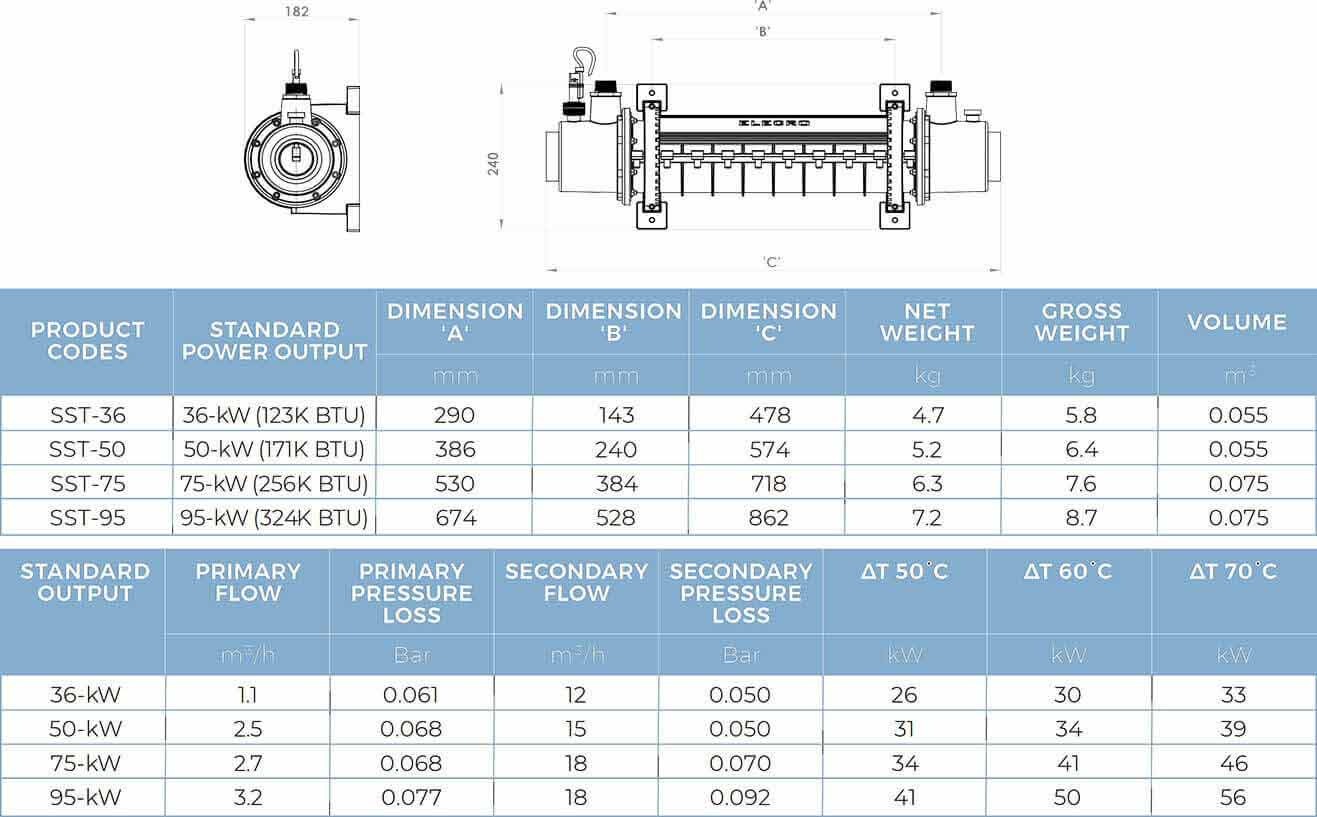

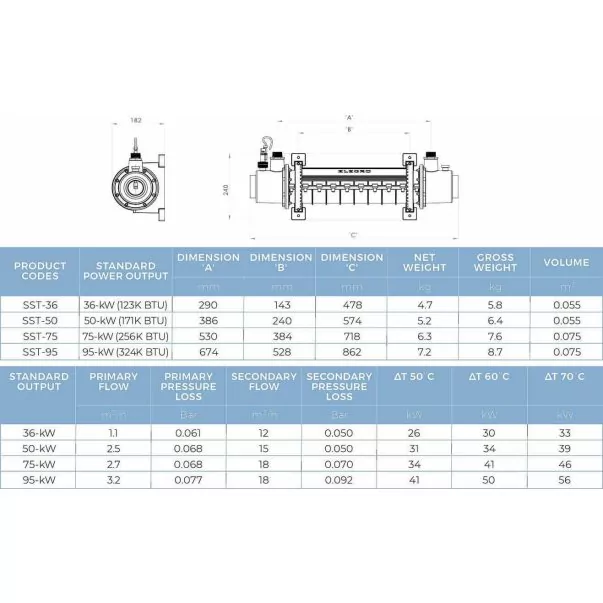

Main characteristics of the heat exchanger

• Power - 95 kW
• Tubing material - titanium
• Casing material - polymer

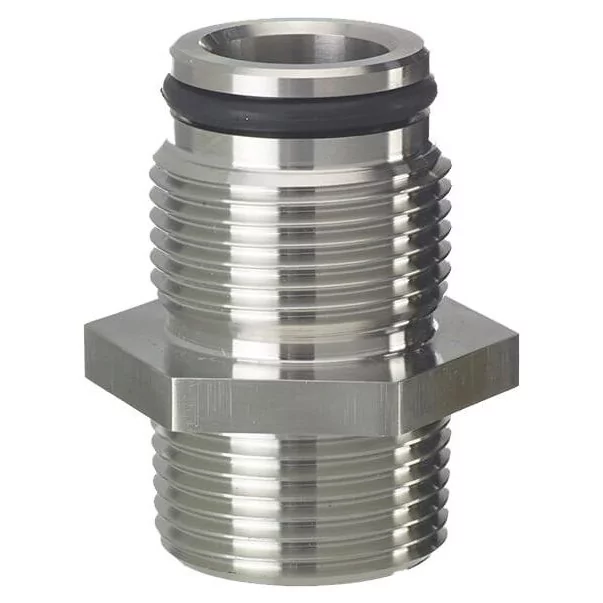

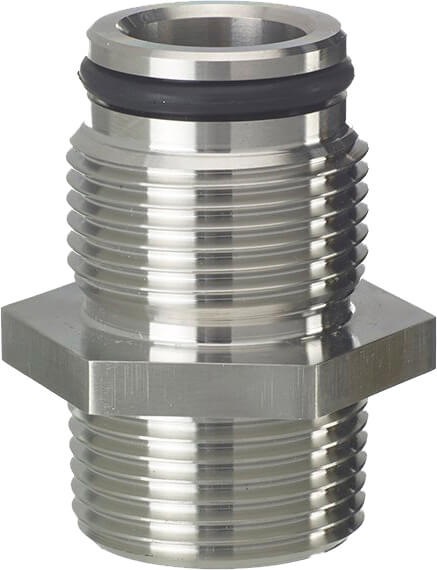

• Primary circuit - 1".
• Secondary circuit – 1 ½” / 50mm/ 2 ½” 63mm
• Maximum working pressure 1-ry circuit - 30 bar
• Maximum working pressure 2-ry circuit - 4 bar
• Temperature limitation of the first circuit - 130 degrees.
