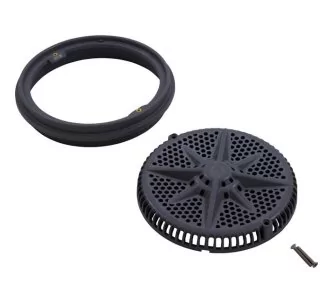

Pentair 8" Starguard circular cover with long ring, single, ABS, Black

Pentair 8" Starguard circular cover with long ring, single, ABS, Black

Your swimming pool's drainage and circulation system must have primary drains. In addition to assuring water purity, appropriate chemical distribution, and maintaining a steady water temperature throughout the pool, the deep end of the pool has drains that provide flow.

Pool water might enter the pump and filter through the main drain. The deepest area of the pool's bottom is where the main drain is located. Smaller pools may just have one main drain, whereas larger pools may have several.

In accordance with the Virginia Graeme Baker Pool & Spa Safety Act, Pentair StarGuard drains adhere to the provisions of the ANSI/APSP/ICC-16 2017 standard. To fit any inground pool or spa installation, premium StarGuard drains are offered in white, black, gray, and dark gray in addition to a number of combinations.

Find the ideal StarGuard drain model for your application by looking over the specifications. 15.35 square inches of space are available for water flow in StarGuard drains. The StarGuard covers permit flow rates of up to 72 GPM in areas where water velocity through the grate is restricted to 1.5 feet/second.

Product specifications:

• 8" round main drain that is NSF 50 certified
• Virginia Graeme Baker Act compliant
• Available in a variety of colors
• Authorized for use in commercial installations.
