Polgun Body slide, Multislide 3 lanes, Combination Aquatube, Freefall water slides

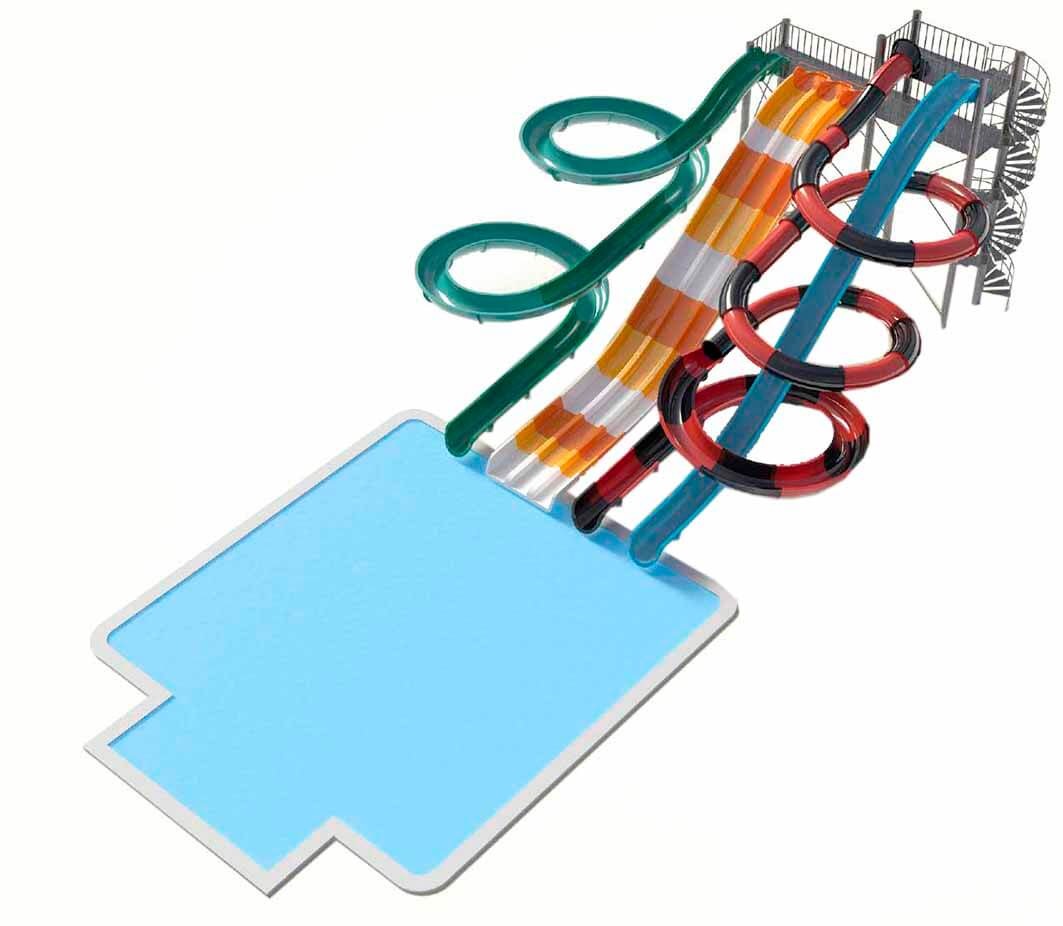

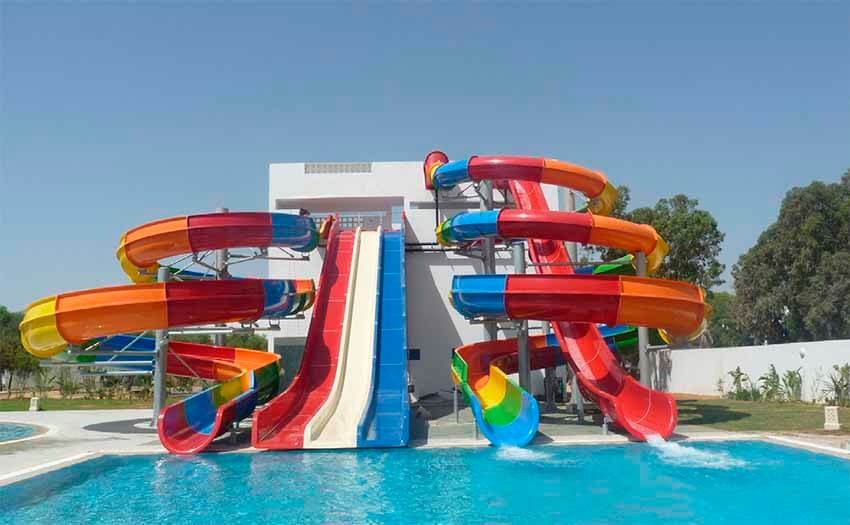

Polgun Body slide, Multislide 3 lanes, Combination Aquatube, Freefall water slides

Water attractions - part of the entertainment infrastructure of water activities. They will perfectly complement the infrastructure of the hotel, entertainment and spa complex. They will create a fun zone around the pool.

Usually, we use a separate pool for a complex of waterslides – the name is splashing pool. Depending on the age category of swimmers, the pool has a different depth.
If it is not available to build it, for example, the area doesn’t have enough space or no reason to do it, for example, if it is just 1 slide, we use dry finish. It is like additional flumes of the water slide, there are swimmers stops.

The type of water slide is selected according to the age category of the visitors. When choosing water slides, it is necessary to remember the age, weight, height of users, these factors involve on the safety of people.

Hotels often choose a complex of slides with one start grounding, but with different heights, in order to reach a large audience.

This complex compact and the little guests will love it.

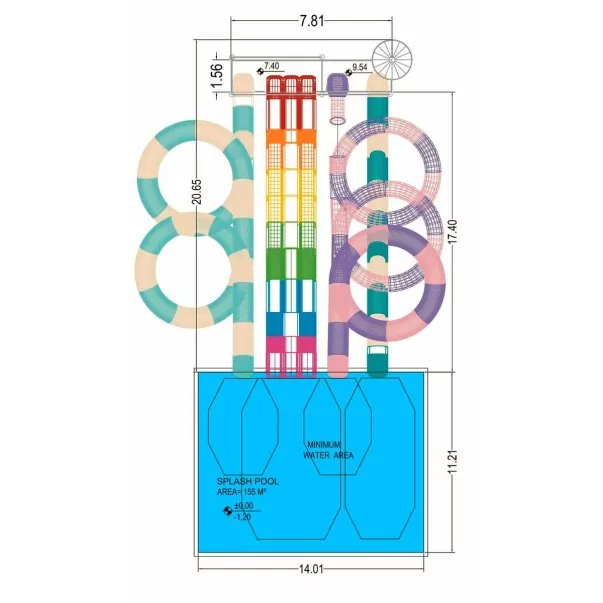

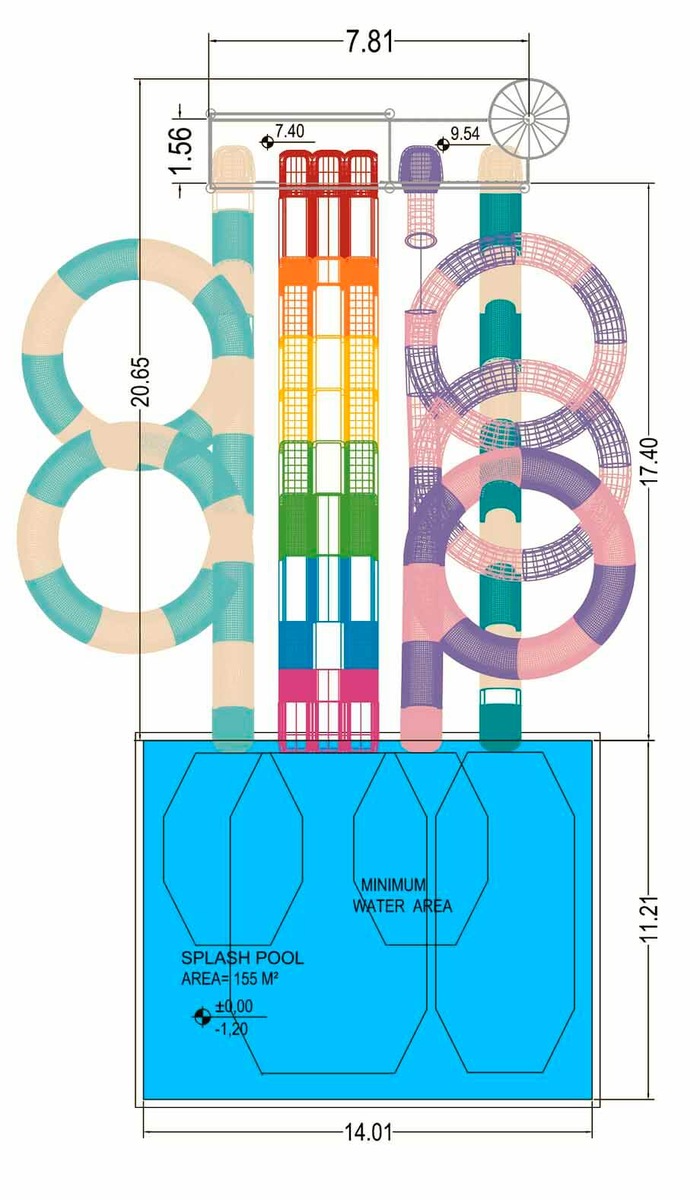

Dimensions of complex water slides quartet options for hotel

• Required area - 35x20 m

Body slide

• Height of start - 7.4 m
• Length - 57,06 mm
• Depth - 710 mm
• Width - 1010 mm
• Slope - 12 -13%
• Max. capacity of visitors per hour - 180 persons.
• Pump power - 5,5 kW

Multislide 3 lanes slide

• Height of start - 7.4 m
• Length - 20.73 m
• Depth - 550 mm
• Width - 2340 x 3 mm
• Slope - 35 -38%
• Max. capacity of visitors per hour - 120 persons.
• Pump power - 5.5 kW

Combination Aquatube

• Height of start - 9.54 m
• Length - 49.84 - 25.84 mm
• Depth - 820 -1010 mm
• Width - 820 mm
• Slope - 12-13%
• Max. capacity of visitors per hour - 180 persons.
• Pump power - 5.5 kW

Freefall

• Height of start - 9.54 m
• Length - 21.93 mm
• Depth - 710 mm
• Width - 1010 mm
• Slope - 26 -30%
• Max. capacity of visitors per hour - 120 persons.
• Pump power - 5.5 kW
