Polgun splash tower for kids area ST22

Polgun splash tower for kids area ST22

The aquatic entertainment complexes are designed for entertaining families. Each complex has zoning, which is created to divide visitors by interests (passive and active zone) and age (for adults, teenagers, children, toddlers), gender (male and female). Zoning is important not only for the comfortable stay of people, but also for their safety.
Children's area of a modern water-entertainment complex will necessarily include a playground, not depending on whether it is a separate complex, aimed at leisure or aquazone at the hotel, or beach... Playgrounds in our time should include a lot of interactive elements that can attract children for a long time: water slides with different trajectory of descent, color and sound effects, bucket, which flips when filled, shooting jets and sprays of water in the form of various figures ... Such playgrounds are called - SPLASH TOWER.

The children's pool concept with the Splash Tower in the middle of the pool helps to distribute the children throughout the pool area. This is a more advantageous children's area concept as opposed to the pool perimeter option. In pools where the rides are located on the sides of the pool, the middle is usually empty.

Splash towers are available in many variants, but we suggest considering some standard options. Splash tower can be individually designed based on the size of the pool. Pool for such areas should be 40-60 cm deep. It is oriented on the children's age group of 5 years and older. Water intake for Splash tower is carried out from the pool in which it is installed.

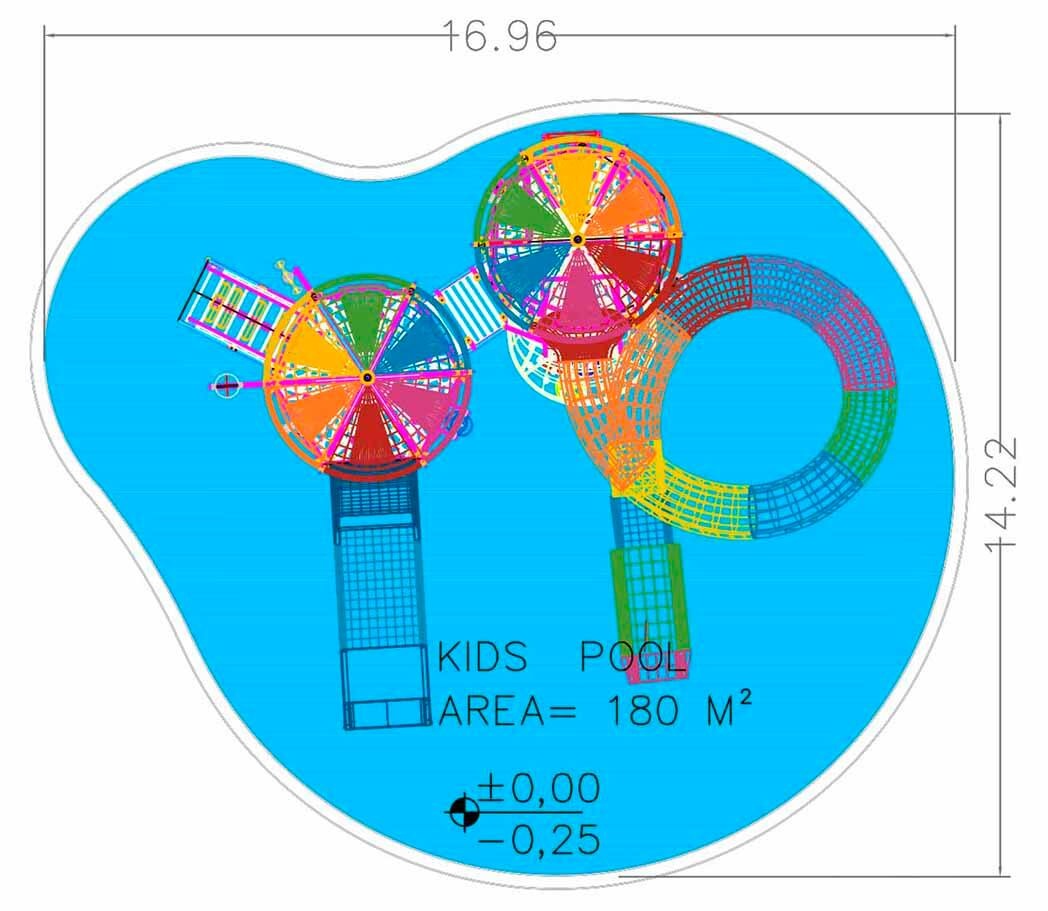

Dimensions of splash tower ST22

• Required area - 17x15 m
• Top height -9.25 m
• Length of slide (one - Aquatube)- 17.67 mm + dry finish 5.30 m; Slope - 10-15%; Depth - 820/400 mm; Width - 820/960 mm; Height of start - 2.1 m
• Length of slide (the second one - Kid's Wide)- 5.29 mm; Slope - 25-30%; Depth - 400 mm; Width - 1400 mm; Height of start - 1.5 m
• Max. capacity of visitors per hour - 360 persons.
