Zodiac DF 403M through the wall dehumidifier with hot water coil option for pool, 3,5 l/h, 1,300 m3h

Zodiac DF 403M through the wall dehumidifier with hot water coil  option for pool, 3,5 l/h, 1,300 m3h

A dehumidifier stabilizes the room's environment by regulating the humidity and air temperature in indoor swimming pool rooms. By using a dehumidifier, less outside air is needed and less energy is expended to heat or chill the air. Waste water is discharged into a drain, and the air is heated using heat from the dehumidification procedure. In the actual pool area, dehumidifiers can be fixed on the wall.

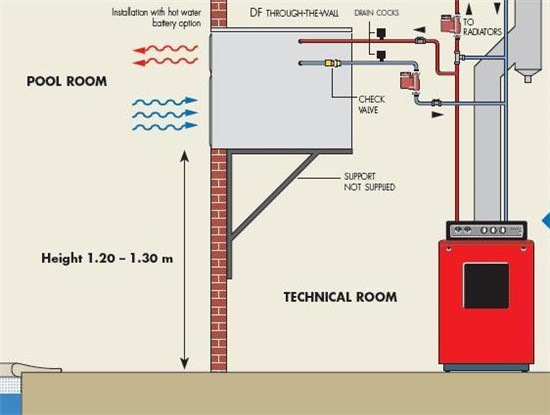

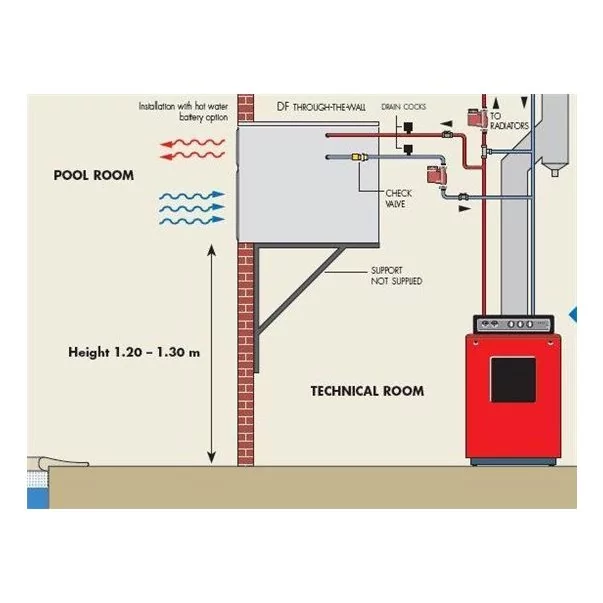

The Zodiac DF through-the-wall dehumidifier is placed utilizing in-wall fittings between the machine room and the pool enclosure and is essentially undetectable. From your pool, you can only see the intake and ventilation grilles. There are three different capacities that range from 3.5 to 8 l.h. Installing is simple through walls and up off the ground (1.2 to 1.3 meters).

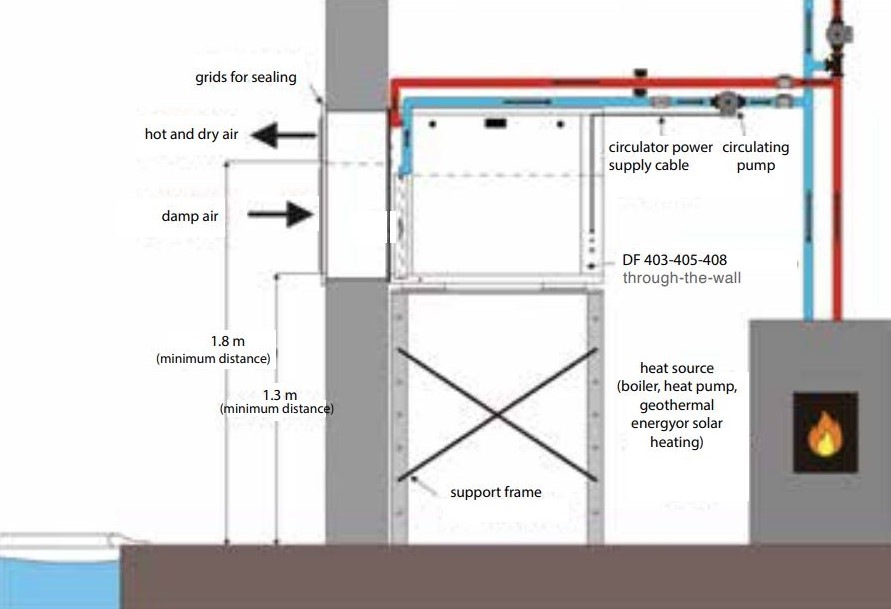

You can boost comfort and have better control over the humidity level, which is affected by ambient temperature, by heating the air in the enclosure of your indoor pool. The console breathes warm, dry air in and exhales humid air. An electric assistance unit (electric resistance) or a hot water coil (connection to your boiler, heat pump, geothermal, or solar heating source) are both options for this function.

Product specifications:

• Capacity (l/h): 5,0
• Absorbed power (W): 1680
• Air flow rate (m³h): 1300
• Voltage: 220-240V / 1 N / 50Hz
• Absorption intensity: 16,1
• Refrigerant: R407C
• Condensation evacuation: PVC 1/2 union, Ø 32, glued
• Connector (mm): 20 / 27 male thread
• Weight (Kg): 129

Recommendation:

Accessories that can be added as options for greater comfort:

• Double deflector supply grate (WTT02365)
• DF support frame (WTO04000)
• Remote control electrical unit (W28DEPORT)
