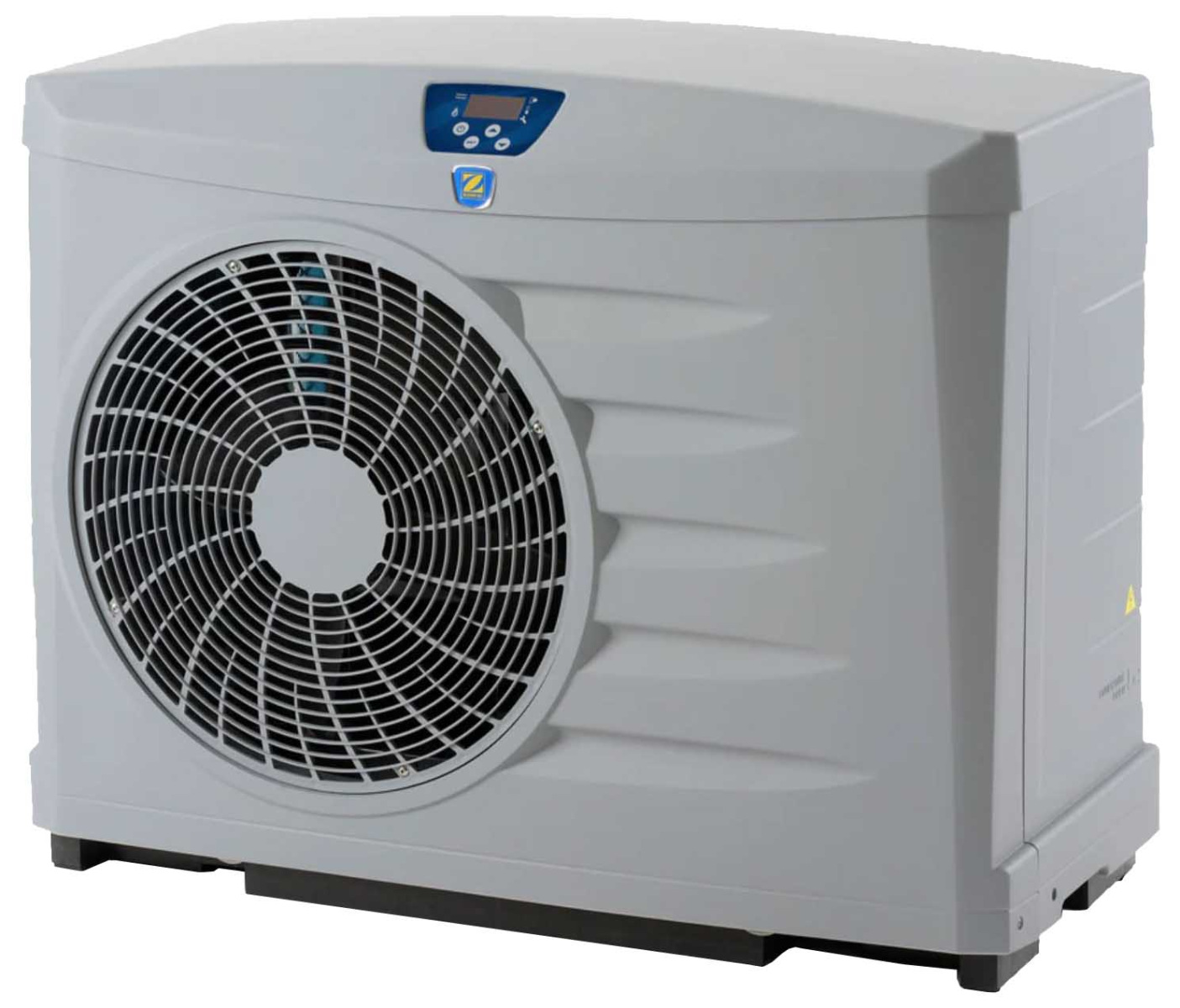

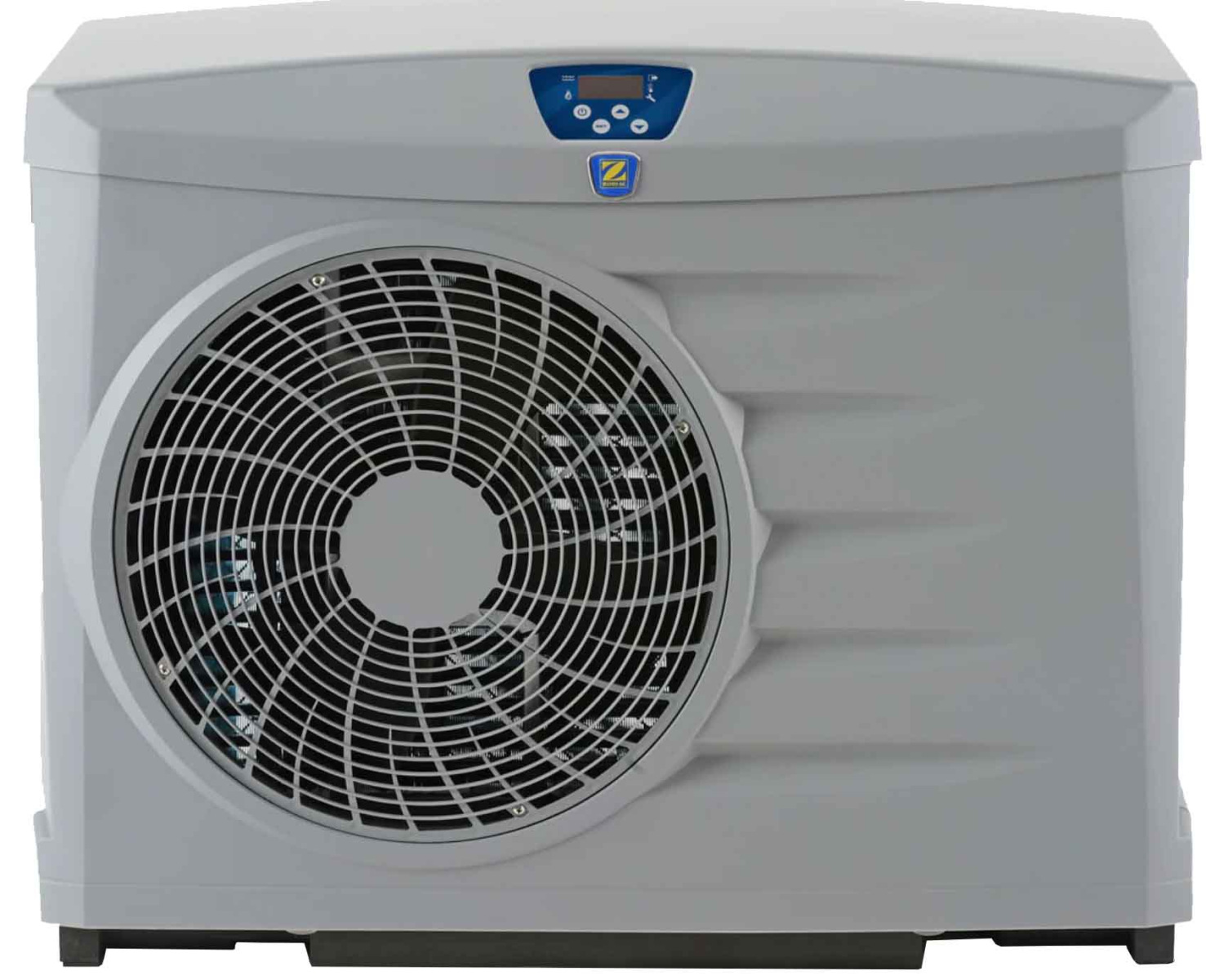

Zodiac Z300 M4 9 kW heat pump for pool, 220 - 240 V

Zodiac Z300 M4 9 kW heat pump for pool, 220 - 240 V

Looking for a modern, efficient heat pump to keep the water in your pool at the right temperature all year long? The Power Series heat pumps were replaced by the Zodiac Z300 heat pump. Due to its effectiveness, dependability, and simplicity, it provides an excellent price/performance ratio and is a perfect option when buying a heat pump.

The surrounding air supplies about 80% of the energy needed to heat your pool. The heat pump performs significantly better at lower temperatures, since it uses the refrigerant R410A (although it can be used at temperatures greater than +5 °C). In comparison to piston compressors, it uses blade compressor technology.

The power cord and screw fittings are both supplied, making installation simple. The Z300 has a number of design features that ensure a long service life, including a plastic wrapping that ensures stability and appearance even after many years, with no such corrosion issue. The coolant pipe is strengthened using the more effective R410a refrigerant, and an exchanger made of titanium that is more resistant to salt and seawater is used.

Product specifications:

• Heating power: 9 kW
• Consumed power: 1,6 kW
• COP: 5,6
• Recommended water flow: 4 m³h
• Hydraulic connection: PVC ½ unions, ø 50, glued
• Power supply: 220-240V / 1 N~ / 50Hz
• Maximum power (A): 10
• Refrigerant: R410A
• Acoustic power: 67
• Acoustic pressure at 10 m: 36 db (A)
• Weight: 52 Kg

Package inclusion: winter cover; condensate drain kit; anti-vibration pads; PVC and gaskets, ½ unions, Ø 40 & Ø 50

Recommendation:

For optimum heat pump performance, the following optional accessories are recommended:

• Cleaning kit HP (code WMA03491)

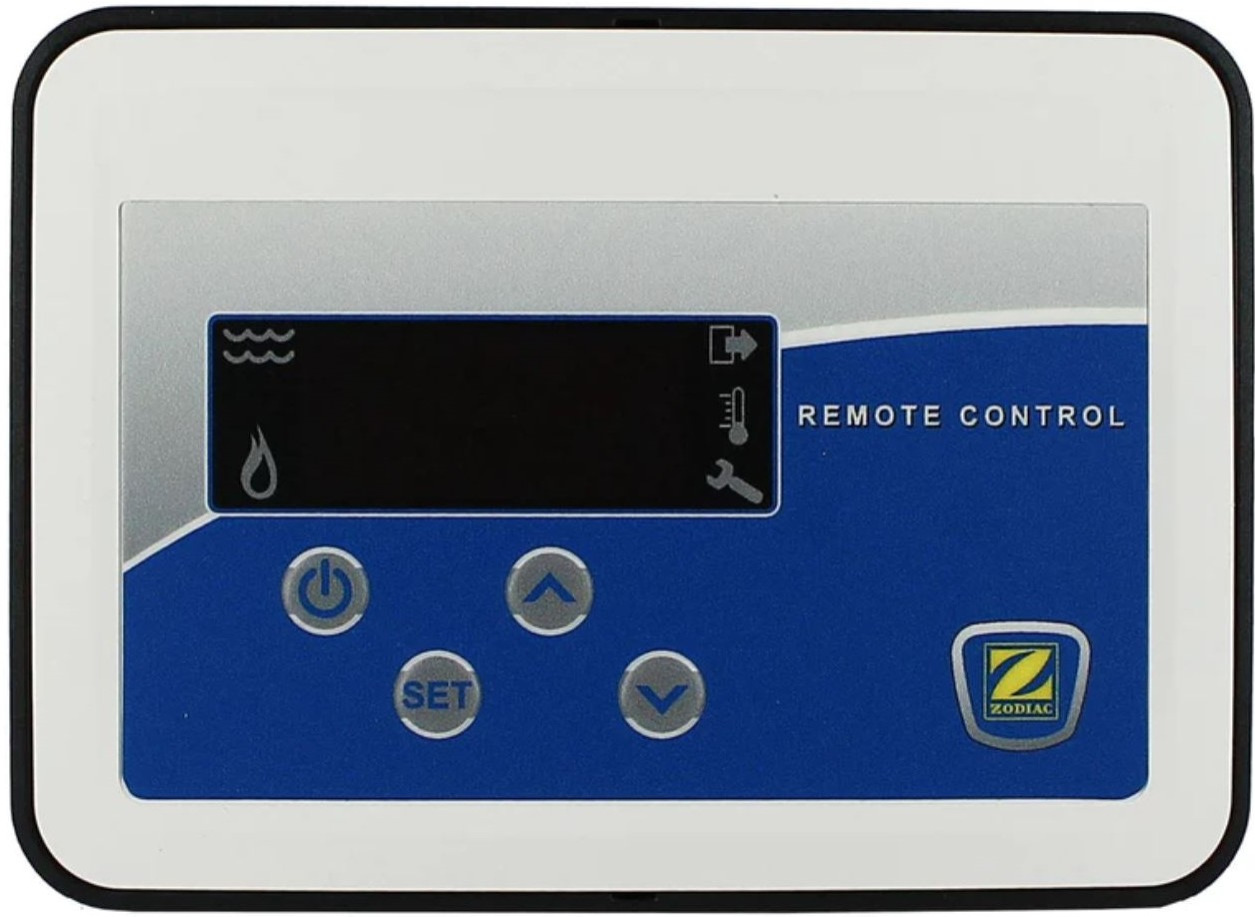

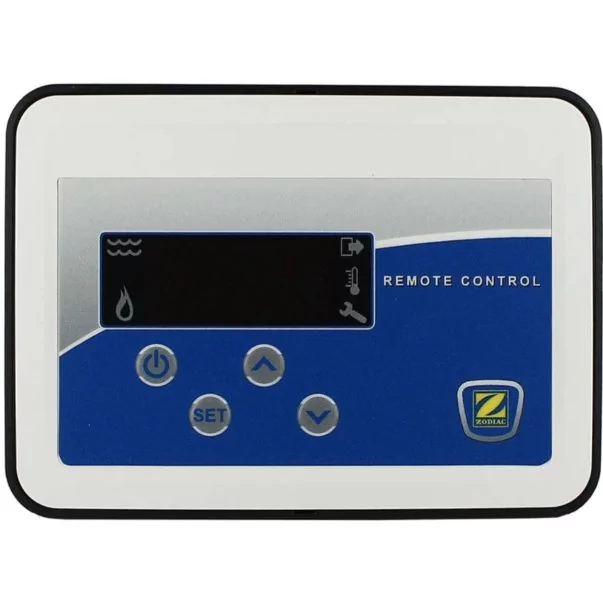

• Remote control Z200 (code WH00200)
• Wall mounting kit (code R07338)
