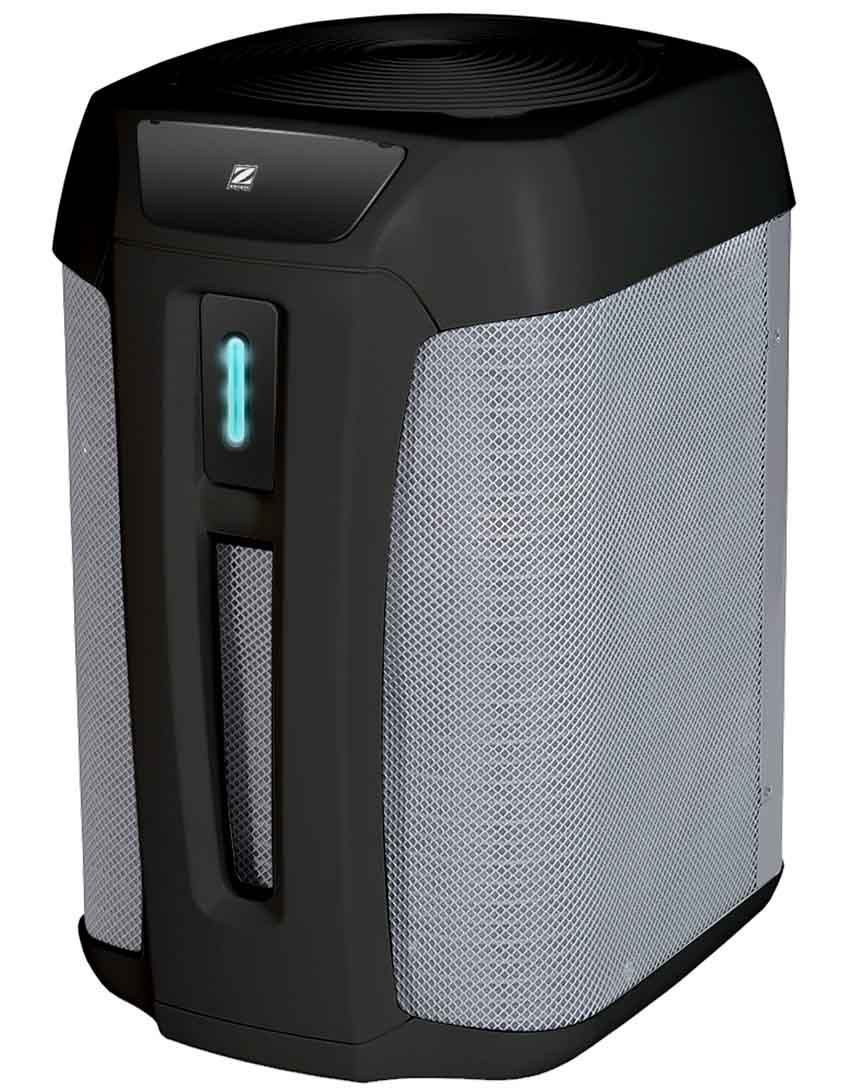

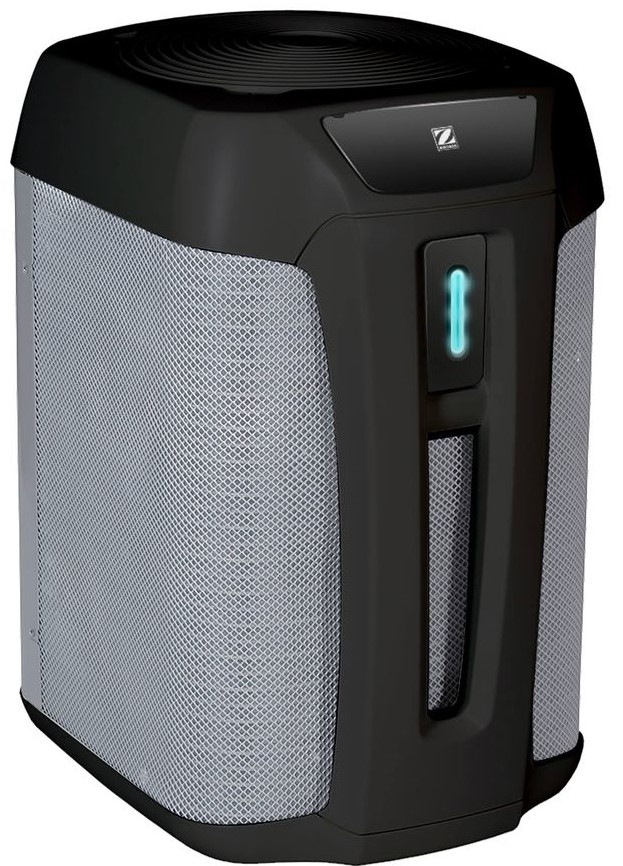

Zodiac Z550iQ MD4 12,5 kW inverter heat pump, 220-240V

Zodiac Z550iQ MD4 12,5 kW inverter heat pump, 220-240V

Due to its thermodynamic design, the heat pump is both an inexpensive and environmentally friendly heating option. It transports an average of five times as much energy—or calories—from the air to the water.

Compared to ON/OFF heat pumps, Zodiac Inverter heat pumps offer energy savings of 10% to 20%. They cleverly optimize their energy usage by automatically altering their power dependent on the temperature of the pool. The R32 refrigerant gas, which has a 68% lower impact than the R410A refrigerant gas, is utilized by a sizable number of Zodiac’s heat pump.

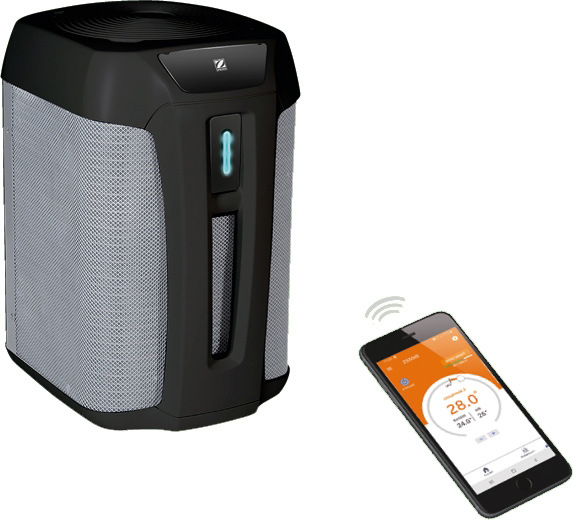

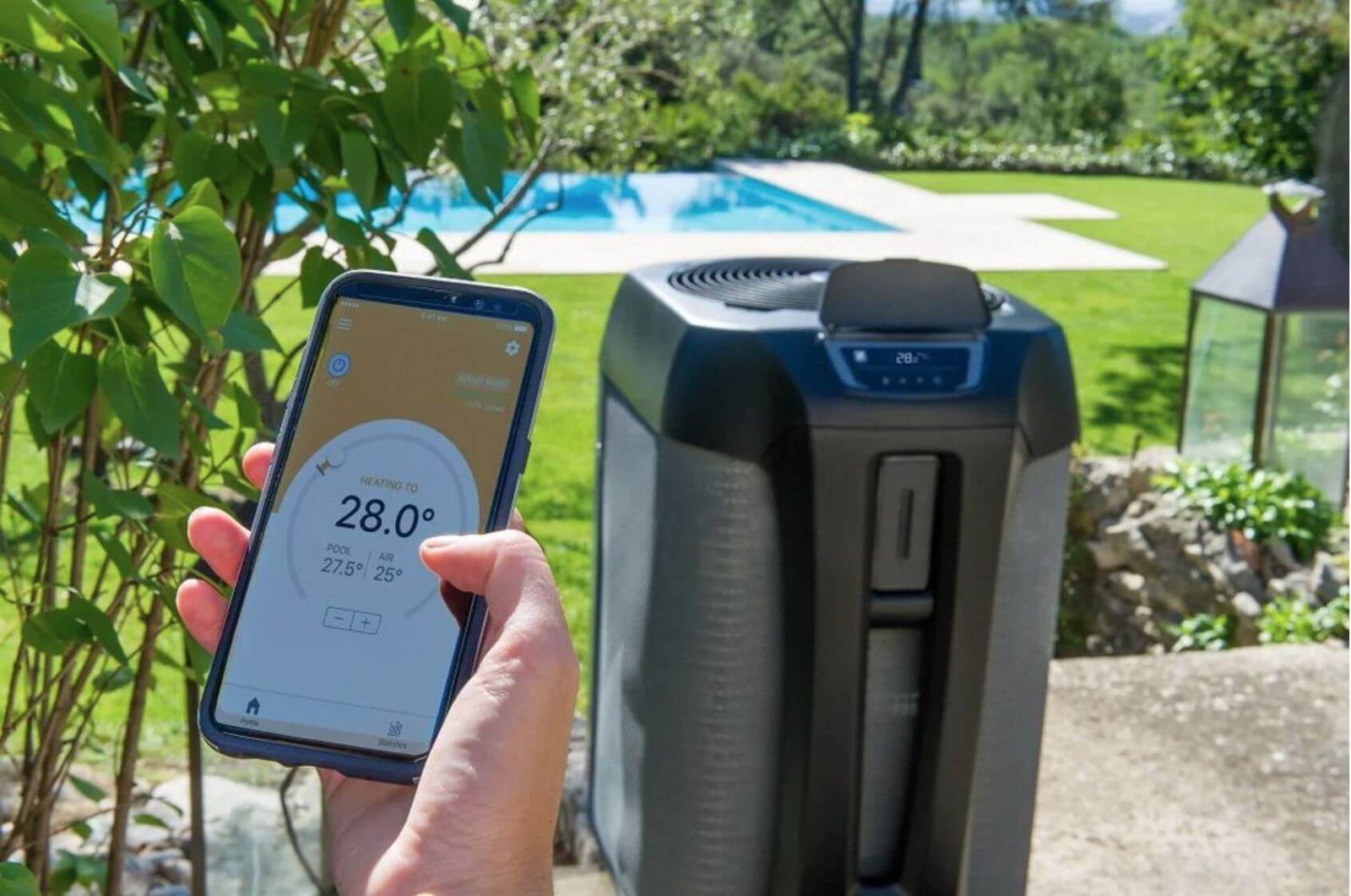

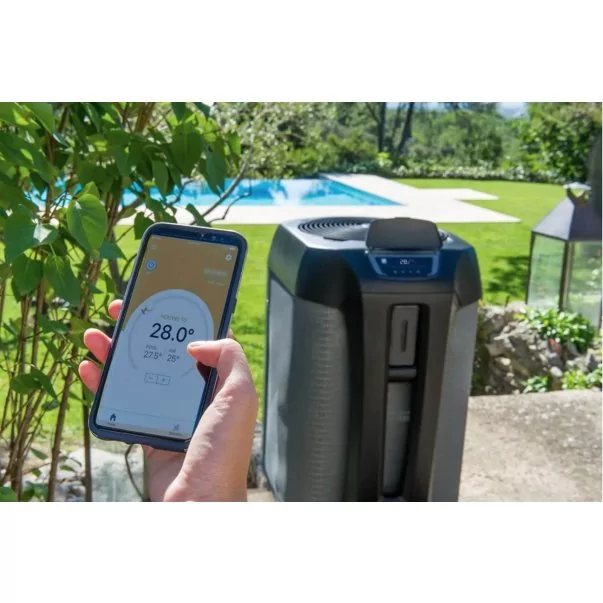

The Z550iQ is a vertical blasting heat pump with full inverter power, automated conditioning and thawing, app management, and three working modes (Ecosilence, Smart, Boost). It has Bluetooth connectivity, making the initial pairing with a smartphone simple. Wi-Fi (connection to a router at home for 24/7 remote access).

Product specification:

• Technology: full inverter
• App control: embedded
• Heating capacity: 12,5 kW
• Power usage: 2 kW
• COP: 4,9 kW
• Water flow recommended: 4 m3/h
• Hydraulic tether: PVC ½ unions, ø50, glued
• Power supply: 220-240V / 1 N~ / 50-60Hz
• Max. operating power: 12,5A
• Refrigerant: R410A
• Acoustic power: 62 dB(A)
• Acoustic pressure at 10 m: 31 dB(A)
• Weight: 54 Kg

Pack inclusion: D50 connector to be glued (x2); condensate drainage kit (D18); winterising cap (x2); winterising cover; heating priority

Recommendation:

• Adding a thermal cover to the heat pump with help reduce the water evaporation up to 96% and heat losses up to 80%.
• Optional accessories: technical room kit; condensation tray
