Aqua Salt Standard chlorinator for swimming pools up to 200 m3

Aqua Salt Standard chlorinator for swimming pools up to 400 m3

Context of use:

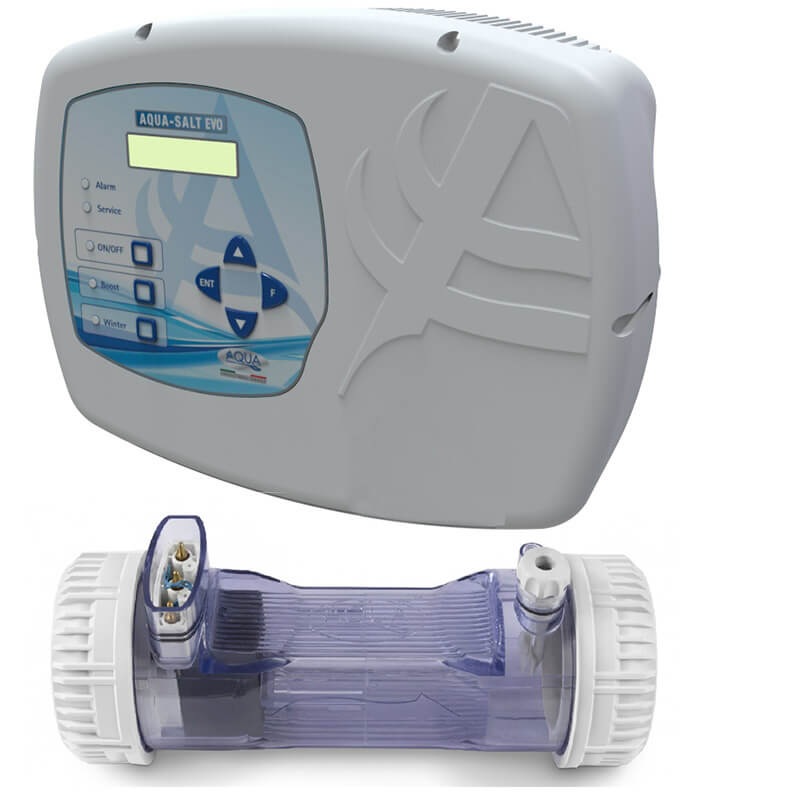

Aqua Salt Standard chlorinator is designed for private pool disinfection up to 400 000 litters. The system includes control system ADSAL110 and electrolytic cell ADCEL400.

Technical features of chlorinator ADSAL110 :

• suitable for any size of galvanic cells ADCEL
• IP65 safe keeping
• the limit of operating temperature: 40°C
• the limit of chlorine manufacture: 40 grams per hour
• dual security over the occupancy of streams
• the variety of languages
• pump supply to restore salt concentrating restoration
• cleansing of cells by reverse polarity
• handle of actual usage and servicing alarms
• rough amount of salt including extent alarms
• supplementary timekeeper to flow pump
• Energy provide: 180÷260 the highest utilization: 300 W
• Cell energy provide: 24VDC 10 A
• Bluetooth module for an attachment to phone with Android or Windows software (optional)
• MASTER/SLAVE type for multi connection for larger pool area for 400 m (optional)
• the pack size (L/ H/ W) 405 x 400 x 311 mm

Anytime with Aqua Salt Bluetooth you can switch on and off the utensil, enable/disable support, winter function, rise/drop the percent of chlorine in pools, scan the pH and Redox use, examine alarms, put equilibrium point of the acts of profits.

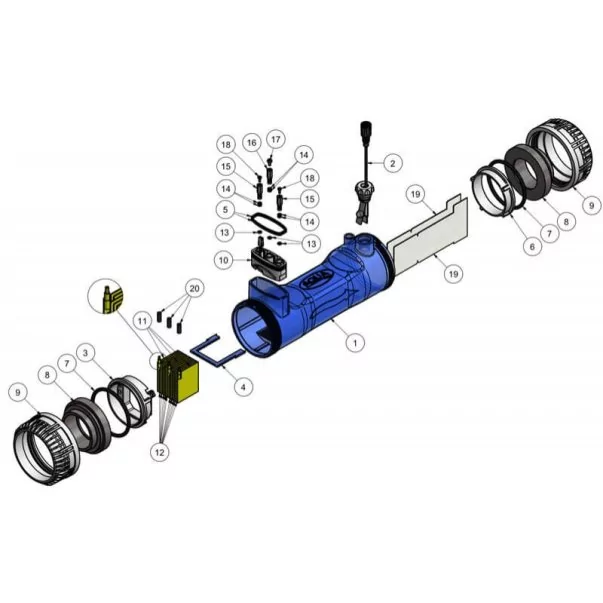

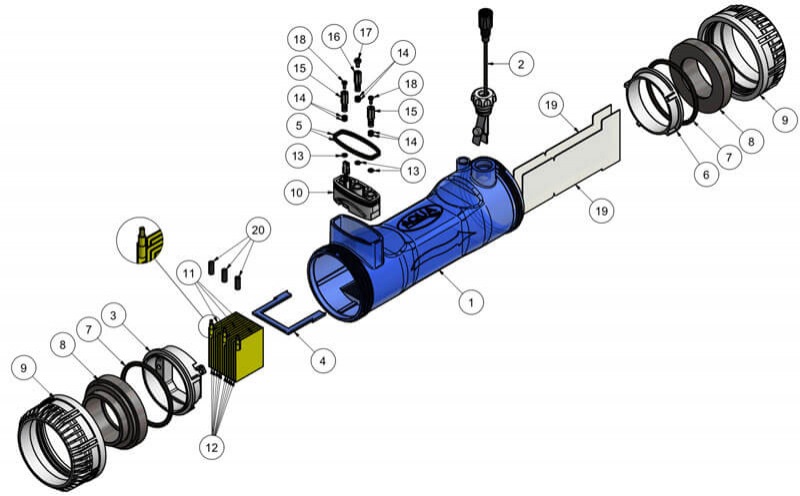

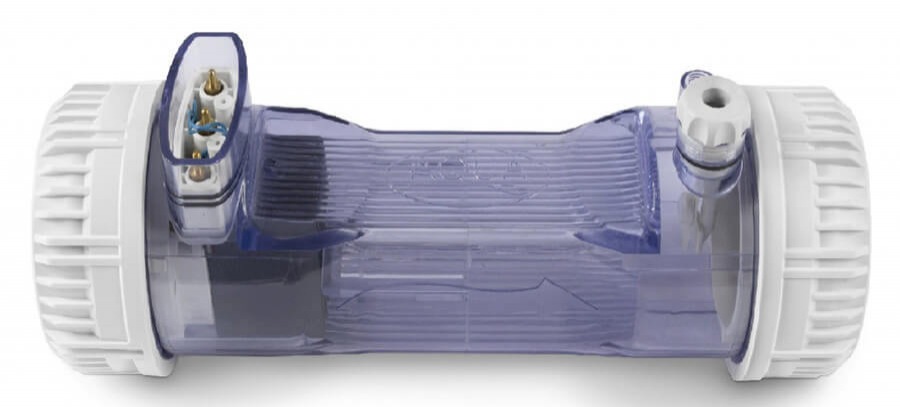

ADCEL electrolytic cell ADCEL400:

Chlorine sanitizer is created in the electrolyte cell through an electrolyte reaction, which provides sodium hypochlorite from an aqueous solution of sodium chloride. It includes the flow sensor, the titanium sheets and a PT400 transducer for measuring temperatures.

Technical features of electrolytic cell ADCEL200:

• Titanium sheets
• connecting pins produced in AISI 316
• integral fluid meter
• PT400 thermometer sensor
• the limit of working press: 3.75 bar
• the limit of chlorine manufacture: 40 g/h
• hydraulically connected airframe: d.50 / d.63
• the limit of water stiffness: 30°F*
• changeable cell transparency body
• Cell energy feed: 24VDC
• the limit of captivated energy: 240 W

Note: For water stiffness more than 30°F we suggest antiscale systems (water sweeteners)

PACKAGE SIZE (L/ H / W) 385 x 150 x 140 mm
