AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h
Description
Tech Specs
Reviews (2)
Shipping
Easy Returns
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h Photo №1
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h Photo №2
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h Photo №3
Code: 00491

AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h

Code: 00491
AstralPool
Valve type
side mounted

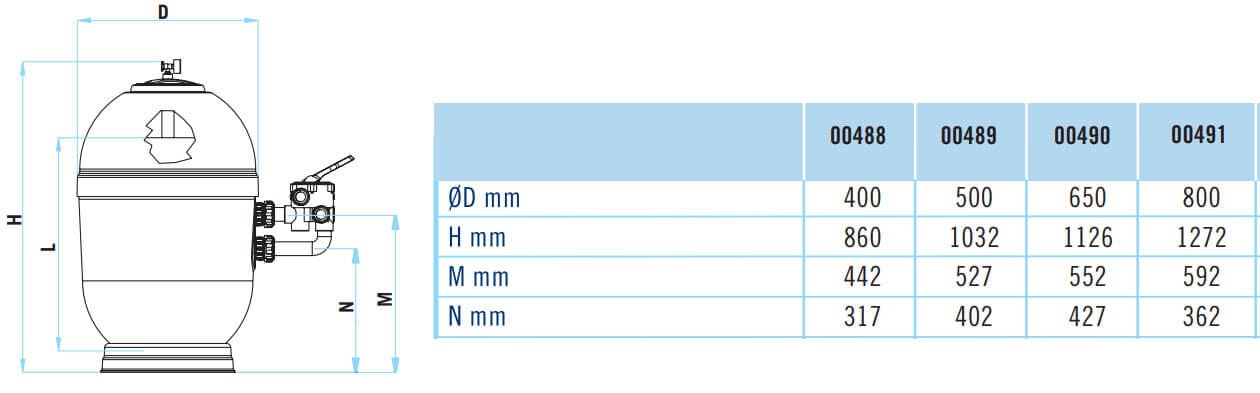

Product dimensions, mm
1272/ 800
Flow rate, m3/h
24
Connection
1 ½“
Recommended pool volume, m3
192
Sand capacity, kg
445

Astral pool RapidPool filter with side mounted valve D800mm 24m3/h

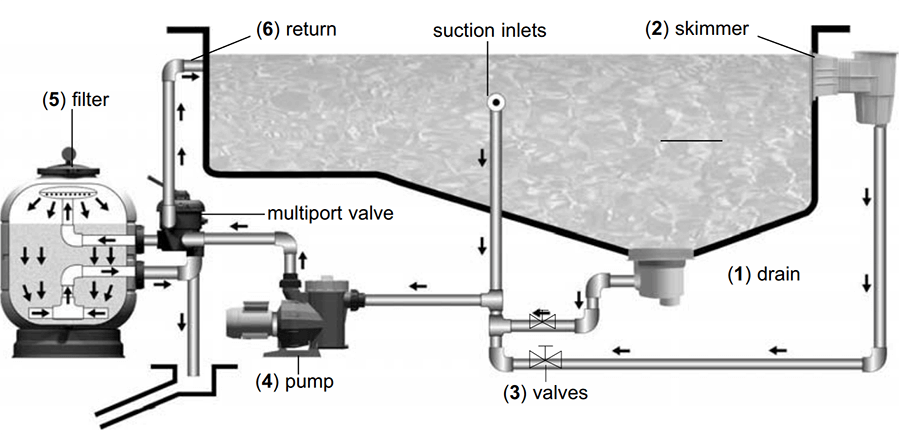

Incorporation of a pool filter is a vital part of the pool maintenance regime. A pool filter system gets the dirt out and helps leave your pool water sparkling and clear. Works best for commercial and private, as it pulls and clears the dirt and debris that is found on the water line of the water especially when it’s in the outdoors. The circulation of the pool water through the filter basket will take out leaves and other larger items.

The filter will remove dirt and debris that is in suspension, but anything that has settled to the bottom of your pool or become attached to the sides will have to be vacuumed or brushed off. The Rapid pool filter is a high-performance laminated filter, made of polyester reinforced with fibreglass. Fitted with pressure gauge, manual water drains, manual water drain cock, automatic and manual air vent cock.

Product weighs up to 45KG, with a height of 1272mm.

Features: includes Red, PP base, screw-free lid, cap for sand and water discharge, pressure gauge and air purge incorporated in the lid and side selector valve. The product is an excellent version of the current filters with a sand capacity of 445KG.; hence, it is recommended to use a pump of the equal flow rate as the filter (24m3). Below are some of the unique features for the given product.

Technical Featrures:

  • Connections: 2 Inches
  • Comfort: The Rapid pool range of laminated sand filters provides high performance in the filtration of your pool by incorporating a larger filter bed, thus achieving a better filtration quality.
  • Accessibility: Incorporates a plug for emptying sand and water
  • Filtration Speed: Maximum filtration speed: 50 m3/h.
  • Maximum working pressure: 2.5 bar
  • Multipurpose Valve: The Valves are made of ABS material with heavy-duty plastic handle. The valve allows you to select the 6 features available for operating functions to cover all the necessary operations needed in any swimming Product Features: pools filtration.,
    Six-way side selector valve for filtering, washing, rinsing, recirculation, emptying and closing operations.
  • The pool volume for the given filter is up to 192m3
  • Pump Compatibility: Flow rate 24m3
  • Sand Compatibility: Both sand and Activated filter media compatible.
  • Durability – designed for its superior durability.
  • Cost effective: Commercial multiport valves are and space-saving
  • Back wash indicator: The pump comes with a fitted with a pressure gauge and when this rises to 0.5 bar above its normal clean operating pressure, then it’s time to backwash your filter

Maintenance of Astral pool RapidPool filter

One of the most important features of the valve is backwashing the filter. The pressure of the water passing may gradually decrease in time due to the dirt and other particles. The back wash indicator can be identified using the fitted pressure gauge, when this rises to 0.5 bar above its normal clean operating pressure. This indicates for a back wash process. It is best to have it done once in 7 days.

Can filter pool up to around 200m3 easily, high capacity filter with valve included.
Stalin 09.05.2023
Response
I appreciate the simplicity of the sand filter system. It's easy to operate and maintain, and the sand media only needs to be replaced every few years, making it a cost-effective choice in the long run.
Bran 25.05.2023
Response
Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
Brand
AstralPool
Flow rate, m3/h
24
Valve type
side mounted
Product dimensions, mm
1272/ 800
Pool Filter Systems
Sand pool filters
Connection
1 ½“
Item Weight, kg
45
Recommended pool volume, m3
192
Sand capacity, kg
445
Grain size, mm
0.5 - 1.0
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h
on request
on request
Can filter pool up to around 200m3 easily, high capacity filter with valve included.
Stalin 09.05.2023
Response
I appreciate the simplicity of the sand filter system. It's easy to operate and maintain, and the sand media only needs to be replaced every few years, making it a cost-effective choice in the long run.
Bran 25.05.2023
Response
Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h
AstralPool RapidPool filter with side mounted valve D800 mm 24 m3/h
on request
on request

We at WaterStore.ae promise quickest possible delivery of your order.

Our management will get in touch with you as soon as your order is placed to give you more information about the delivery conditions specific to your location.

We ship to all areas of the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaima, and Fujairah.

WaterStore.ae aims to give customers the greatest shopping experience possible.

Please contact our customer care staff for assistance in this situation if you are not happy with the product's quality or even if the product just did not meet your expectation.
