Zodiac eXPERT 40 Standard salt chlorinator for pools, up to 180 m3

Zodiac eXPERT 40 Standard salt chlorinator for pools, up to 180 m3

A saltwater chlorination process produces silky-smooth, clean, and clear water. Natural sanitization methods such as salt chlorination are an alternative to harsh chemical disinfectants. In addition to being healthy, salt water has fewer chloramines produced, thus eliminating the harsh chemical smell.

A salt chlorine generator can only function when the required salinity level is reached. Through the use of electrodes and a salt electrolysis technique, chlorine is produced in a unique cell.  This method of pool sanitization is very successful and economical.

With a variety of choices for treating different pool volumes, the Zodiac eXPERT salt electrolyzer offers adaptability in salt water treatment. It offers complete water treatment capabilities, including pH modulation and automatic chlorination control through water balance management. It is quick to set up and has an easily readable display.

Product Specifications:

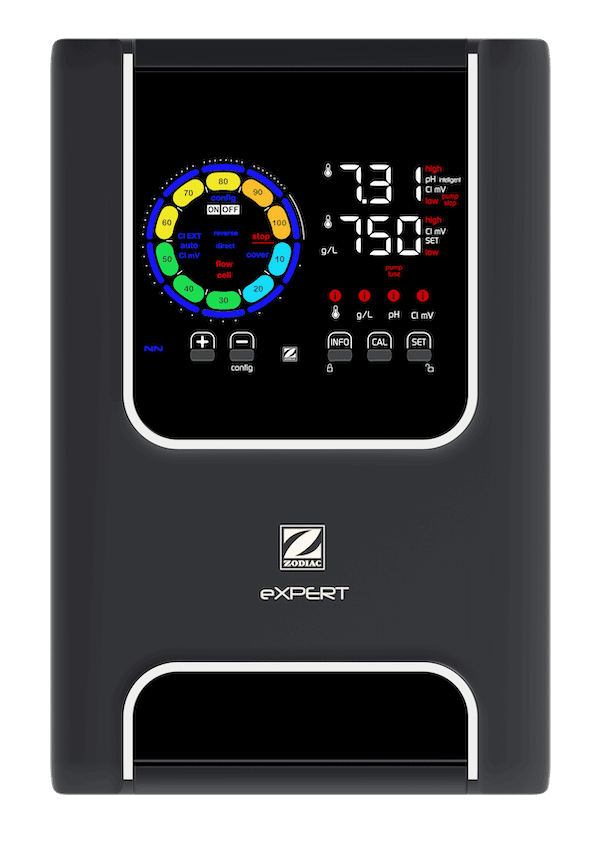

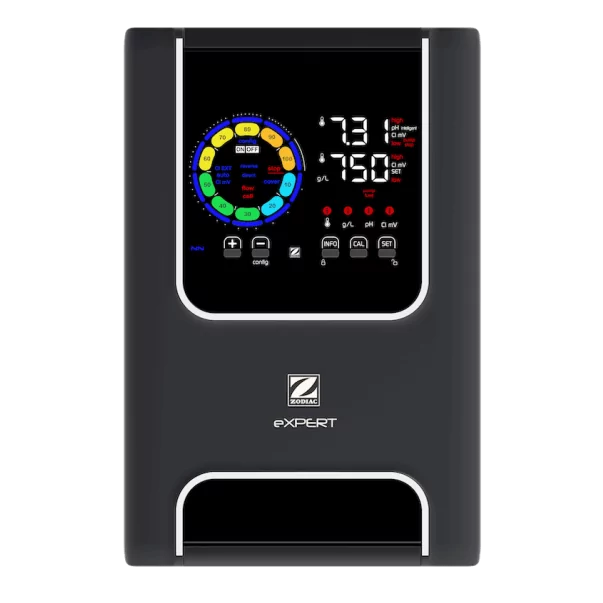

• Display: Backlit touchscreen + LCD
• Accessibility: Can be controlled remotely with the NN smartphone applications

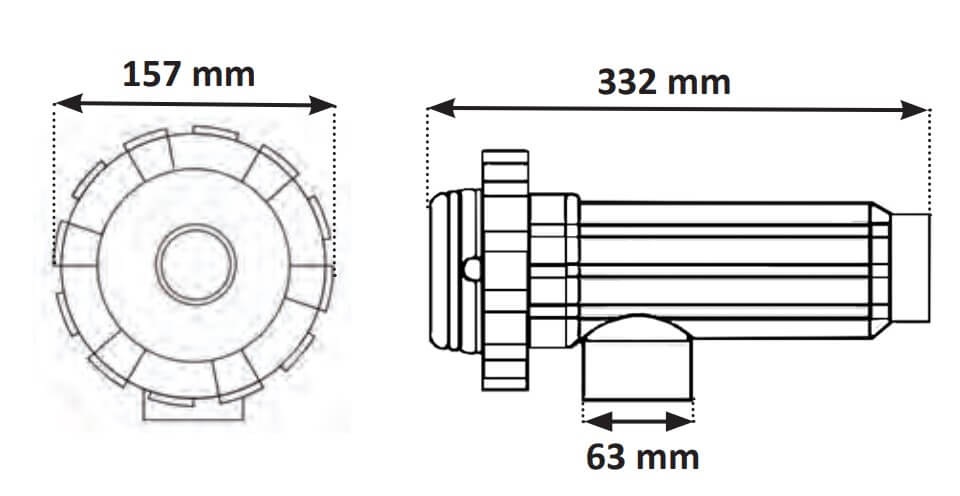

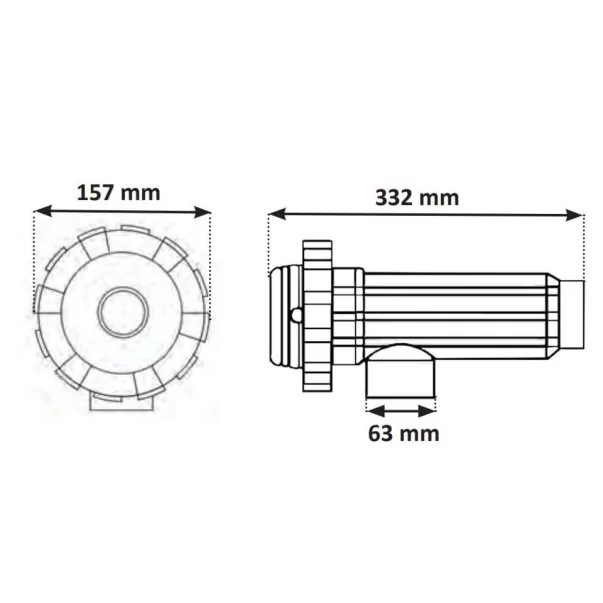

• Cell Connection: Ø63 mm (use Ø50mm PVC reducers for 50 mm pipe)
• Salinity: 4 g/l
• Chlorine output: 40 g/h
• Pool Volume: 180 m3
• Compatibility: DN50 mm, DN63 mm, 1½'' (48 mm), 2'' (61 mm)

Safety features:

• "Low salt" warning light: Production is decreased to safeguard the electrode
• "No flow" indicator light: Production is halted if parameters are not optimal

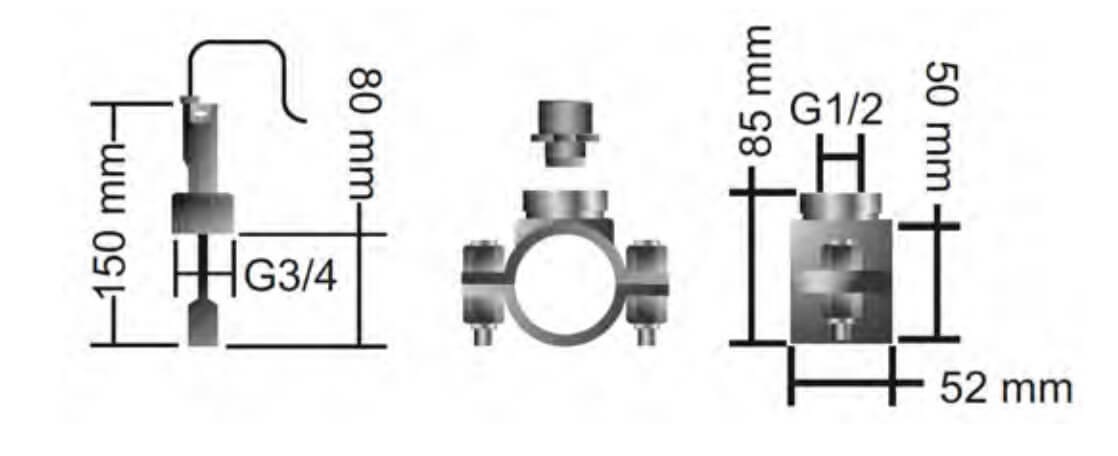

• Mechanical flow detector.

Box inclusion:

• Installation kit
• Flow switch installation kit
• Electrolysis cell
• Wall-mounting bracket kit

Recommendations:

• We advise using salt (sodium chloride) in accordance with standard EN 16401 to ensure proper operation of the chlorinator and equipment protection.
• Do not add salt directly in the skimmer(s).
• It is important to only turn on the device once the salt has completely dissolved in the pool.
