AstralPool Delta 1000 side mounted filter, 650 mm, 12 m3/h, nozzle collector plate

AstralPool Delta 1000 side mounted filter, 650 mm, 12 m3/h, nozzle collector plate

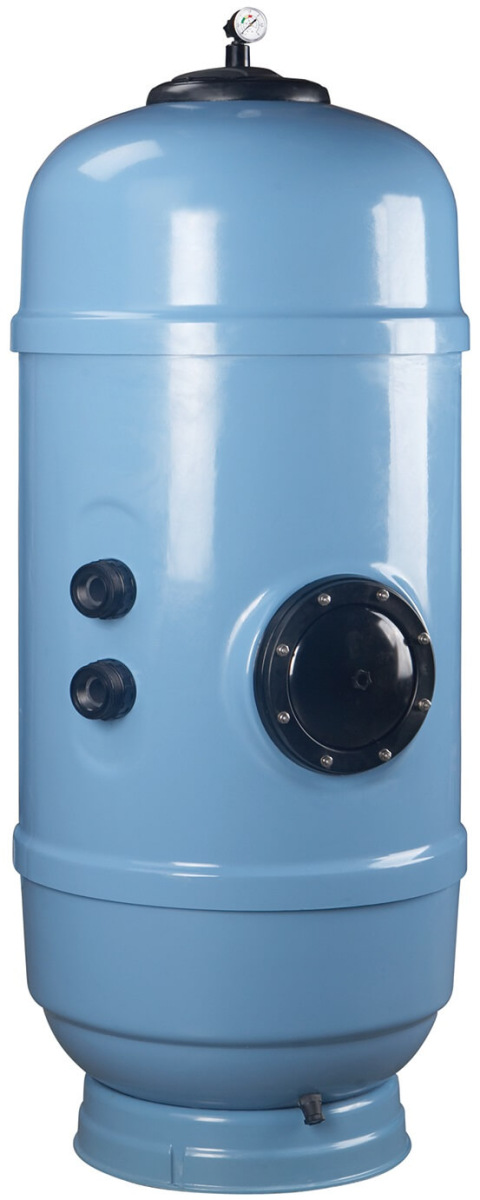

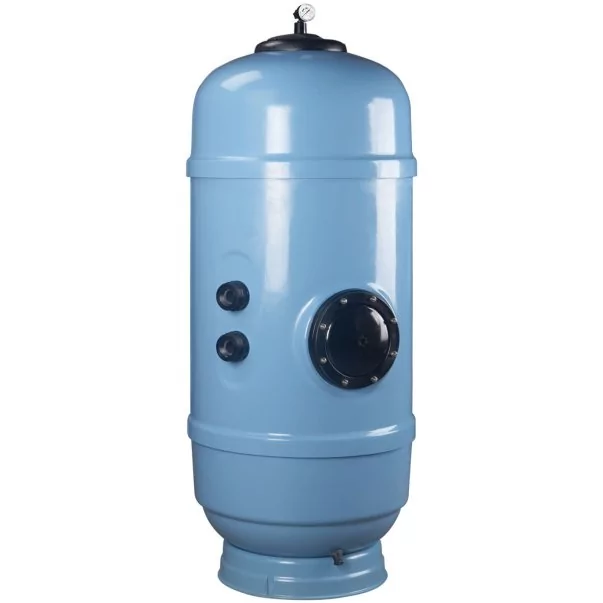

The AstralPool Delta 1000 filter is a high-quality filtration system designed to meet the highest standards of filtration requirements as per the EN 16713-1 standard. This filter is laminated in polyester and fibreglass, making it durable and long-lasting.

The filter bed of the AstralPool Delta 1000 filter is 1 meter, which ensures that it can efficiently filter large volumes of water. The filter bed is made up of high-quality materials that are designed to withstand the harsh chemicals used in swimming pools.

The AstralPool Delta 1000 filter is available with two types of collector systems: an arm collector system and a plate collector system.

The plate collector system of the AstralPool Delta 1000 filter is designed to ensure that water is evenly distributed throughout the filter bed. The plates are made of high-quality materials that are designed to withstand the harsh chemicals used in swimming pools.

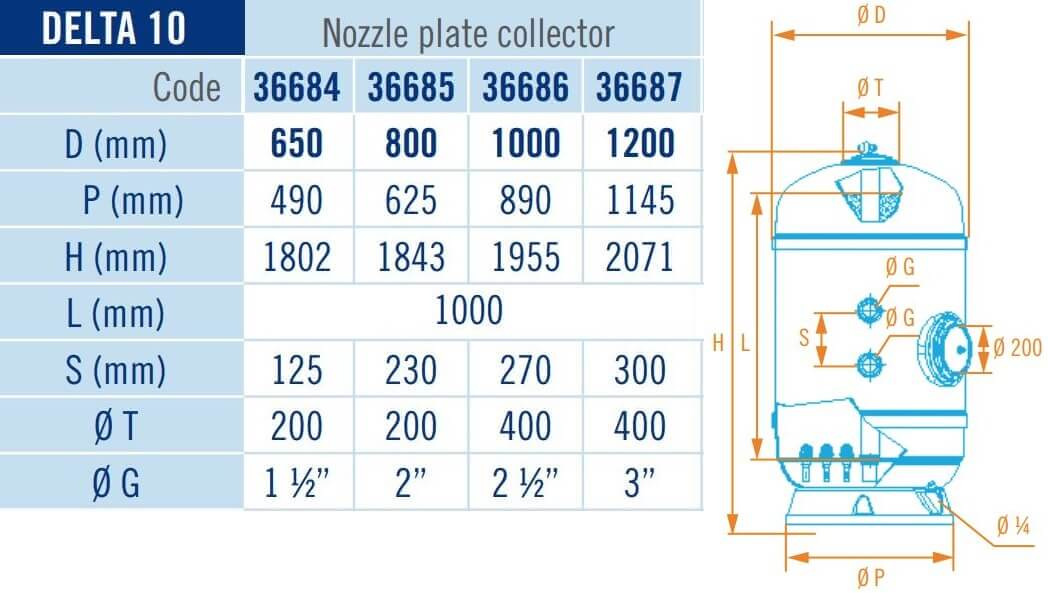

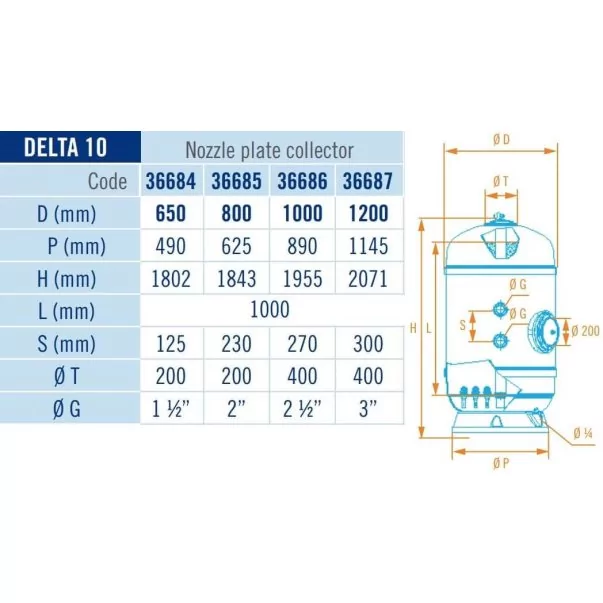

Specifications of AstralPool Delta 1000:

• Maximum pressure: 2.5 kg/cm2
• Nozzle collector plate.
• Nozzle slots 0.5 mm
• There is a DN200 lateral manhole with a bolt down cover.
• The filter interior is finished with natural resin.
• The Delta 10 model has an optional methacrylate sight glass. Multiple sight glasses can be added if desired.
• Inner pipes and fittings are made from PVC, PP, and ABS.
• The filter lid includes a pressure gauge.
• Gaskets are made from EPDM and screw fittings are made from stainless steel.
• The filter also has a vinylester option. In this case, the internal layer is made from vinylester resin (and not just the top layer in contact with water), which provides a maximum chemical resistance of 0.4 ppm of ozone dissolved and a maximum temperature of 50°.
• The filter comes in RAL 5024 blue.

Overall, the AstralPool Delta 1000 filter is a reliable and efficient filtration system that is perfect for both residential and commercial swimming pools. Its high-quality construction, efficient filtration system, and adjustable collector systems make it an excellent choice for anyone looking for a top-of-the-line filtration system.
