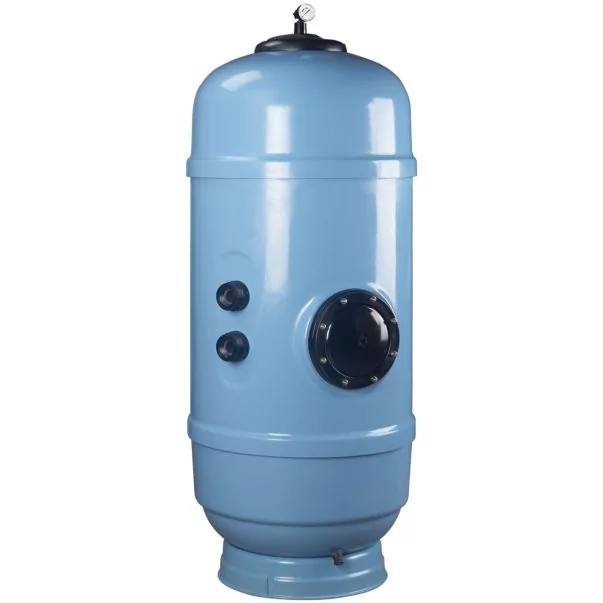

AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate Photo №1

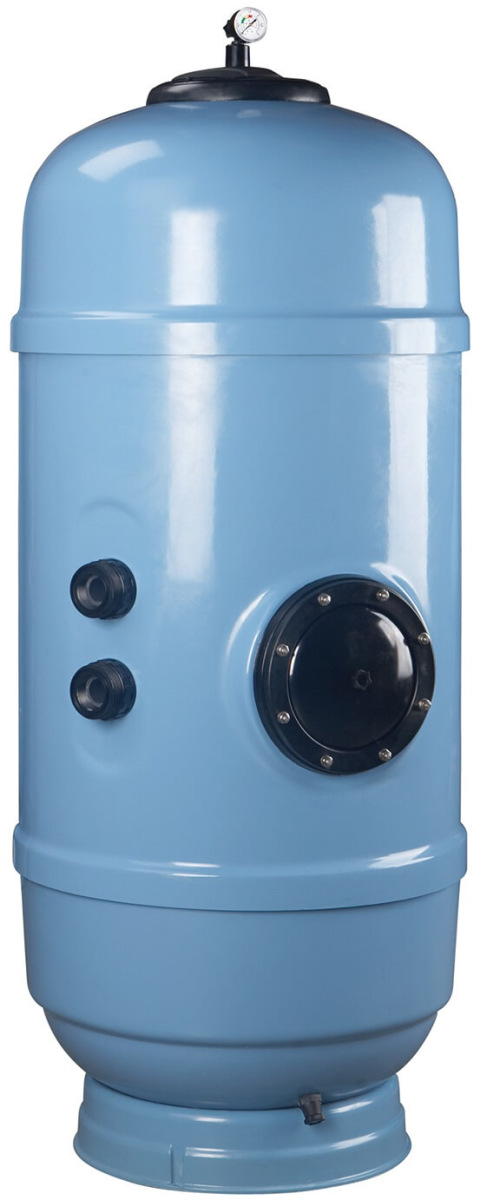

AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate Photo №2
Code: 36685

AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate

Code: 36685
AstralPool
Valve type
side mounted
Product dimensions, mm
800
Flow rate, m3/h
20
Connection
2"
Sand capacity, kg
640

AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate

The AstralPool Delta 1000 filter is a high-quality filtration system designed to meet the highest standards of filtration requirements as per the EN 16713-1 standard. This filter is laminated in polyester and fibreglass, making it durable and long-lasting.

The filter bed of the AstralPool Delta 1000 filter is 1 meter, which ensures that it can efficiently filter large volumes of water. The filter bed is made up of high-quality materials that are designed to withstand the harsh chemicals used in swimming pools.

The AstralPool Delta 1000 filter is available with two types of collector systems: an arm collector system and a plate collector system.

The plate collector system of the AstralPool Delta 1000 filter is designed to ensure that water is evenly distributed throughout the filter bed. The plates are made of high-quality materials that are designed to withstand the harsh chemicals used in swimming pools.

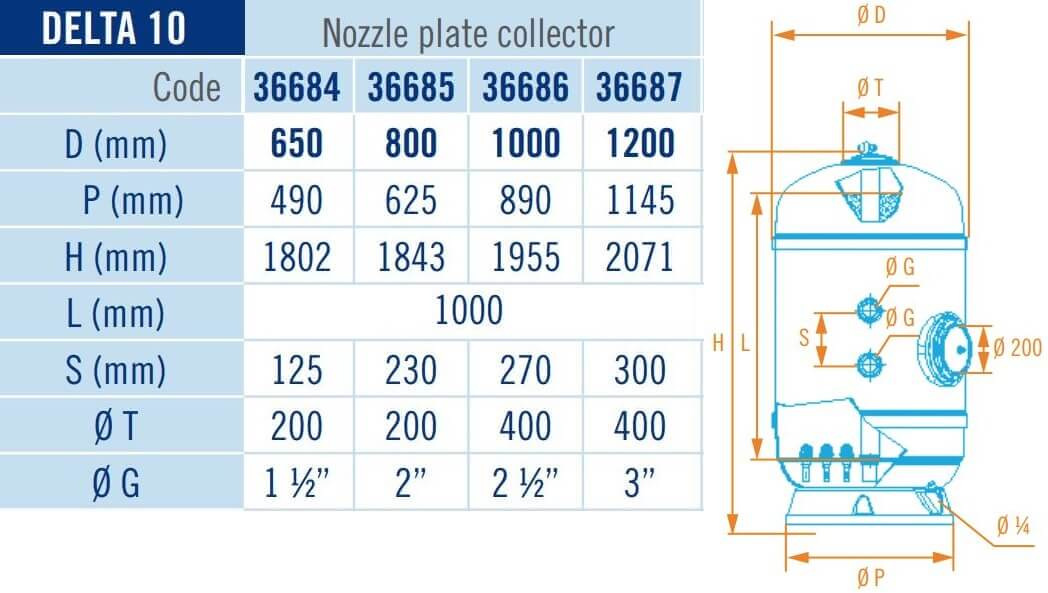

Specifications of AstralPool Delta 1000:

  • Maximum pressure: 2.5 kg/cm2
  • Nozzle collector plate.
  • Nozzle slots 0.5 mm
  • There is a DN200 lateral manhole with a bolt down cover.
  • The filter interior is finished with natural resin.
  • The Delta 10 model has an optional methacrylate sight glass. Multiple sight glasses can be added if desired.
  • Inner pipes and fittings are made from PVC, PP, and ABS.
  • The filter lid includes a pressure gauge.
  • Gaskets are made from EPDM and screw fittings are made from stainless steel.
  • The filter also has a vinylester option. In this case, the internal layer is made from vinylester resin (and not just the top layer in contact with water), which provides a maximum chemical resistance of 0.4 ppm of ozone dissolved and a maximum temperature of 50°.
  • The filter comes in RAL 5024 blue.

Overall, the AstralPool Delta 1000 filter is a reliable and efficient filtration system that is perfect for both residential and commercial swimming pools. Its high-quality construction, efficient filtration system, and adjustable collector systems make it an excellent choice for anyone looking for a top-of-the-line filtration system.

Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
Brand
AstralPool
Flow rate, m3/h
20
Valve type
side mounted
Product dimensions, mm
800
Pool Filter Systems
Sand pool filters
Connection
2"
Item Weight, kg
111
Sand capacity, kg
640
Grain size, mm
0.4 - 0.8
Weight, kg
78
AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
on request
on request
Tell us more about your experience
Write a review
Your name*
E-mail*
Write your product review*
AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
on request
on request

We at WaterStore.ae promise quickest possible delivery of your order.

Our management will get in touch with you as soon as your order is placed to give you more information about the delivery conditions specific to your location.

We ship to all areas of the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaima, and Fujairah.

WaterStore.ae aims to give customers the greatest shopping experience possible.

Please contact our customer care staff for assistance in this situation if you are not happy with the product's quality or even if the product just did not meet your expectation.

More like these
Add to comparison
Hayward ProSeries HB Top mounted sand filter for pool, 895 mm, 30 m3/h Hayward ProSeries HB Top mounted sand filter for pool, 895 mm, 30 m3/h
Brand: Hayward,Flow rate, m3/h: 30,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Top mounted sand filter for pool, 762 mm, 22 m3/h Hayward ProSeries HB Top mounted sand filter for pool, 762 mm, 22 m3/h
Brand: Hayward,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Top mounted sand filter for pool, 612 mm, 14 m3/h Hayward ProSeries HB Top mounted sand filter for pool, 612 mm, 14 m3/h
Brand: Hayward,Flow rate, m3/h: 14,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Top mounted sand filter for pool, 511 mm, 10 m3/h Hayward ProSeries HB Top mounted sand filter for pool, 511 mm, 10 m3/h
Brand: Hayward,Flow rate, m3/h: 10,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Top mounted sand filter for pool, 401 mm, 6 m3/h Hayward ProSeries HB Top mounted sand filter for pool, 401 mm, 6 m3/h
Brand: Hayward,Flow rate, m3/h: 6,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Side mounted sand filter for pool, 895 mm, 30 m3/h Hayward ProSeries HB Side mounted sand filter for pool, 895 mm, 30 m3/h
Brand: Hayward,Valve type: side mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Side mounted sand filter for pool, 762 mm, 22 m3/h Hayward ProSeries HB Side mounted sand filter for pool, 762 mm, 22 m3/h
Brand: Hayward,Flow rate, m3/h: 22,Valve type: side mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Side mounted sand filter for pool, 612 mm, 14 m3/h Hayward ProSeries HB Side mounted sand filter for pool, 612 mm, 14 m3/h
Brand: Hayward,Flow rate, m3/h: 14,Valve type: side mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HB Side mounted sand filter for pool, 510 mm, 10 m3/h Hayward ProSeries HB Side mounted sand filter for pool, 510 mm, 10 m3/h
Brand: Hayward,Flow rate, m3/h: 10,Valve type: side mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Hayward ProSeries HI Advanced top mounted sand filter for pool, 600 mm, 14 m3/h Hayward ProSeries HI Advanced top mounted sand filter for pool, 600 mm, 14 m3/h
Brand: Hayward,Flow rate, m3/h: 14,Valve type: top mounted Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Frequently bought together
Add to comparison
AstralPool threaded floor return inlet for concrete pools, 50 mm, Light grey AstralPool threaded floor return inlet for concrete pools, 50 mm, Light grey
Brand: AstralPool,Inlet mounting: bottom,Material: ABS plastic Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Zodiac RA 6700 iQ automatic vacuum cleaner for pools, up to 15 m Zodiac RA 6700 iQ automatic vacuum cleaner for pools, up to 15 m
Brand: Zodiac,Type: Robotic,Cleaning mode: Floor/ wall/ waterline,Pool length, m: 15 Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
Aqua Industrial \ Aqua Industrial \"Lusso\" stainless steel return adjustable floor inlet for concrete pools
Brand: Aqua Industrial Group,Inlet mounting: bottom,Material: Stainless steel Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
AstralPool Standard skimmer 15 L for concrete pools, Anthracite grey AstralPool Standard skimmer 15 L for concrete pools, Anthracite grey
Brand: AstralPool,Pool type: concrete,Material: ABS plastic Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison
 Aqua Technopool HC 897 membrane dosing pump for swimming pool, 10 l/h Aqua Technopool HC 897 membrane dosing pump for swimming pool, 10 l/h
Brand: Aqua Industrial Group,Pump type: membrane Category: AstralPool Delta 1000 side mounted filter, 800 mm, 20 m3/h, nozzle collector plate
Add to comparison

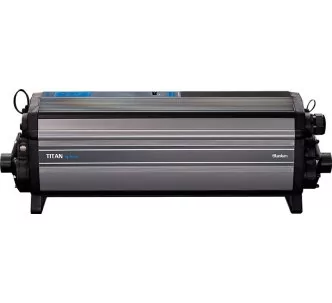

Elecro Engineering Titan Optima 60 kW electric pool heater, 380-400 V Elecro Engineering Titan Optima 60 kW electric pool heater, 380-400 V
