AstralPool Delta 1200 side mounted filter, 1200 mm, 30 m3/h, nozzle collector plate

AstralPool Delta 1200 side mounted filter, 1200 mm, 30 m3/h, nozzle collector plate

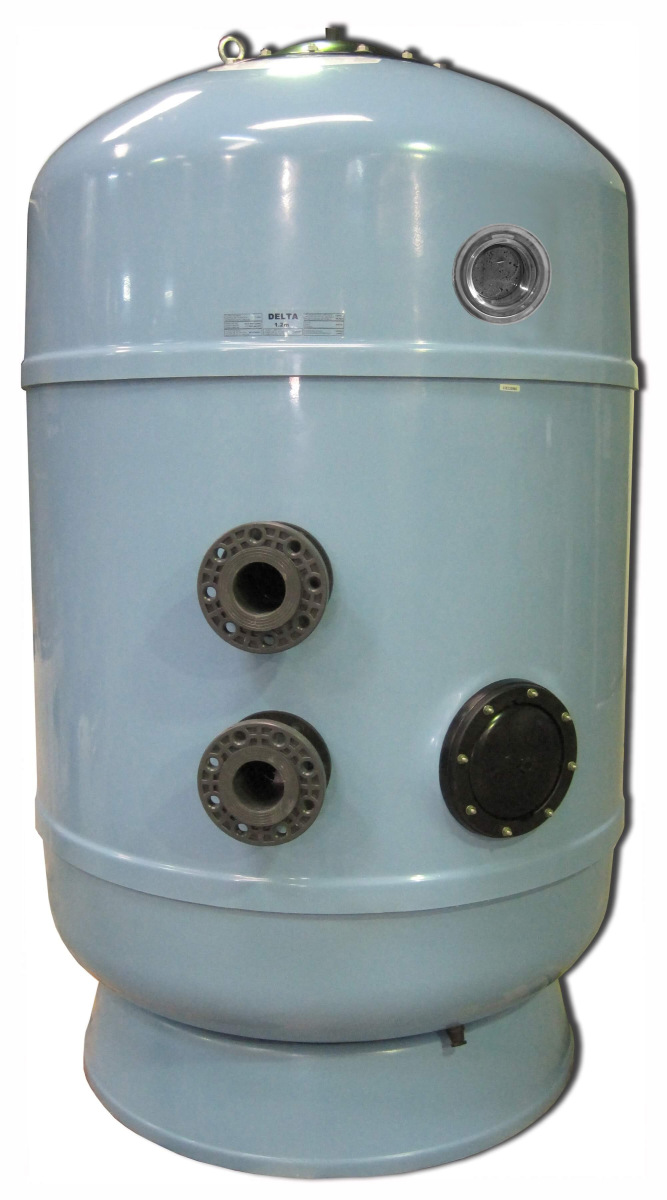

The AstralPool Delta 1200 filter is a top-quality filter laminated in polyester and fibreglass, designed for superior filtration performance in residential and commercial swimming pools. With a filter bed diameter of 1200 mm, this filter offers an ample surface area to capture and remove debris and impurities from pool water.

The Delta 1200 filter is available with two collector systems, the arm collector system, and the plate collector system, providing users with a choice to fit the filtration system to their pool requirements. The arm collector system is ideal for larger pools, where a high flow rate is needed to ensure efficient filtration, while the plate collector system is better suited for smaller pools that require lower flow rates.

The filter bed is made of high-quality materials that are durable and resistant to corrosion, ensuring that the filter lasts for many years without needing replacement. The filter bed has a depth of 1.2 m, which provides an excellent filtration rate, ensuring that even the smallest debris and particles are removed from the pool water.

This filter meets the filtration requirements set forth by standard EN 16713-1, ensuring that it is a reliable and efficient filter for maintaining clean and clear pool water. Additionally, the filter is easy to install and maintain, with a simple backwashing process that ensures the filter remains clean and efficient throughout its lifespan.

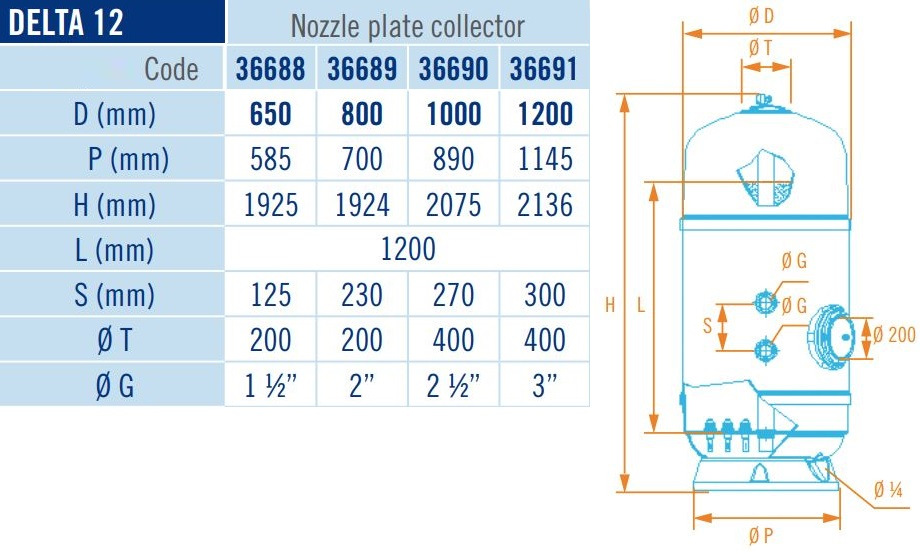

Specifications of AstralPool Delta 1200 filter:

• Maximum pressure: 2.5 kg/cm2
• Nozzle collector plate.
• Nozzle slots 0.5 mm
• The AstralPool Delta 1200 filter is available in two lid options: a quick-locking system for the 650 and 800 models and a bolt down DN 400 lid for the 1000 and 1200 models.
• It features a DN200 lateral manhole with a bolt down cover and a natural resin finish on the filter interior.
• The filter also includes an EASTAR sightglass as standard, with the option for additional sight glasses upon request.
• The inner pipe and fittings are made of PVC, PP, and ABS, and the filter lid contains a pressure gauge.
• Gaskets are made of EPDM, and all screw fittings are made of stainless steel.
• The filter is also available with a Vinylester option, featuring an internal layer made from vinylester resin for enhanced chemical resistance and a maximum temperature of 50°.
• The filter is painted in RAL 5024 blue.

Overall, the AstralPool Delta 1200 filter is an excellent choice for those seeking a high-performance, durable, and efficient pool filter that meets the highest standards of filtration performance. With its choice of collector systems and its compliance with EN 16713-1, this filter is a top choice for pool owners and professionals looking to maintain optimal pool water quality.
