AstralPool Norma laminated filters for swimming pools 1000 Ø, 23 m3/h

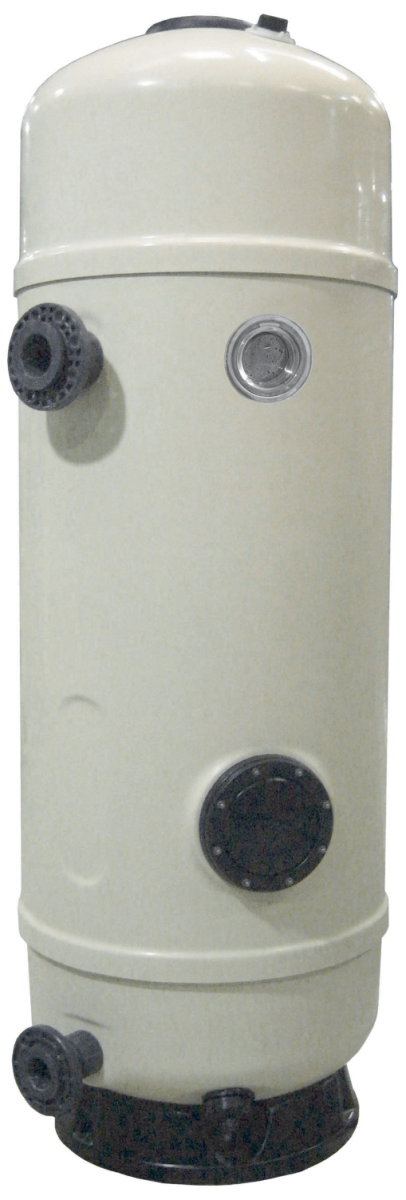

AstralPool Norma laminated filters for swimming pools, 1000 Ø

The Norma filtration from AstralPool is the pinnacle of effectiveness and toughness when it comes to maintaining crystal-clear pool water. The innovative technology used in these laminated filters, which are made especially for swimming pools, guarantees maximum filtration performance with the least amount of upkeep. Norma filters are made of a premium multi-layered fiberglass-reinforced polyester (GRP) material that is UV and corrosion resistant and can endure harsh weather conditions. The filter is an excellent option for high-pressure filtering systems because of the laminated structure, which also increases the filter's structural strength, stability, and resistance to pressure. There are several versions of AstralPool Norma filters to accommodate various pool sizes, water capacities, and flow rates.

These filters can remove even the smallest debris particles thanks to their precisely designed filter elements, leaving your pool water pristine and clean. The user-friendly design of the filters makes it reasonably simple to use and maintain, with little backwashing needed. The top-mount valve also offers an accessible way to swiftly and effectively clean the filter elements. Over time, this results in less energy consumption and fewer filter replacements, which eventually results in substantial time and financial savings for you. AstralPool Norma filters are the finest available when it comes to pool filtration. These laminated filters offer a truly innovative method of pool filtration because they strike the ideal balance between performance, longevity, and low upkeep.

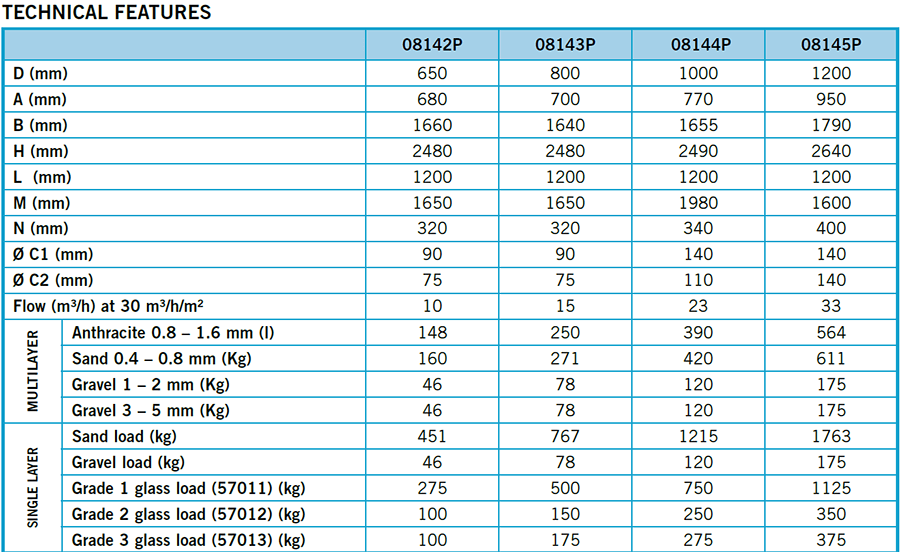

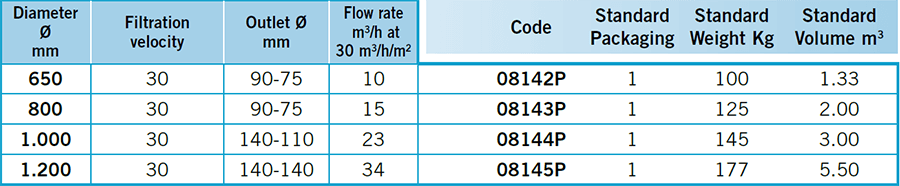

Technical Features of AstralPool Norma filters laminated filters for swimming pools:

• Maximum Pressure: 2.5 bar
• plate collector system: 0.5 mm
• Side mouth : 400 Ø
• Sand loading top lid: 200 Ø
• Fittings : pressure gauge, air purge and manual water drain
• Diameter:1000 Ø
• Filtration Velocity: 30
• Outlet: 90-75 Ø
• Flow rate : 23 m3/h
• Weight : 145 kg
• Compatibility : sand and quartz
