AstralPool Vic side mounted filter, 1800 mm, 50 m3/h

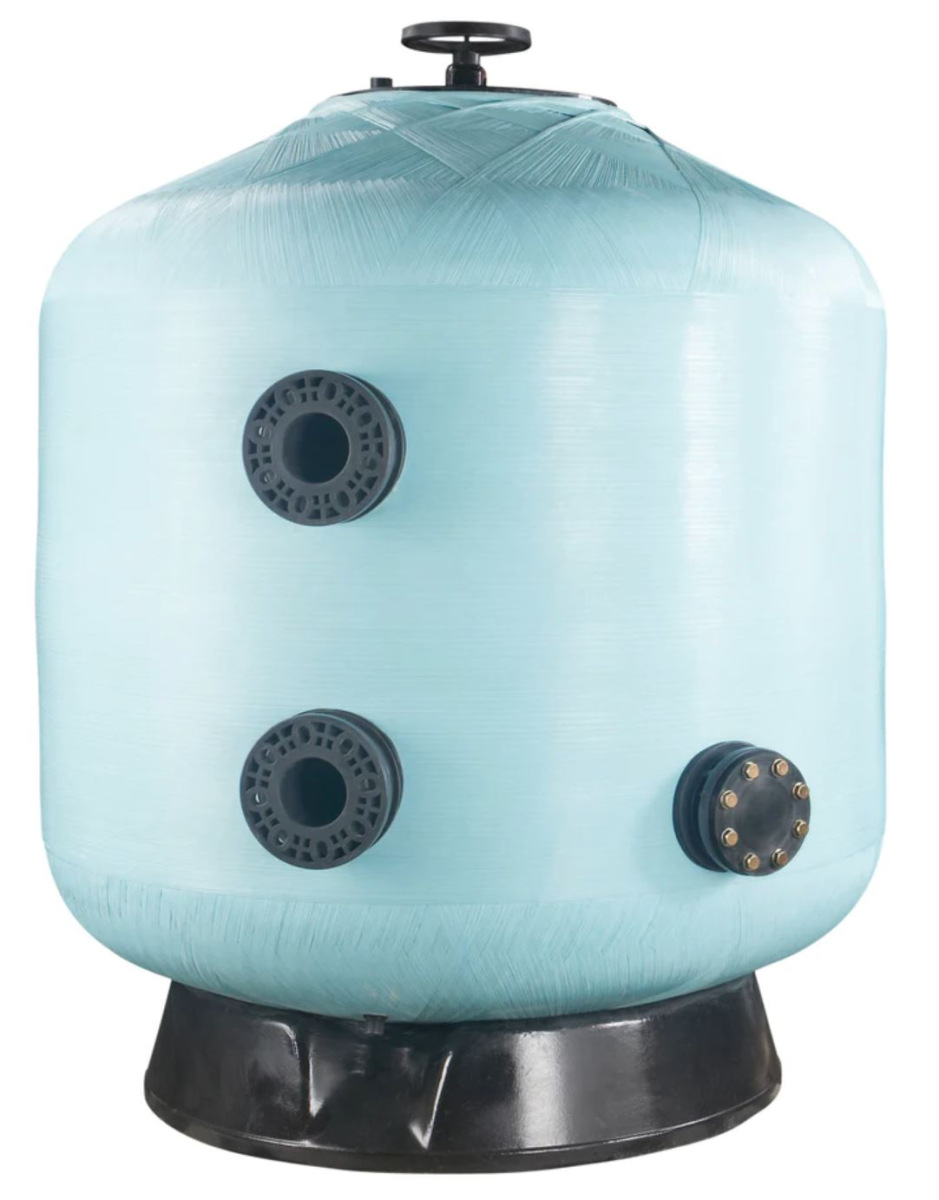

The AstralPool Vic pool filter is an industrial-grade filter that offers reliable and efficient filtration for swimming pools. It features bobbin wound filters that are specifically designed to handle different filtration velocities. These filters come with corresponding flange connections that make installation quick and easy.

Features of the AstralPool Vic pool filter

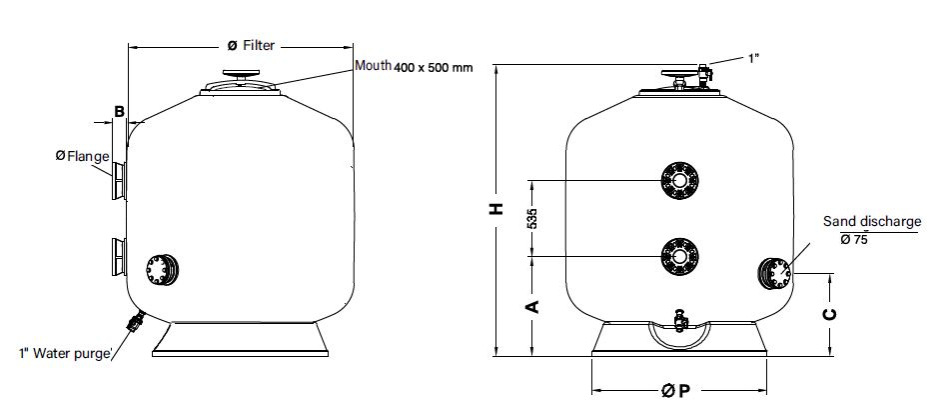

• New top cover system, which has a quick-closing system and a 400 x 500 mm opening. This makes it easy to access the filter for maintenance and cleaning. The cover also features an air relief valve, which helps to eliminate air from the filter, ensuring efficient filtration.
• The collector arms of the AstralPool Vic pool filter are injected in ABS, with lengths ranging from 90 mm to 525 mm, depending on the specific filter. These arms have no joints, which helps to reduce the risk of leaks.
• Thanks to their greater diameter, the collector arms offer a reduced head loss, improving the filter's efficiency.
• The AstralPool Vic pool filter boasts a 90mm collector tubing made of PVC, which includes a 1" connection that allows for quick water purge and air relief. To enhance water distribution and avoid sand from entering into the laterals during backwashing, the freeboard or the space between the top sand layer and the diffuser head has been expanded.
