Atecpool Electa top mounted sand filter, 450 mm, 7 m3/h

Atecpool Electa top mounted sand filter, 450 mm, 7 m3/h

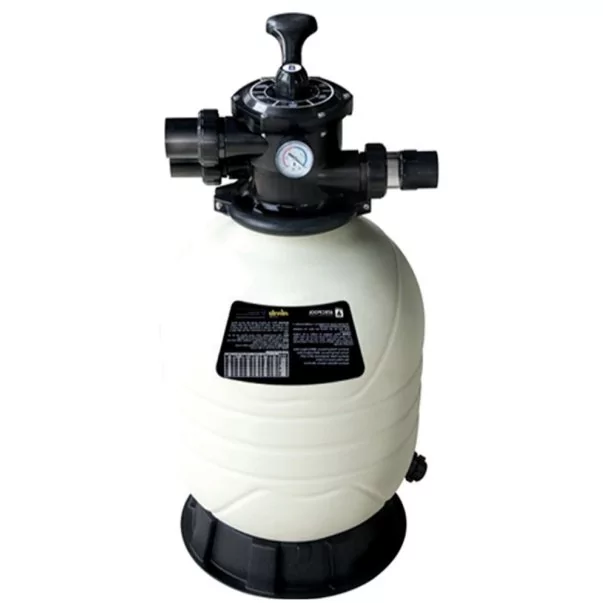

The Atecpool Electa top-mounted sand filter is a cutting-edge filtration system that combines innovative design and advanced technology to deliver exceptional performance and crystal clear water.

Features of the Atecpool Electa top-mounted sand filter

• One-Piece Clamp with Screw-Type Lock: The Electa filter features a unique one-piece clamp with a screw-type lock mechanism. This design simplifies the installation process and allows for tool-free servicing, making maintenance hassle-free.
• High Pressure and Temperature Resistance: The Electa filter is built to withstand high pressure, with a maximum working pressure of 2.5 bar. It can also handle temperatures up to 50ºC (122ºF), ensuring durability and reliability in various conditions.
• Universal Standard Union Connection: The filter is equipped with a universal standard union connection, making it compatible with a wide range of plumbing systems. This ensures easy integration into existing setups or new installations.
• ABS Lateral: The Electa filter comes with an ABS lateral, which is an integral component of the filtration system. The ABS lateral aids in distributing the water evenly across the filter media, optimizing the filtration process.
• Recommended Media Size: The suggested size of media for optimal performance with the Electa filter is between 0.5 and 0.8 mm. Using media within this range helps achieve efficient filtration and maximizes the lifespan of the filter.
• Multiport Valve with 6-Way Functions: The Electa filter is equipped with a multiport valve that offers six different functions. These functions include filtration, backwash, rinse, waste, recirculation, and closed positions. The multiport valve provides versatility and flexibility in managing the filtration process.
• Easy-to-Read Pressure Gauge: The Electa filter features an easy-to-read pressure gauge, allowing for convenient inspection of the system's operating pressure. Monitoring the pressure helps ensure optimal performance and aids in identifying any potential issues.
• Maximum Filtration Velocity: The Electa filter has a maximum filtration velocity of 50 m3/hr/m2. This specification indicates the maximum flow rate at which the filter can effectively remove impurities and provide efficient filtration.

The Atecpool Electa top-mounted sand filter combines durability, ease of use, and advanced features to deliver superior filtration performance. With its high-quality construction and user-friendly design, it offers a reliable solution for achieving and maintaining pristine pool water.
