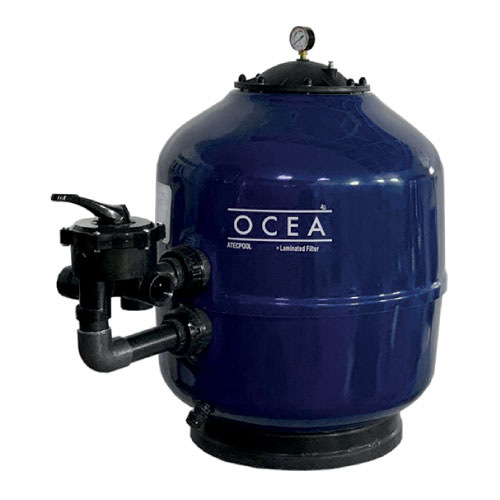

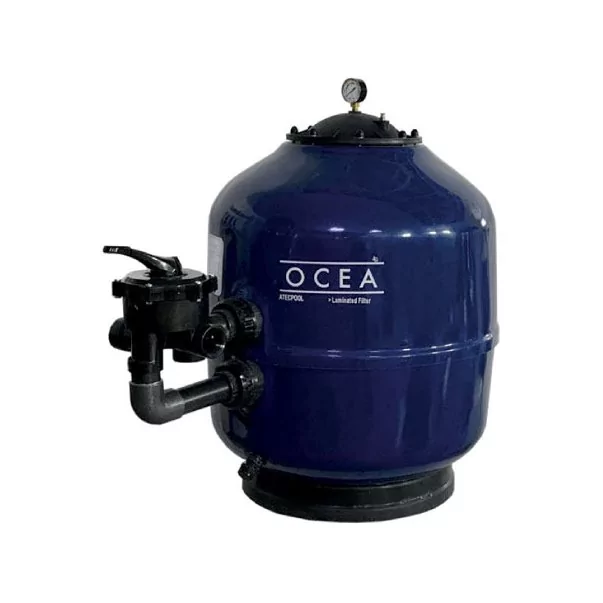

Atecpool Ocea side mounted sand filters for swimming pool Ø950mm, 32m3/h

Atecpool Ocea side mounted sand filters for swimming pool Ø950mm

Atecpool Ocea side mounted valve Sand Filters are a type of filtration system designed for swimming pools. These filters are manufactured by Atecpool, a company specializing in pool equipment and accessories. Ocea Laminated Filter Specifications Atecpool innovative design and advanced technology offers superior filtration performance and crystal clear water. Body in laminated Fiberglass and reinforced PE making the filter totally anti-corrosive.Here are some key features and information about Atecpool Ocea side Valve Mounted Sand Filters:

• Design: Atecpool Ocea side Valve Mounted Sand Filters feature a side-mounted multiport valve, which provides convenient access for filter operation, maintenance, and backwashing.
• Filtration Process: These filters utilize sand as the primary filtering media. The pool water passes through the filter tank, where the sand captures and removes particles, debris, and impurities from the water.
• Efficient Filtration: Atecpool Ocea side Valve Mounted Sand Filters are designed to provide efficient filtration for swimming pool water. They effectively trap dirt, leaves, algae, and other contaminants, helping to keep the pool water clean and clear.
• Valve Functions: The multiport valve on side of the filter allows for various functions such as filtration, backwashing (reverse flow to clean the filter media), rinsing (to settle the sand after backwashing), recirculation (bypassing the filter), waste (for removing debris without filtering), and closed (to shut off the flow).
• Durability: These filters are constructed using durable materials to withstand the demands of pool environments. They are designed to be resistant to corrosion, chemicals, and UV rays, ensuring longevity and reliability.

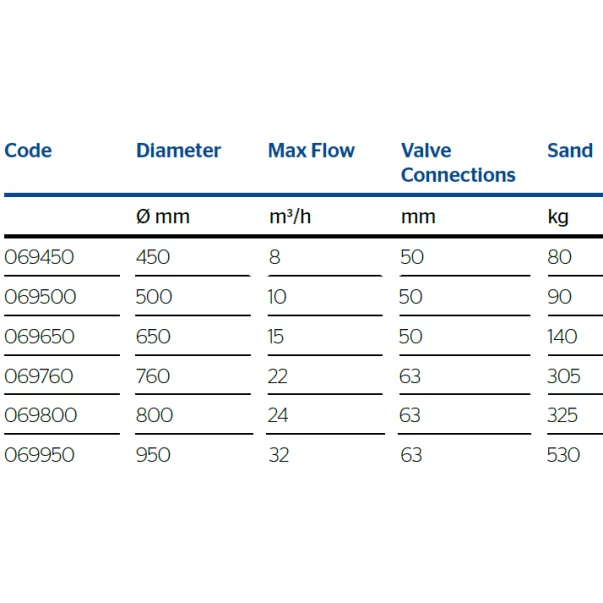

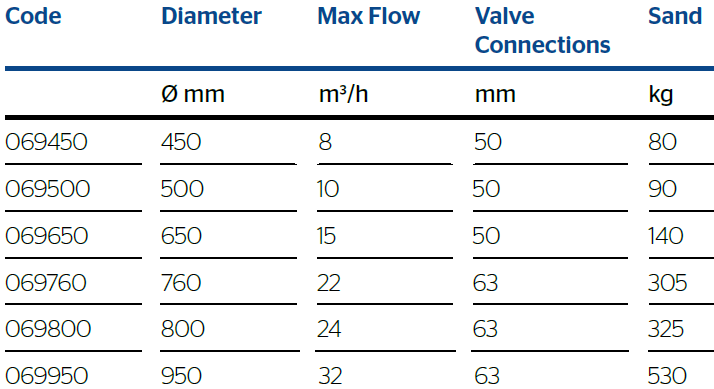

• Sizing Options: Atecpool Ocea side Valve Mounted Sand Filters are available in different sizes and capacities to accommodate various pool sizes and water flow requirements. It's important to select the appropriate size based on the pool's volume and circulation system.

Features of Atecpool Ocea filters:

• 40°C maximum operating temperature
• PE base reinforced with fibreglass
• Injected inside ABS and PVC components
• Collecting method utilising laterals Slot of 0.3mm
• Closed side lid in two options
• Glass lid with nuts and gaskets that is transparent
• ABS with nuts and gaskets injected
• 2" sand/water drain installed
• Silicon gasketsFlow rate: 32 m3/h
• Connection: 63 mm
• Sand capacity: 530kg
