Behncke Munchen high layer swimming pool filter tank with bottom nozzle, Ø600 mm, 9 m3/h

Behncke Munchen high layer swimming pool filter tank with bottom nozzle, Ø600 mm, 9 m3/h

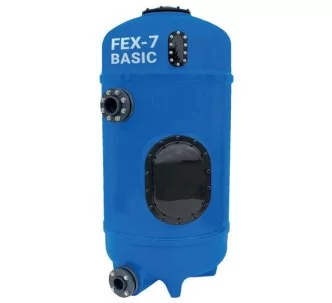

Polyester resin-reinforced glass-fibre plastic tank. A top inspection aperture and internal seal with lateral service entrance, 150 x 50 mm sight glass, built-in nozzle bottom, strengthened raw water inner piping, and counter bearing. Manhole opening in accordance with works standard; pressure vessel check performed by professionals.

Product specifications:

• Operating pressure: 2.5 bar
• Test pressure: 3.575 bar
• Filter capacity: 9 m3/h at 30 m/h flow velocity
• Maximum operating temperature: 40 °C
• Pipe/clean flange connection: DN80 / DN50
• Tank color: RAL 7038 – light grey
• Weight: 83 Kg
• Dimension: 600 mm * 1800 mm
