Aqua Industrial Bobbin-Wound side mounted sand filter 700 mm, 19 m3/h

Aqua Industrial Bobbin-Wound side mounted sand filter 700 mm, 19 m3/h

The filtration system of the pool eliminates the waste that microbiological organisms ingest. Sanitation, which maintains your pool looking pristine and inviting, is the second primary purpose of your pool system. Pool filtration is carried out to guarantee a healthy environment, uphold high standards of sanitation, and stop the spread of contagious aquatic diseases. The greatest pool filters can eliminate more than 99 percent of unwelcome particles, considerably enhancing the quality of the water.

Clean water is returned to the pool by reverse nozzles after the pump pumps water into the filter, which filters out dirt and debris. Pool filters maintain a clean, clear pool while also producing more chlorine and fostering a healthier swimming experience by eliminating dirt and debris from the water.

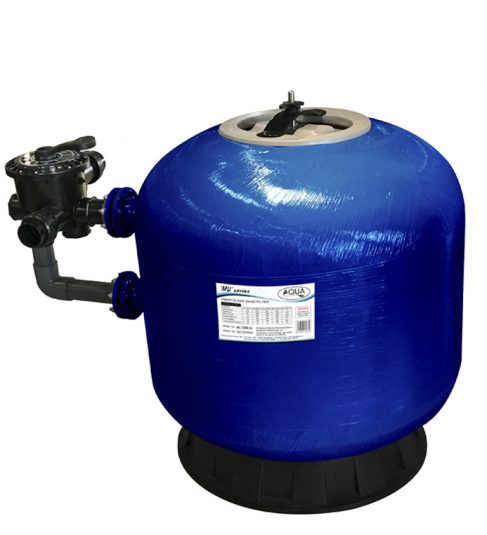

The "Munich" series of bobbin-wound sand filter is made of polyester resin and fiber. For diameters up to 900 mm, it has a cover with a screw closing. For dimensions 1100 and 1200, it has a 400 polyester/fiberglass cover. The multiport vales are available in six positions: filter, backwash, rinse, recirculate, waste and closed.

Equipped with UPVC-made diffuser and collecting arms, a pressure gauge, and manual air and water purges.

Product Specifications:

• Color: Blue
• Volume: 0.45 m³
• Connection: 1 ½ ”
• Flow Rate: 19 m³/h
• Sand load: 225 Kg
• Working pressure: 2.5 kg/cm² – 4 kg/cm².
• Test pressure: 4 kg/cm² – 5.5 kg/cm².
• Filtration speed: 50 m³/h/m²
• Filter area: 0.50 m²
• Side mounted valve
