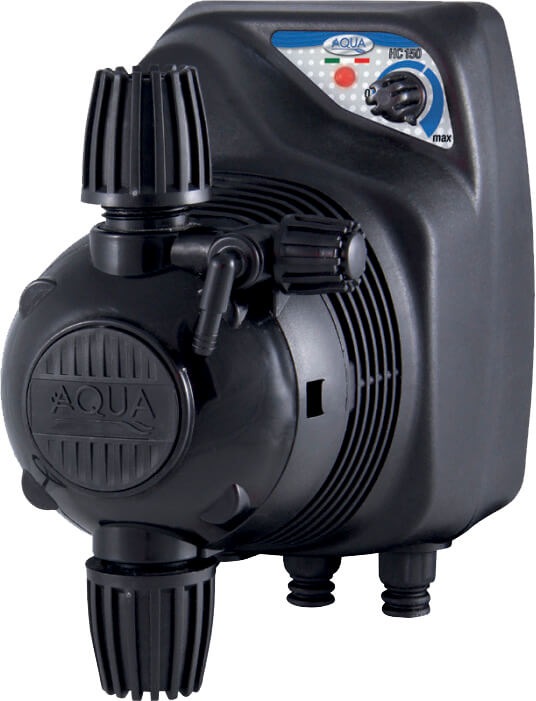

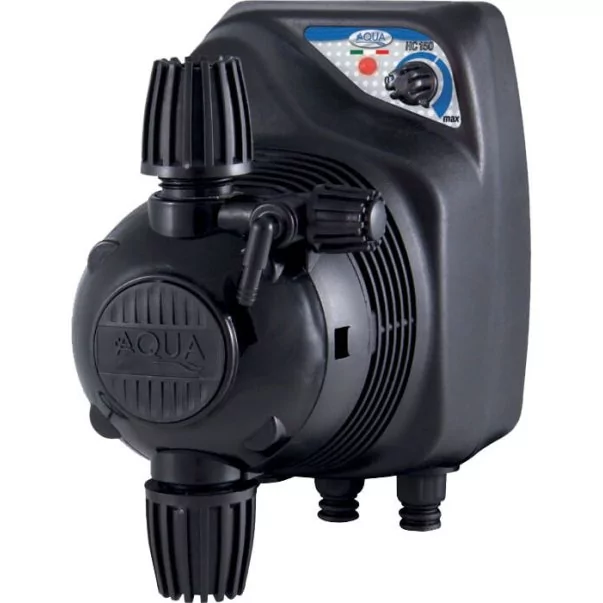

Aqua Technopool HC 150 IMPROVED RANGE membrane dosing pump for swimming pool, 5 l/h

Aqua Technopool HC 150 IMPROVED RANGE membrane dosing pump for swimming pool, 5 l/h

Universal solenoid-type diaphragm pump with digital microprocessor control unit.

Used for dosing liquid chemicals for water disinfection in small and medium-sized swimming pools of all types.

The model is universal, suitable for dosing liquid chlorine, pH regulator, active oxygen, flocculant, algaecide.

Aqua Technopool HC 150 IMPROVED RANGE pool dosing pump operating principle:

The metering pump has a solenoid coil that rotates to act on a special pump diaphragm, which pushes the reagent through the metering pump head.

By means of manual adjustment, it dispenses liquid reagent into the swimming pool water on a continuous basis. Dosing is done through the analog setting on the pump control panel.

Technical specifications of the Aqua Technopool HC 150 IMPROVED RANGE, 5 l/h:

• Power rating: 16 W
• Flow rate: 5 l/h for 8 BAR pressure
• Number of pulses: 120 pulses/min.
• Pulse volume: 0.69 ml
• Voltage: 220 V
