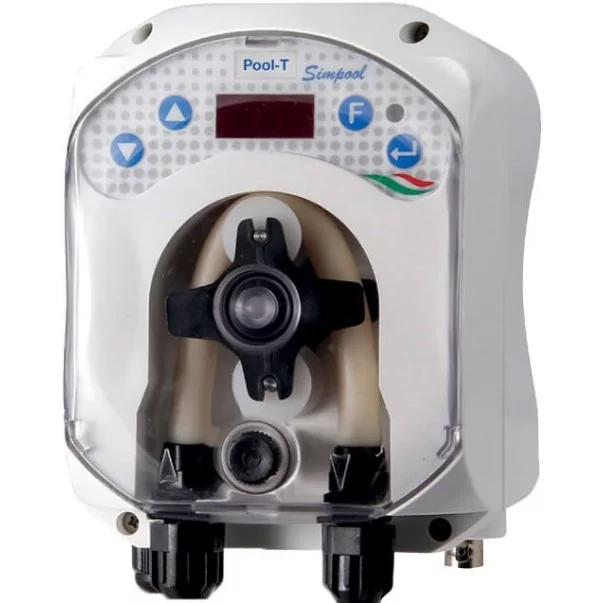

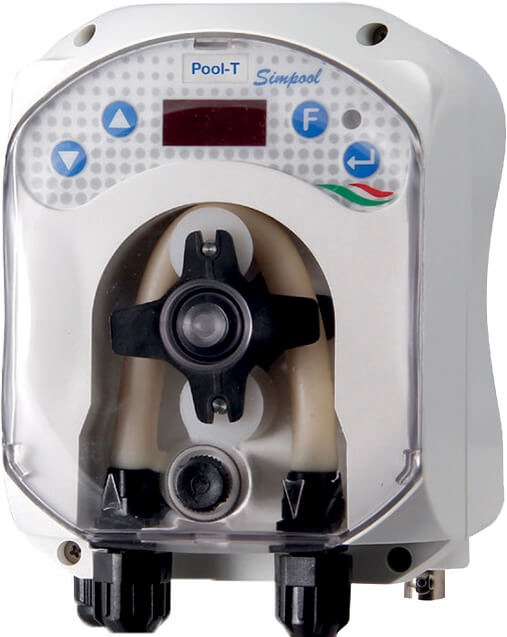

Aqua Technopool Simpool Pool Timer peristaltic dosing pump for swimming pool, 3 l/h

Aqua Technopool Simpool Pool Timer peristaltic dosing pump for swimming pool, 3 l/h

The Aqua Simpool Pool Timer peristaltic dosing pump is designed for pumping chemicals in swimming pool and waterpark treatment systems.

It is mainly used for dosing chlorine, hydrogen peroxide, flocculant and algicide.

Dosing is timed daily and weekly, starting on the basis of a 220 volt signal from a circulation pump or dosing station.

Wall mounting. It is controlled by touch buttons, the monitoring is based on the LED display. The display consists of 3 digits. All signals are controlled by a microprocessor.

Built-in sound alarm of emergency operation: OFA - overdose, OFD - no flow, no chemical in the canister (this requires a level sensor). There is a record of statistical data on the reagent flow rate.

It can act as an element of automatic dosing stations or as an independent device.

Technical specifications of the Aqua SIMPOOL Pool Timer 3 l/h dosing pump:

• Input voltage: 220÷240V 50Hz, IP65 protection
• Power consumption: up to 10W
• Suction height: up to 1,5 m
• Operating temperature range: 0 ÷ 45°C
• Material of peristaltic tube: Santoprene (thermoplastic elastomer)
• Pump peristaltic tube size: Ø4x6, 4m
• INHIBIT inputs: reagent level sensor, pump start signal (220VAC)
• Connector type for level sensor: BNC
• Switch-on button, modes: On / Off / Filling
• Pump capacity: 3 l/h
• Weight: 2,33 kg
• Package size: 250x145x265 mm
