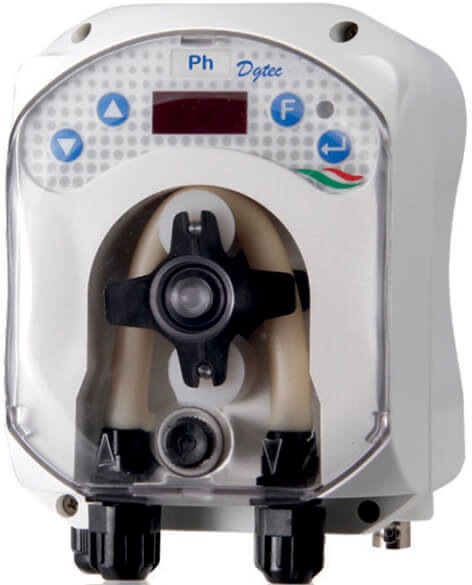

Aqua Technopool SIMPOOL PRO pH-Temp peristaltic automatic dosing pump for swimming pool, 3 l/h

Aqua Technopool SIMPOOL PRO pH-Temp peristaltic automatic dosing pump for swimming pool, 3 l/h

The Technopool Simpool PRO pH is a swimming pool equipment for the automatic dosing and pumping of the Ph regulator in the water treatment systems of private swimming pools.

The adjustment of the parameters and control of the installation is done by means of membrane buttons and LED display, remote control is possible.

The pump casing is made of polypropylene. The peristaltic tube is made of Santoprene, a fully cross-linked thermoplastic elastomer TPE.

Peristaltic rotor - 2 wheels by TRANSAXLE technology, uniform pressure (on two axes) of the pressure roller on the peristaltic tubes is achieved. The material Santoprene is protected against the influence of most chemical compositions.

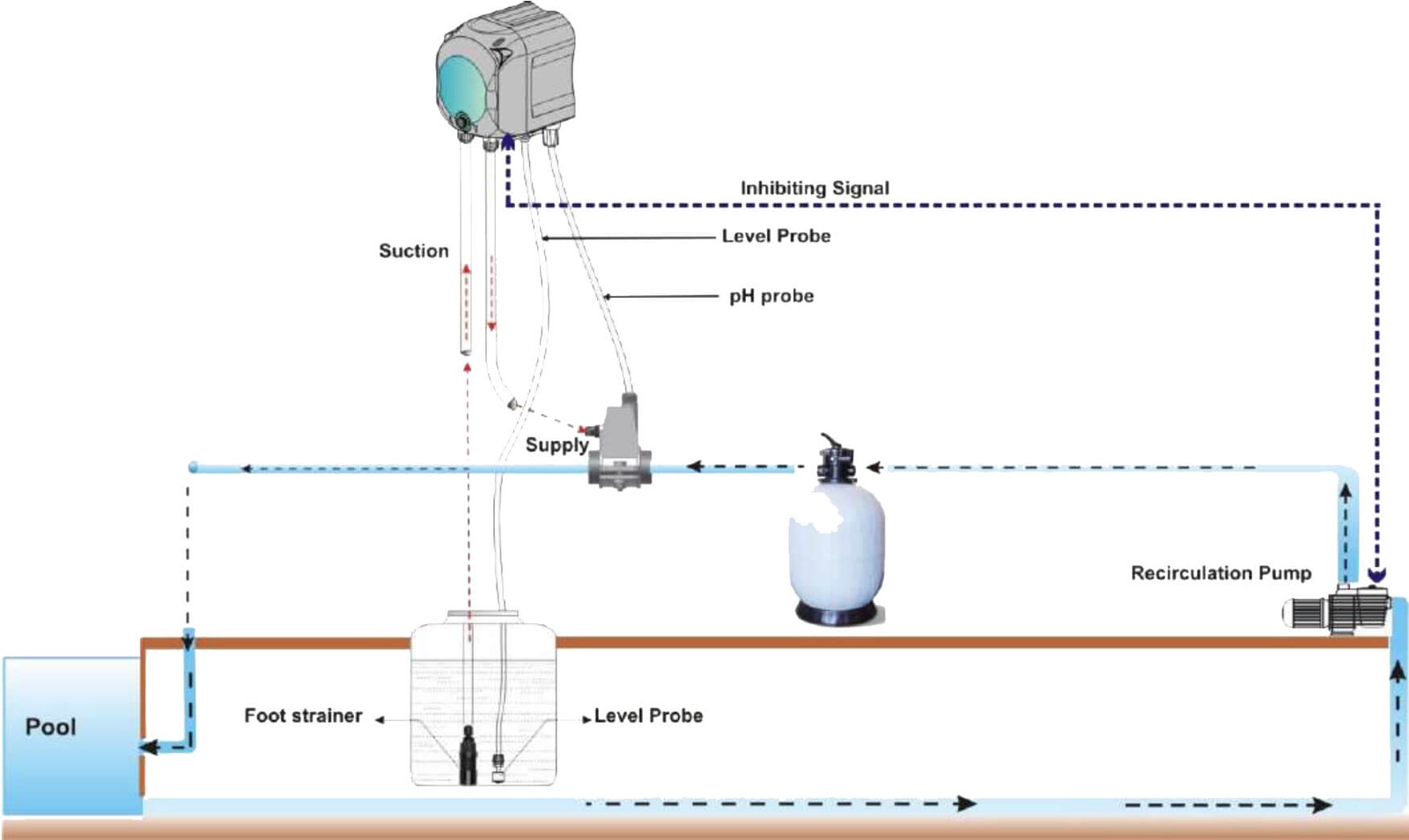

The pump is equipped with an input for activating the dosing when the filtration pump is turned on, as well as for a reagent level sensor in the canister.

Additionally, an input for a PT100 temperature sensor is provided. (optional)

Technical specifications of the Aqua Simpool Pro Ph-3 l/h dosing pump:

• Input voltage: 220÷240 V 50 Hz,
• Power consumption: up to 15W
• Measuring ranges: 5-9 pH
• Working temperature range: 0 ÷ 45°C
• Material of peristaltic tube: Santoprene (thermoplastic elastomer)
• Pump peristaltic tube size: Ø4x6, 4m
• INHIBIT inputs: reagent level sensor, pump ON signal (220VAC), temperature sensor input PT100 2-3 wires
• Connector type for level sensor: BNC
• Switch-on button, modes: On / Off / Filling
• Pump capacity: 3 l/h at 1 bar
• Weight: 2,33 kg

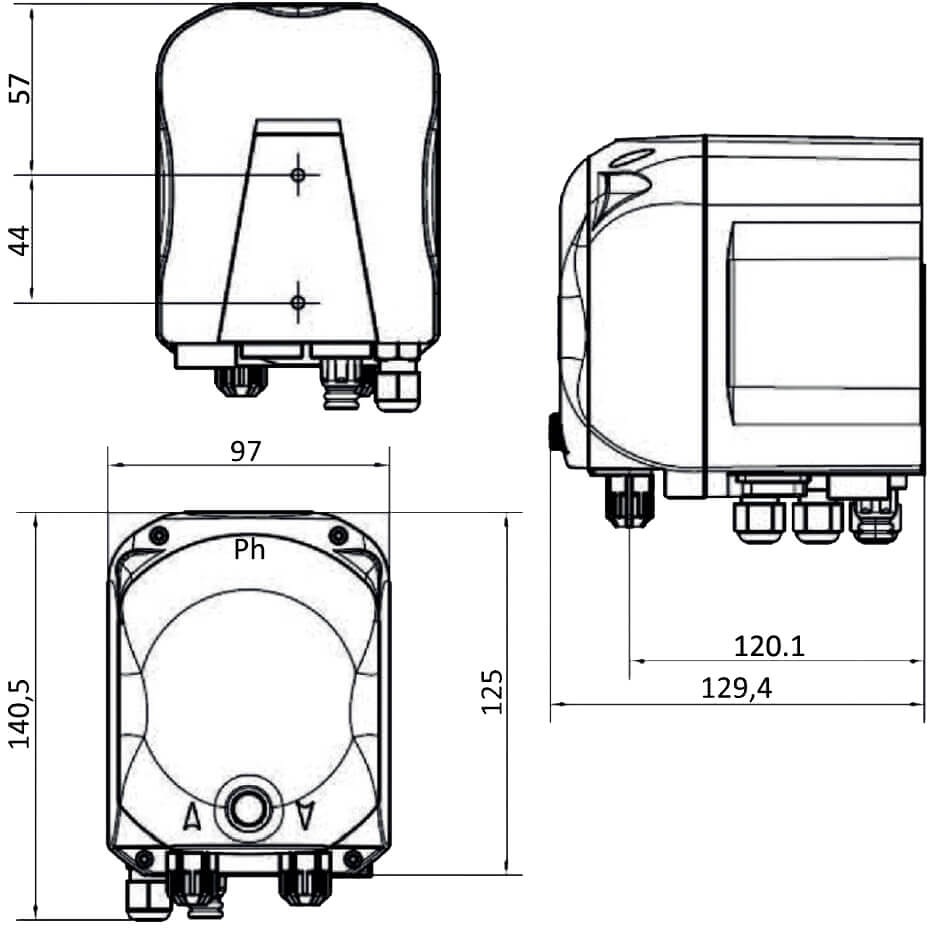

• Package size: 250x145x265 mm
