AstralPool Acqua Dos type C membrane dosing pump for swimming pool

Astra Pool Acqua Dos type C membrane dosing pump for swimming pool

Water disinfection is a crucial aspect of pool maintenance, and failure to properly disinfect pool water can have serious health consequences for swimmers. Without proper disinfection, the pool water can quickly become contaminated and pose a risk to swimmers, especially if the pool is used by multiple people. It is always safer and better to use a dosing pump than a manual disinfection. Dosing pumps are automated devices that can be used to accurately and consistently add chemicals to a pool or spa

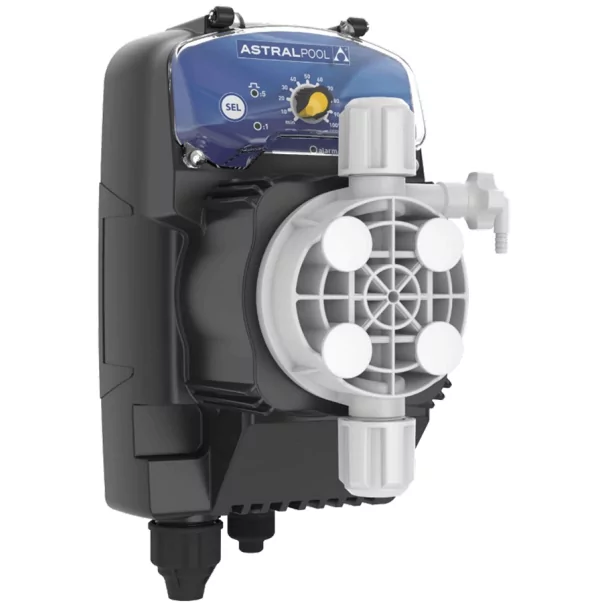

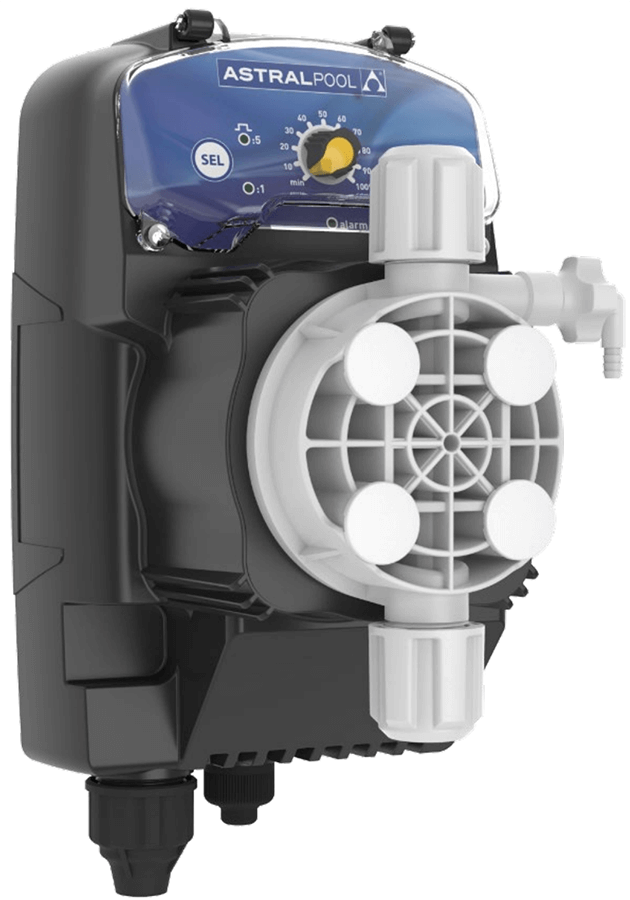

Astra Pool Acqua dos analog type C is a specialized device designed for swimming pool owners and operators who want to ensure the proper chemical balance of their pool water. This device uses advanced analog technology to measure and control the levels of pH and other liquid form of disinfectants such as chlorine, oxygen, bromine, flocculants which helps to maintain a safe and comfortable swimming environment.

The Acqua dos analog type C features a durable and weather-resistant design, making it suitable for use in outdoor environments. They are usually used in commercial pools due to its high flow rate, however it can be used for private pools as well.

The 2-frequency range for flow rate is:

• 0÷20 % of max flow rate
• 0÷100% of max flow rate

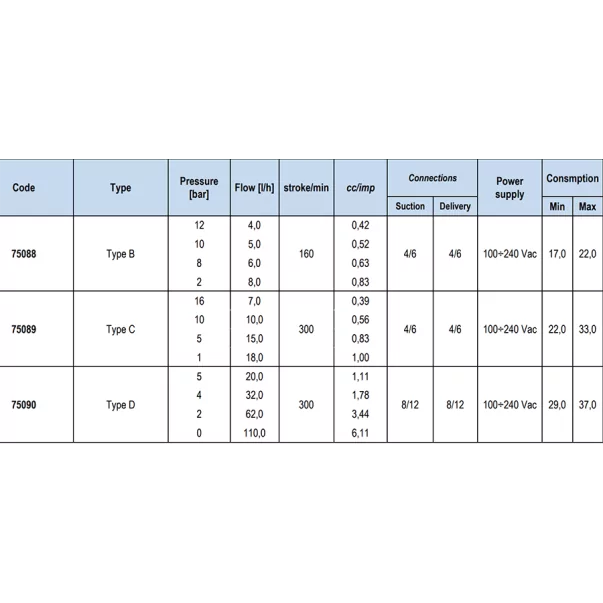

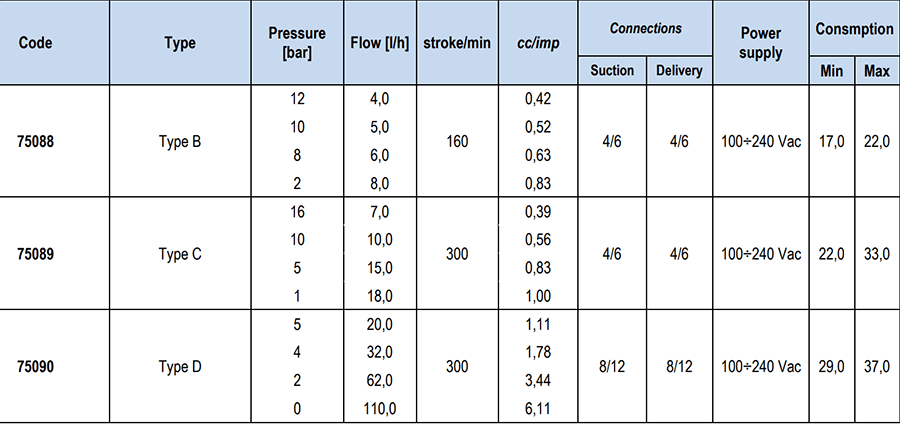

 Technical information of Astra Pool Acqua dos type C:

• Dosing Type: universal
• Minimum Flow rate: 7 l/h
• Maximum Flow rate: 18 l/h
• Maximum Pressure: 16 bar
• Water Stroke /min: 300

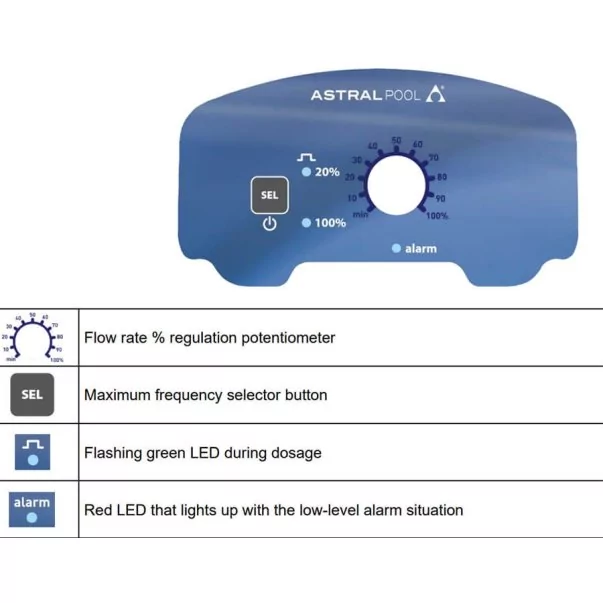

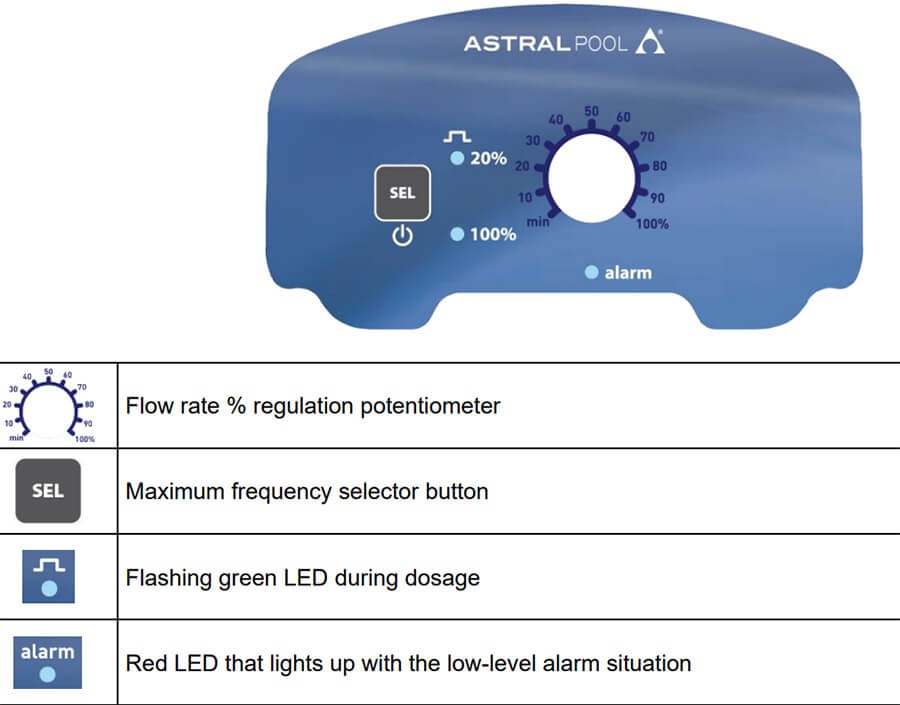

• Control: manually adjusted by a knob
• Installation kit: Includes a PVDF foot filter ,injection valve, PVC suction tube, PE delivery tube.
• Alarm: When the liquid is exhausted in the tank the LED alarm triggers.

Caution : Dosing pumps and the chemicals used should always be in accordance with the instructions given by the manufacturers
