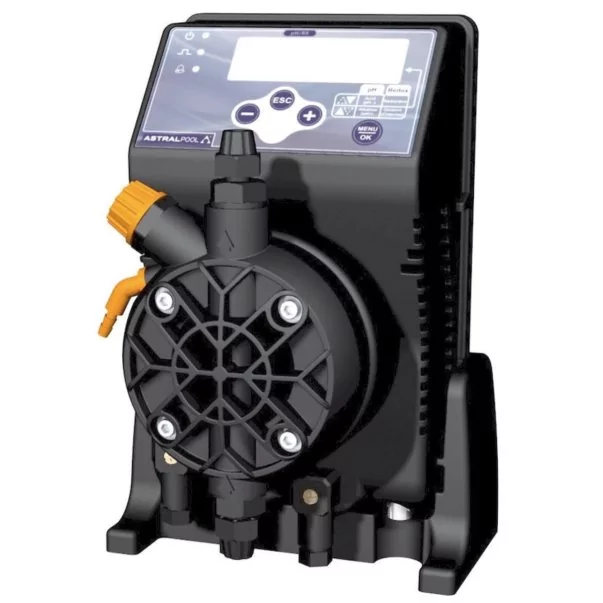

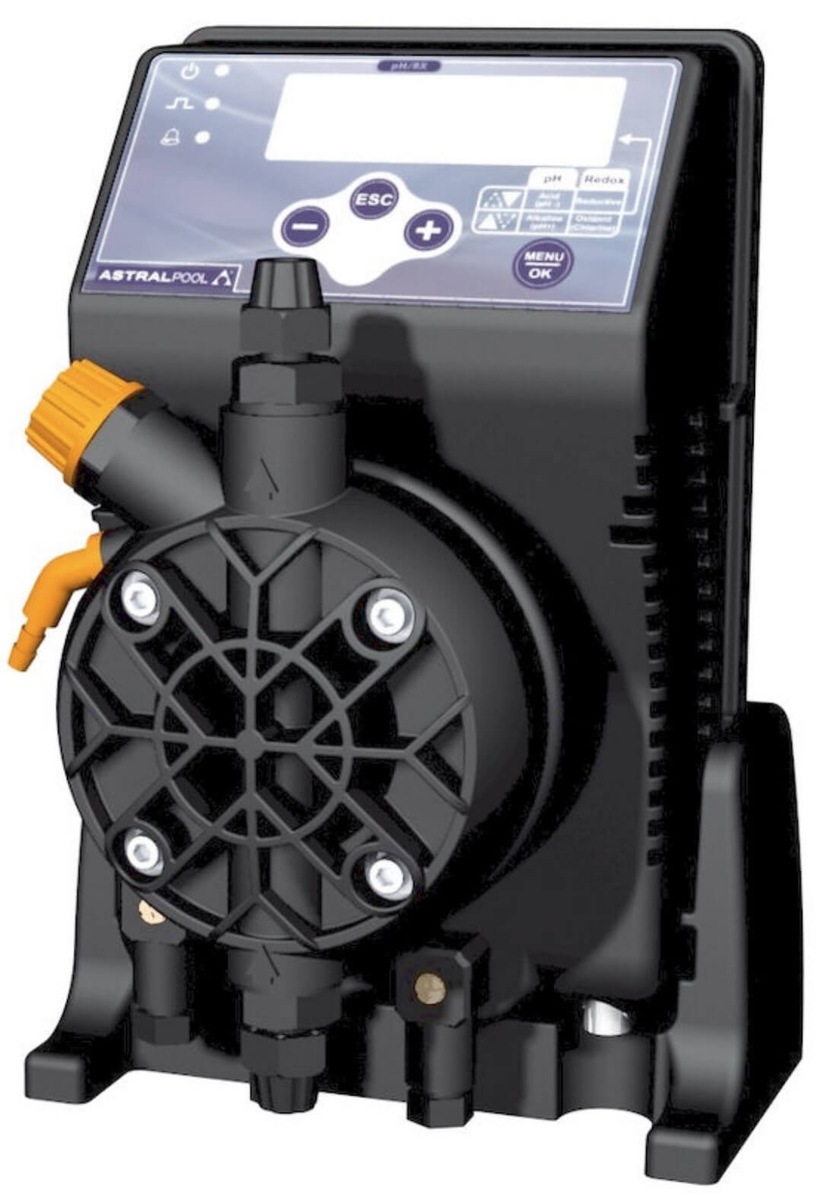

AstralPool Exactus pH/Rx membrane dosing pump for swimming pool, 10 l/h, 5 bar

AstralPool Exactus pH/Rx membrane dosing pump for swimming pool, 10 l/h, 5 bar

In order to stop microorganisms and potentially hazardous bacteria from growing in the pool, disinfection is crucial for both public and private swimming pools. It is vital that we keep the water we swim in free from pathogenic organisms and bacteria. Hence, germs and other organisms are killed using disinfectants like chlorine through a chlorine dispenser or skimmer. Similarly, disinfection plays a role in controlling organic debris from products that are applied to the skin, like deodorant, creams and oils.

In the same way that a dosing pump is needed, as it draws measured amounts into a chamber and then injects it into the pipe or tank to be dosed. The purpose of a dosing pump is to pump a very precise amount of a chemical or substance into a water, steam or gas stream.

The microcontroller-based Astral Pool Exactus pH/Rx automatic dosing pumps are operated by a contemporary microprocessor, allowing for precise adjustment of the flow rate. When connected to a transceiver device or another gadget which delivers a modified signal ranging from 0 to 20 mA, the pump pulse frequency will be proportionate to the mA signal received: pump flow increases with signal strength. The dosing pump's intervention mode can be programmed by the user to suit the needs of the plant.

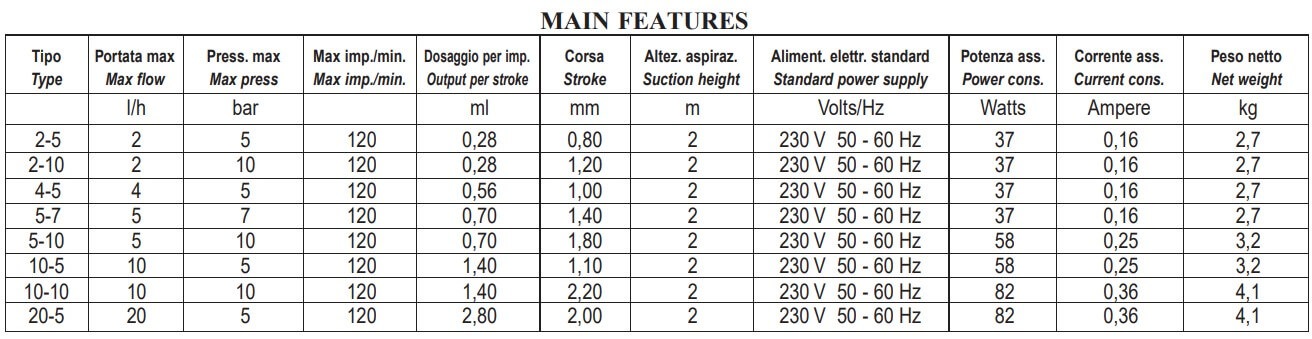

Product Specifications:

• Manufactured for supplying liquids at pressures of 0 to 10 bar and volumes of 0 to 20 l/h.
• Maximum Flow Rate: 0.01 m³/h
• Suction Height: 2 m
• Power Consumption: 0.037 kW
• LCD screen with backlight.
• On/Off operating nodes or proportionate mode.
• Ranges: 0 ÷ 14 pH; -1000 ÷ 1400 RX (ORP) sensor input (10 Tera Ohm) (sensor not included).
• Resolution Display: 0.01 pH; ± 1 mV
• Input from a sensing element (level sensor not included).
• Offered in three variants with different rates of flow and intensities.
• Hardware produced in compliance with CE regulations.
• IP 65 protected
• Polypropylene casing support
• Control Panel is protected with Gaskets and a translucent polycarbonate cover
• Power Supply: 230 V / 50 Hz single phase.
