AstralPool Aster filter with top mounted valve D750 mm 21 m3/h

Astral pool Top mounted aster filter D 750 mm 21 m3/h

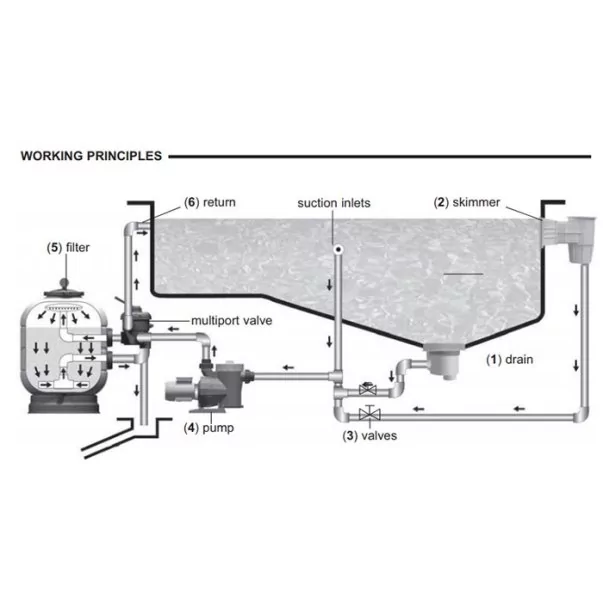

Incorporation of a pool tank is a vital part of the pool maintenance regime. A pool filter system gets the dirt out and helps leave your pool water sparkling and clear. Works best for commercial and private, as it pulls and clears the dirt and debris that is found on the water line of the water especially when it’s in the outdoors. The leaves and the other larger items will be filtered and removed through the circulation of the pool.

Filter is made of Fiberglass and man-made fabric(polyester), which is fitted with pressure gauge, manual air and water purge valves. Grey, PP base, screw-free lid, cap for sand and water discharge and side selector valve.

Product weighs up to 35 kg, with a height of 1184 mm. The product is an excellent version of the current filters with a sand capacity of 290 kg.

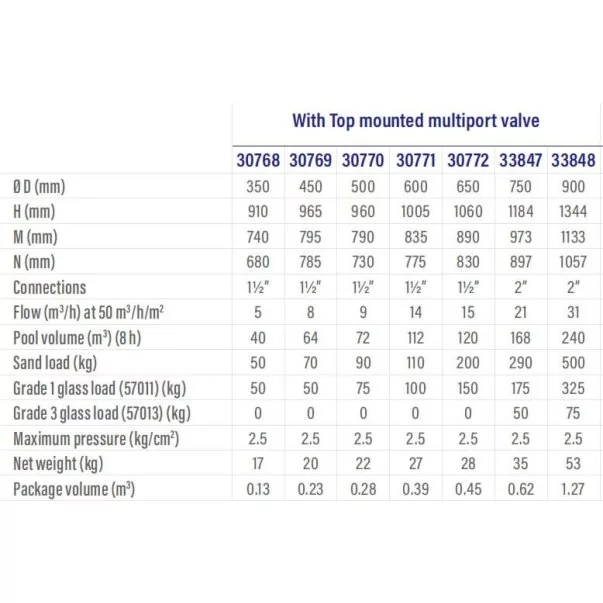

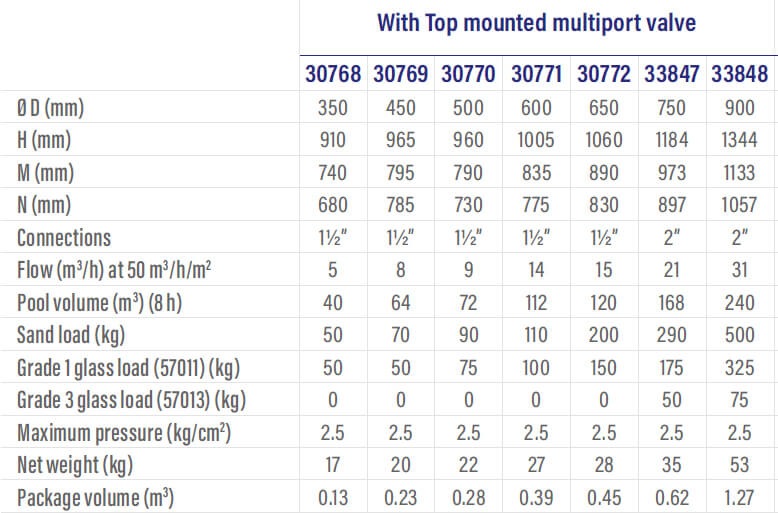

Technical Features:

• Connections: 2 Inches
• Comfort: Astral pool Top mounted aster filter range of laminated sand filters provides high performance in the filtration of your pool by incorporating a larger filter bed, thus achieving a better filtration quality.
• Accessibility: Incorporates a plug for emptying sand and water
• Maximum filtration speed: 50 m2/h.
• Maximum working pressure: 2.5 bar
• Multipurpose Valve: The Valves are made of ABS material with heavy-duty plastic handle. The valve allows you to select the 6 features, available for operating functions to cover all the necessary operations needed in any swimming the 6 positions are for filter, backwash, rinse, recirculate, waste and closed The
• pool volume:  up to 168 m3
• Pump Compatibility: 21 m3
• Sand Compatibility: Both sand and Activated filter media compatible.
• Sand load: 290 kg
• Durability – designed for its superior durability.
• Cost effective: Commercial multiport valves are and space-saving
• Back wash indicator: The fitted pressure gauge on the pump when raised 0.5 bar above its normal clean operating pressure, it is an indicator for the back wash to be performed.
• Maximum Pressure: 2.5 bar
• Grade 1 glass load (57011) (kg) :175 kg
• Grade 3 glass load (57013) (kg): 50 kg

Recommendation : Though with the use of filter system in place, it is important to use brush and robotic cleaners/vacuum to clean the bottom of the pool .
