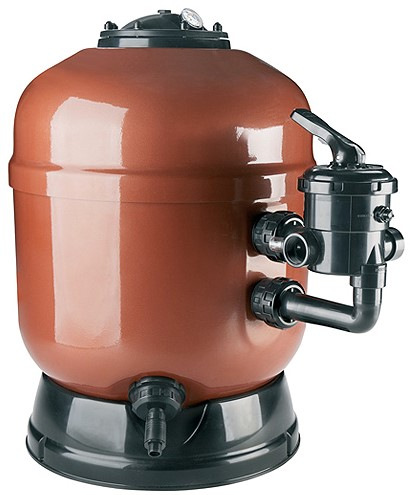

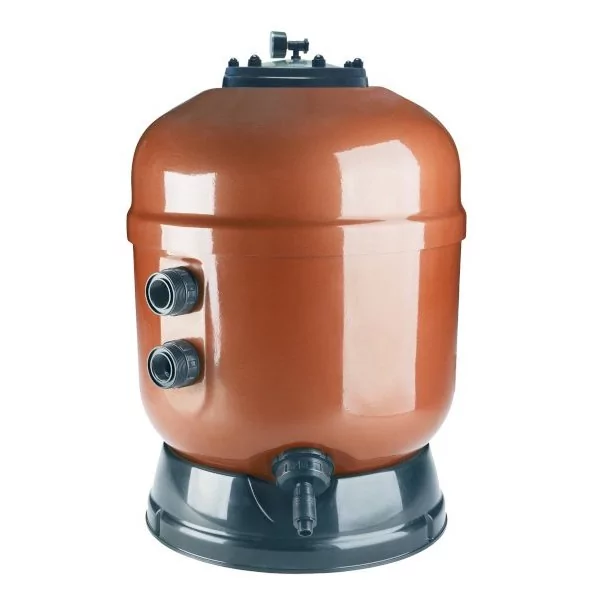

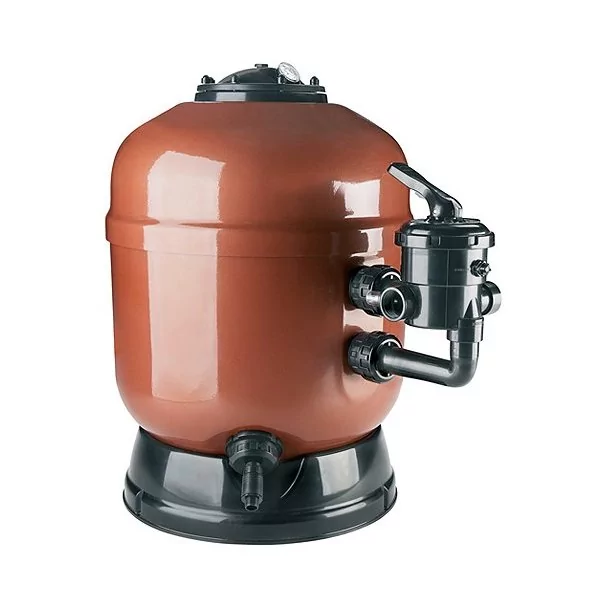

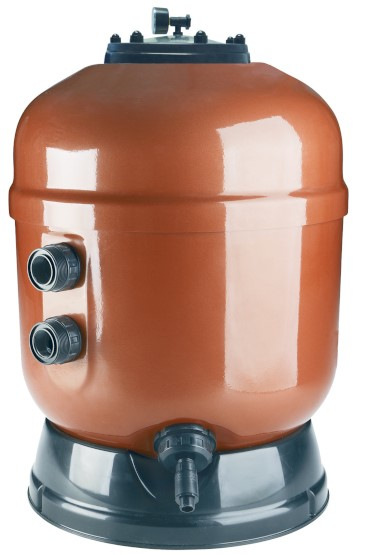

AstralPool Atlas side mounted laminated filter, Ø 900 mm, 30 m3/h

AstralPool Atlas side mounted laminated filter, Ø 900 mm, 30 m3/h

The filtration system of the pool eliminates the waste that microbiological organisms ingest. Sanitation, which maintains your pool looking pristine and inviting, is the second primary purpose of your pool system. Pool filtration is carried out to guarantee a healthy environment, uphold high standards of sanitation, and stop the spread of contagious aquatic diseases. The greatest pool filters can eliminate more than 99 percent of unwelcome particles, considerably enhancing the quality of the water.

The range of AstralPool Atlas laminated sand filters has been widened to include both public and private pools.  Its filters are manufactured with simultaneous resin and fiberglass casting, a fitting cover, and sturdy screws. To maintain consistent operation, the filter's security coefficient has been increased.

The selection valve includes a handle with 6 positions that can be used to choose any of the actions required to get the filter to operate at its most effective level:

• Filtration. It is advisable to continuously evaluate the pressure gauge while in this position because it shows how saturated the filter is. It is recommended to perform a "backwash" when the pressure reaches 18.5 PSI.

• Backwash. Each load of sand creates hundreds of channels that catch all the debris trapped in the filtering process. With the main drain and return valves open and the selection valve turned to the "BACKWASH" position, turn on the pump and let it run for two minutes. The dirt that was obstructing the filter will have been eliminated after this procedure is finished.

• Recirculate. When the selection valve is in this position, water from the pump can be directed straight to the pool, bypassing the filter's interior.

• Waste. This position is being used when the swimming pool is needed to be drained. To ensure that the pump has enough suction, the main drain valve is left fully open while the motor is operating.

• Rinse. This position is used to make sure that the filtered water gets straight to the drain after the filter and backwash process.

• Closed. This position is used to open the pump's collector prefilter and to shut off the flow of water from the filter to the motor.

Product Specification

• Material: Polyester resin and fiberglass.
• Superb finish with RAL 8029 gel coat.
• Connections: 2 ½ “
• Filtering surface: 0,64 m²
• Filtering speed: 50 m³/h/m²
• Working pressure: 2.5 kg/cm²
• Maximum flow rate: 30 m3/h
• Sand load: 580 Kg
• Pool volume: 120
• Extremely chemical-resistant transparent plastic cover.
• Equipped with thermoplastic PVC diffuser and 1" collector arms.
• Interior pipes with PN-16 tubes.
• 2 ½" sand discharge outlet.

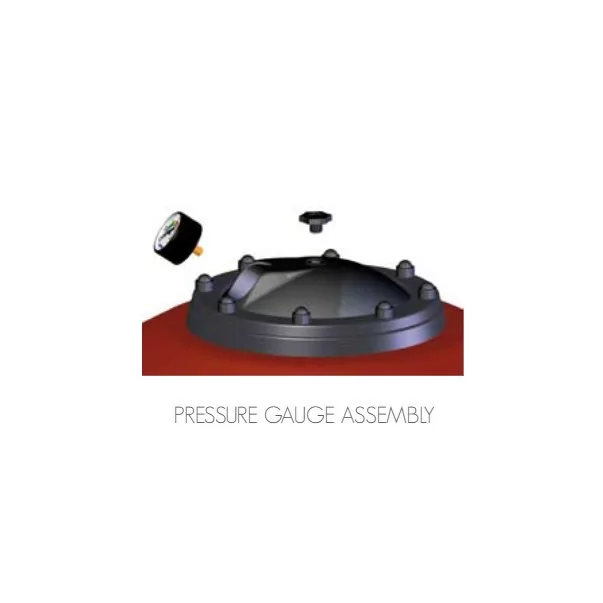

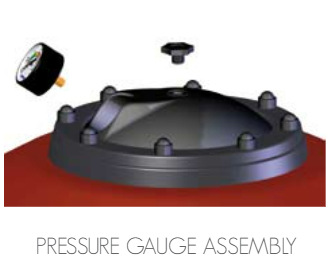

• Equipped with a pressure gauge, automated and mechanical air vent cocks, and a mechanical water drain cocks.
• Complies with EN 16713-1 filtration standard
