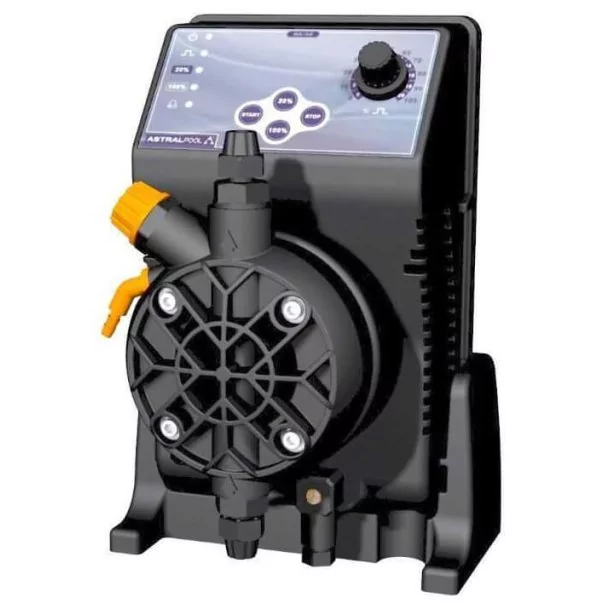

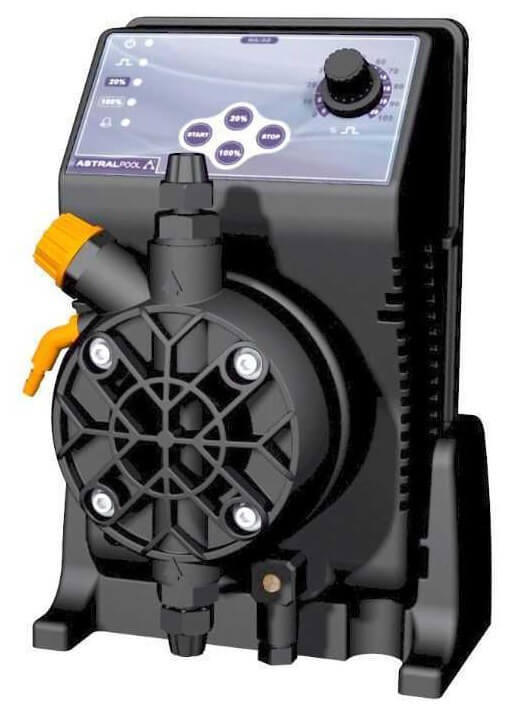

AstralPool Exactus pH/Rx membrane dosing pump for swimming pool, 20 l/h 5 bar - manual control

AstralPool Exactus ph/Rx membrane dosing pump for swimming pool, 20 l/h 5 bar - manual control

In order to stop microorganisms and potentially hazardous bacteria from growing in the pool, disinfection is crucial for both public and private swimming pools. It is vital that we keep the water we swim in free from pathogenic organisms and bacteria. Hence, germs and other organisms are killed using disinfectants like chlorine through chlorine dispenser or skimmer. Similarly, disinfection plays a role in controlling organic debris from products that are applied to the skin, like deodorant, creams and oils.

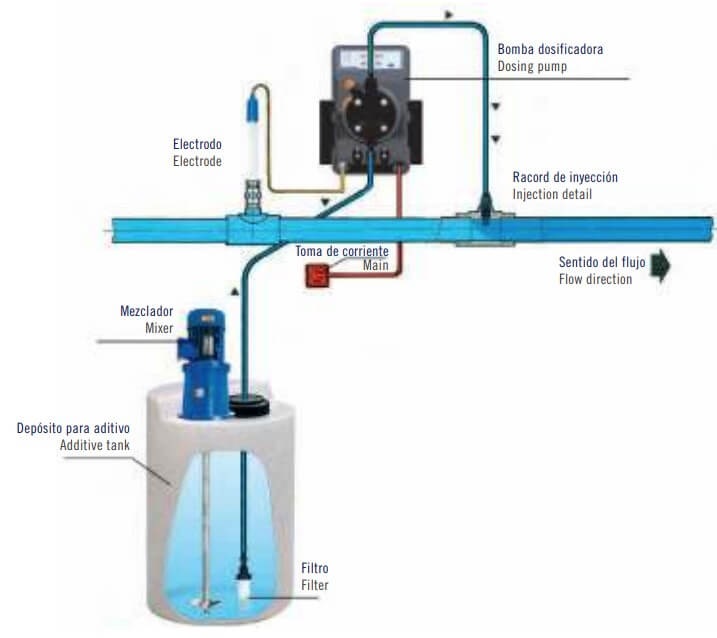

In the same way that a dosing pump is needed, as it draws measured amounts into a chamber and then injects it into the pipe or tank to be dosed. The purpose of a dosing pump is to pump a very precise amount of a chemical or substance into a water, steam or gas stream.

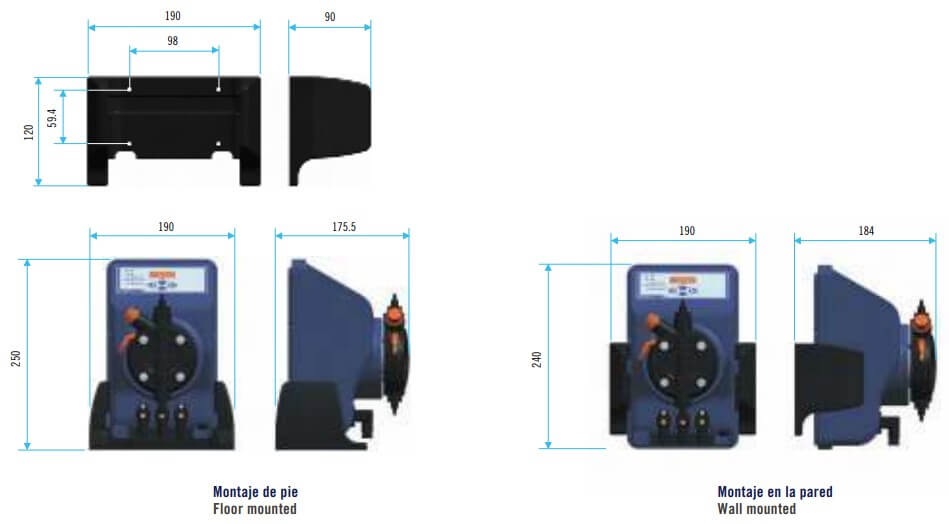

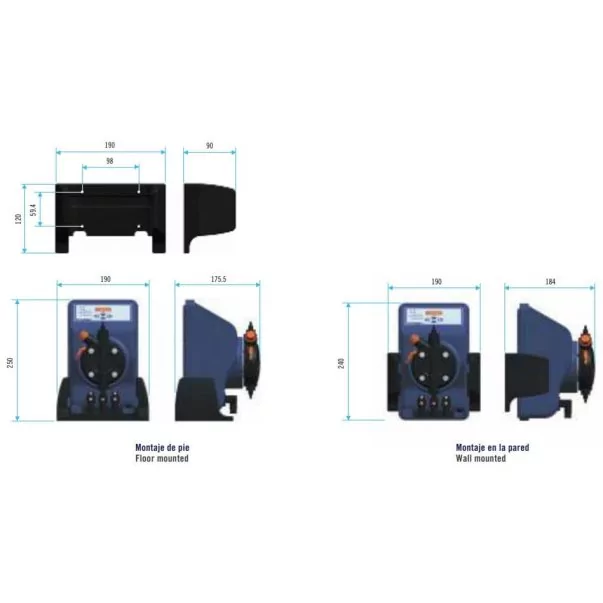

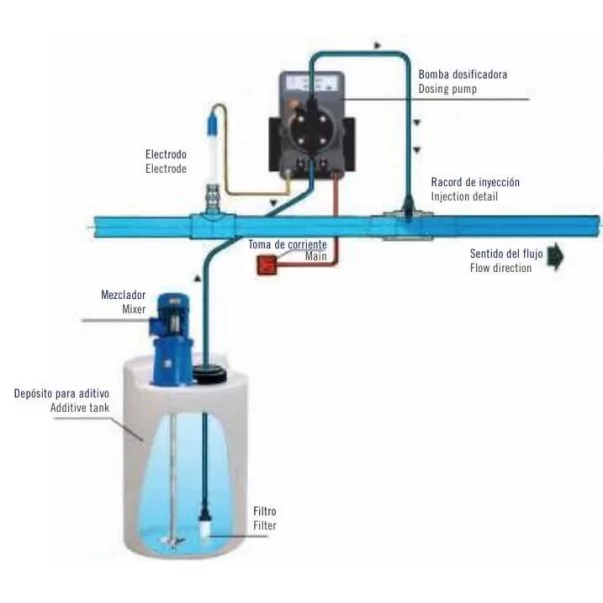

The electronic dosing pump Astral Pool Exactus manual analog features a manually adjustable flow rate range of 0-20% and 0-100%. It can be wall mounted or placed on a horizontal base.

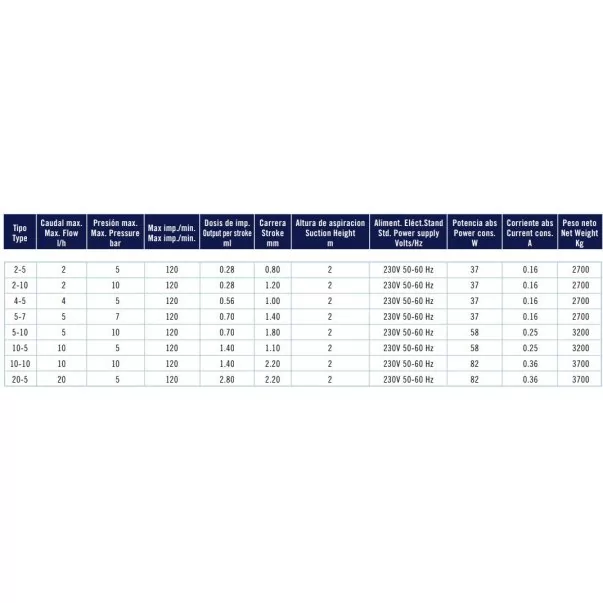

Product Specifications:

• Hardware produced in compliance with CE regulations
• On/Off operating nodes or proportionate mode.
• IP 65 protected
• Polypropylene casing support
• Control Panel is protected with Gaskets and a translucent polycarbonate cover
• Standard power supply 230 V a.c. 50 Hz single phase.
• Power supply: 240 V / 50 60 Hz single-phase
• Polypropylene box with anti-acid strengthening
• It needs little upkeep and doesn't require lubrication.

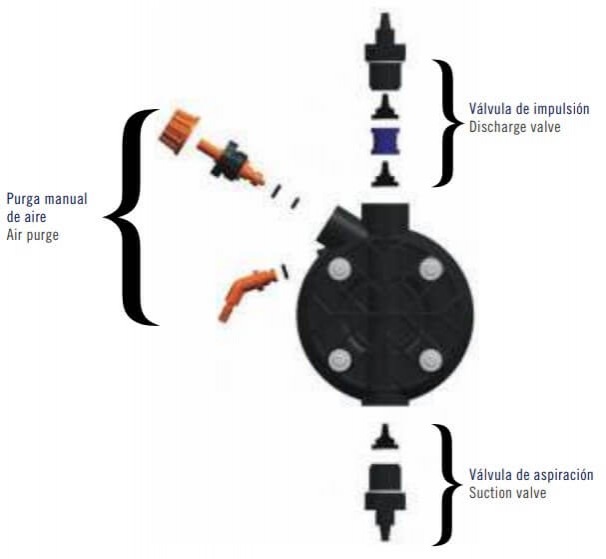

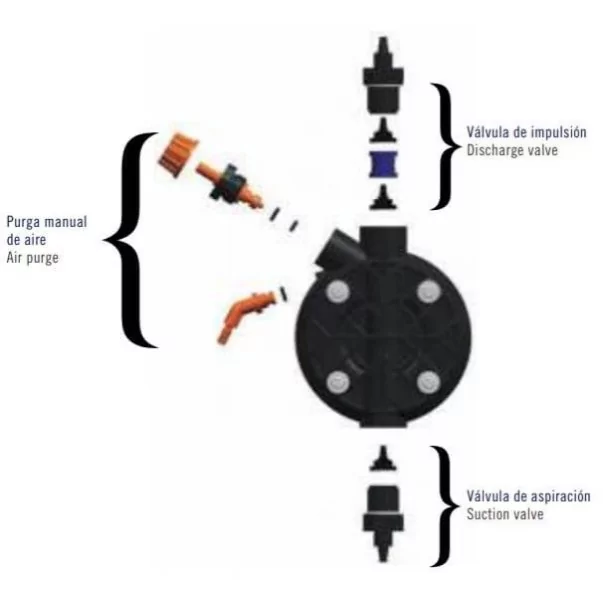

• Integrated drain valve.
• Power Consumption: 0.082 kW
• Suction Height: 2m
• Maximum Flow Rate: 0.02 m3/h
