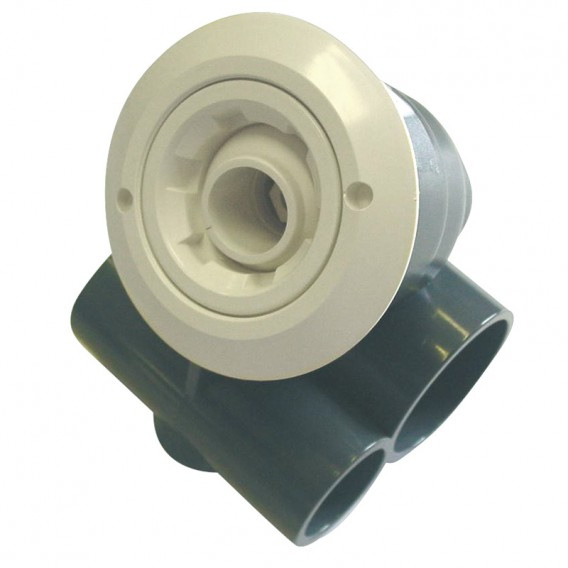

AstralPool threaded hydromassage jet for liner pool, 2"

AstralPool threaded hydromassage jet for liner pool, 2"

Return jets, often known as nozzles or eyes, are a standard feature of all swimming pools. The water is circulated by the jets, which also contribute in releasing clean water after it has been through your filter.

Air bubbles are produced by the jets in a hydromassage system, which produces a gentle and relaxing massage with maximum effectiveness. With the aid of this accessory, hydromassage spas can be equipped with water and air jets. Air bubbles and pressured water jets work together to produce powerful and soothing hydromassage effects.

Product specifications:

• Maximum flow rate: 4 m3/h
• Maximum pressure: 0.8 bar
• Controls the air/water outflow ratio.
• Inlet water diameter: 50 mm; inlet air diameter: 32 mm

Installation instruction:

• Mark a spot on the Spa wall 200 mm or so below the typical water level
• Once the center point has been created, it will need to be milled using a 60–75 cup cutter so that it goes through the nozzle body.
• We affix the supplied cap on the Jet's body with glue.
• Use one of the three provided bushings within the choke to accelerate the water more quickly at its outflow.
• Using flat gaskets on both sides of the spa wall, attach the Jet body to the back and thread the nozzle onto the front.
