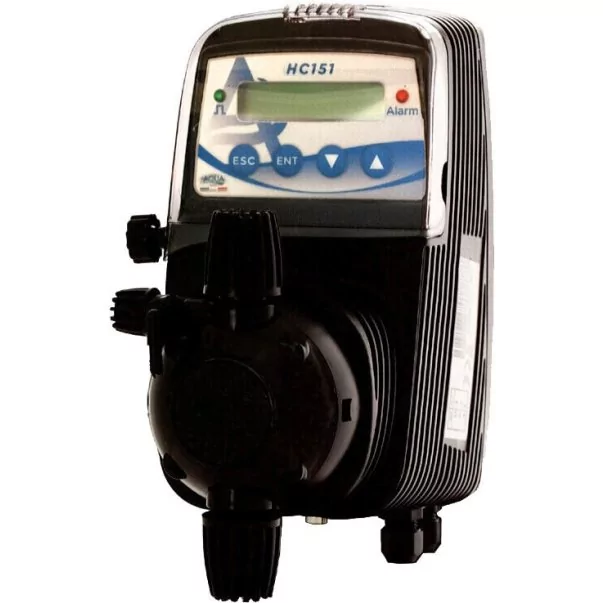

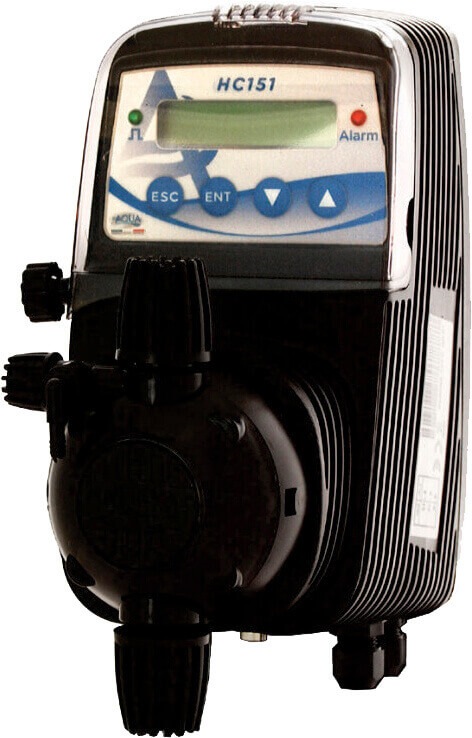

Aqua Technopool HC 151 RX automatic membrane dosing pump for swimming pool, 35 l/h

Aqua Technopool HC 151 RX automatic membrane dosing pump for swimming pool, 35 l/h

The Aqua HC 151 RX diaphragm dosing pump is designed to dose liquid chlorine or active oxygen for swimming pools. Both proportional and constant dosing modes can be set. The reinforced polypropylene housing is resistant to aggressive operating conditions.

Special features of the Aqua Technopool HC 151 RX:

• Built-in Rxcontroller
• Rugged and chemical resistant polypropylene housing
• Wall mounting
• Two types of dosing: continuous and proportional

Technical specifications of the Aqua Technopool HC 151 RX dosing pump, 35 l/h:

• Power rating: 22 W
• Flow rate:  20-35  l/h
• Number of pulses: 300 pulses/min.
• Pulse volume: 1.11 - 1.66 ml
• Voltage: 220 V
• Working pressure: 0-3 bar
• Dosing mode: Constant / Proportional

The delivery set consists of:

• Dosing pump
• Electrode for Rx level measurement
• Suction/discharge tube
• mV 475 buffer solution ADSRX for electrode calibration
• Bracket for wall mounting and wall plugs
• G½" probe holder
