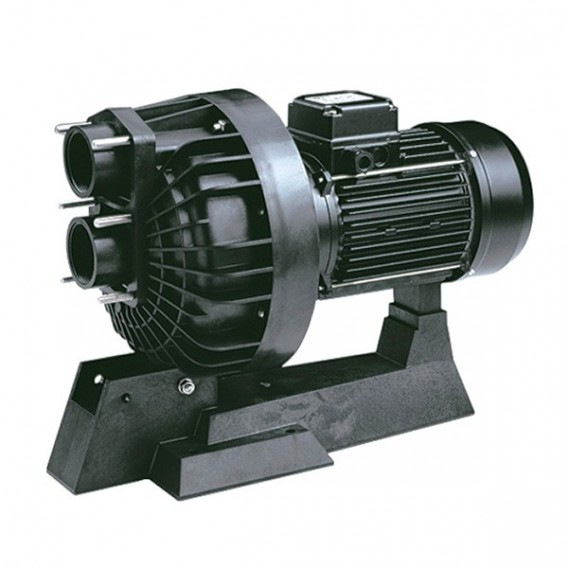

AstralPool CCIH 200M 1.5 kW, 24 m3/h pump for water attractions and fountains, 2 HP

AstralPool CCIH 200M 1.5 kW, 24 m3/h pump for water attractions and fountains

With its completely integrated countercurrent solutions, AstralPool enables users to utilize a simple-to-install system. Due to its compact form and simply adjustable equipment, users can facilitate installation even in a short space.

The AstralPool Horizontal Drive pump is specifically made for use with backdraft equipment for swimming pools. It has a dual-insulated motor shaft and is made out of plastic. The suction and discharge connections of the pump should be larger to provide the higher flow performance needed for this kind of machinery.

All of the pump's water-contact metal parts are constructed of AISI-316 stainless steel.

Products Specifications:

• Manufactured from plastic material.
• Motor shaft with dual insulation.
• 1,5 kW power
• Single phase 230 V 50 H
• Max water temp 35° Celsius
• IP-55 Motor Protection.

Required to purchase a separate accessory for the assembly, as it is not included with the kit:

• PVC valve Ø 63 mm (code 02458)
• Adapter nipple 63 mm x 2” male thread (code 02107)
• PVC pipe Ø63 mm PN – 6 (code 02692)
