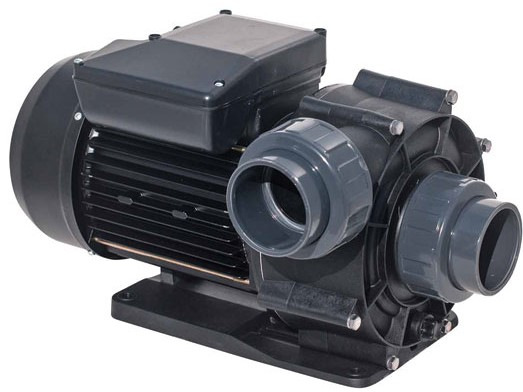

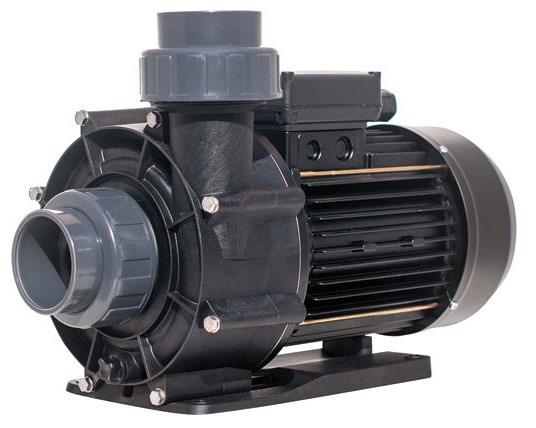

AstralPool Cala CA300M 2,2 kW, 39 m3/h pump for water attractions and fountains, 3 HP

AstralPool Cala CA300M pump without prefilter, 2,2 kW, 39 m3/h

A pool blower is a kind of pump being used in pool water flow; it carries air in reduced pressure situations and operates comparable to a fan. By generating air movement in the water, it regulates pressure using a fan mechanism and practical functioning concept.

In bigger swimming pools, an air blower or centrifugal fans can help with the splash back process by churning and stirring up the filter media both before and during the backwash cycle, ensuring that the media column is free of gaps.

A centrifugal pump for spas, backwashes, and other uses, the AstralPool Cala air blower pump is specifically designed to perform pre-filtration and water flow in swimming pools at a temperature of the water no higher than 45°C. Ensuring a lengthy and exceptional duration.

Technical Specifications:

• Pump body: polypropylene that is fiberglass-reinforced
• Noryl turbine
• Mechanical seal: Graphite and ceramic
• Motor spindle: AISI 316L stainless steel
• Encased motor running at 2850 rpm with IP-55 protection.
• Voltage: 230V/50Hz single phase
• HP range: 1.5 to 4.5 HP
• The pump comes with suction and return connections for glue hoses.
• Suction and reversal at Ø63.
• Maximum flow rate: 39 m3/h
• Maximum working temperature: 45 °C

Recommendations:

• A three-phase must be placed no less than 3.5 meters away from the pool's edge.
• The pump must be pressurized until the water rises to the top of the piping system.
• A pool pump should always be installed below the water level.
